FOOTREST
RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

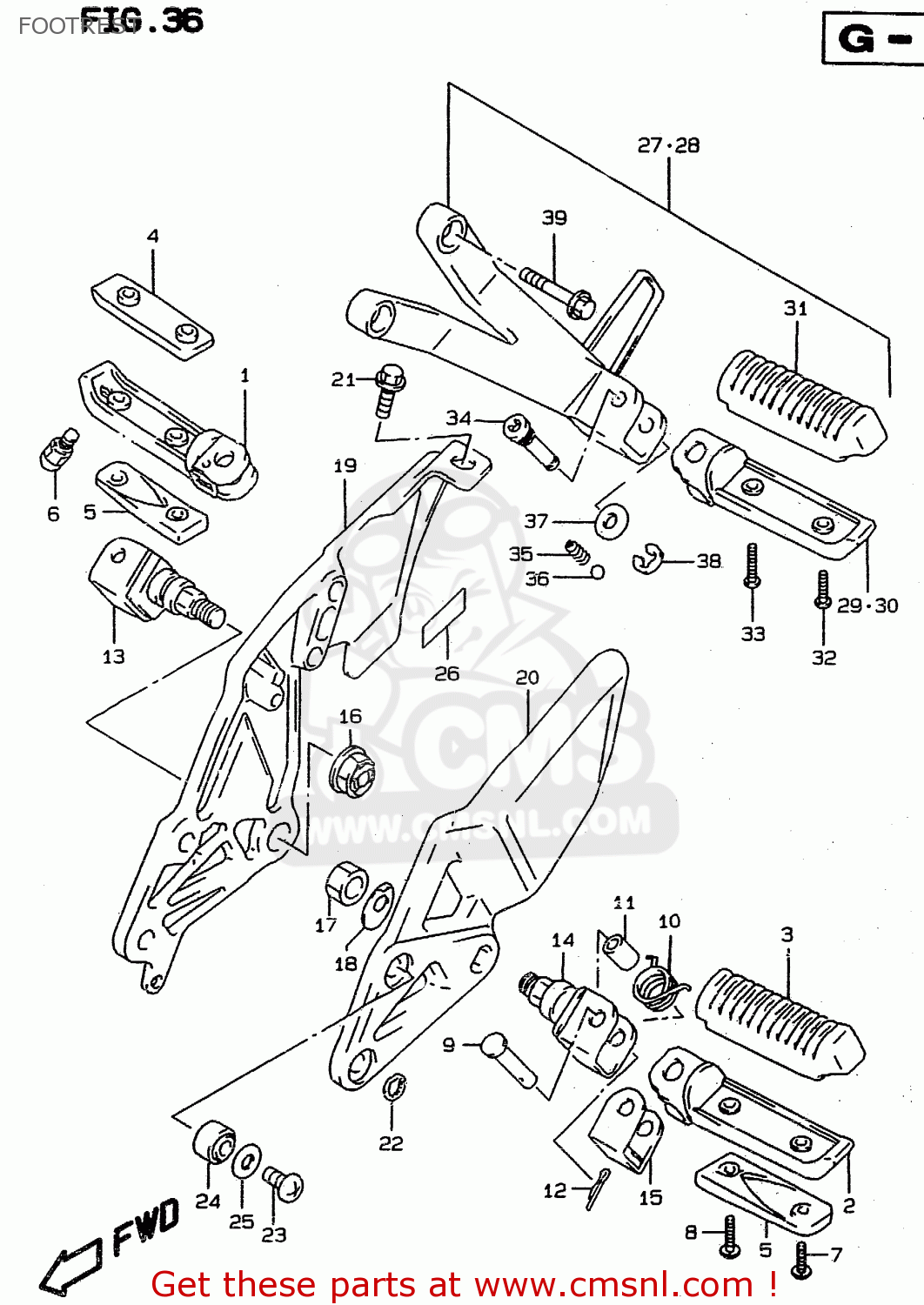

Footrest diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
FOOTREST RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
×
prices are in EUR
ref
part #
description
quantity
1
4351131E00
ref: 1
BAR,FR FOOTREST,R
€ 45.00
2
4352140C00
ref: 2
BAR,FOOTREST,L
€ 37.50
3
4355046E00
ref: 3
RUBBER,FOOTREST
€ 16.50
4
4353446E00
ref: 4
BAR,FR FOOTREST NO.2
€ 21.00
5-1
4353631E00
ref: 5-1
MODEL R/S
BALANCER,FRONT FOOTREST,LOWER
€ 25.50
5-2
4353631E01
ref: 5-2
MODEL T/V/W
BALANCER,FR FOOTREST LWR
€ 25.50
6-1
4357648801
ref: 6-1
MODEL R/S/T/V
SENSOR, RH
€ 0.00
6-2
4357648802
ref: 6-2
MODEL W
SENSOR, RH
€ 0.00
7
0211235303
ref: 7
SCREW
€ 2.50
8
0211235353
ref: 8
SCREW
€ 2.50
9
0920008057
ref: 9
PIN
€ 3.00
10-1
0944819020
ref: 10-1
MODEL R/S
SPRING
€ 3.50
10-2
0944818022
ref: 10-2
MODEL T/V/W
SPRING
€ 3.50
11
0918008149
ref: 11
SPACER(8.1X12X22)
€ 7.00
12
0411125158
ref: 12
PIN 20X15
€ 1.50
13
4353031E10
ref: 13
HOLDER,FRONT FOOTREST
€ 66.50
14
4354031E00
ref: 14
HOLDER,FR FOOTREST
€ 61.50
15
4357031E10
ref: 15
CUSHION,FR FOOTREST
€ 11.50
16
0831931128
ref: 16
NUT 12MM
€ 4.00
17
0831000123
ref: 17
NUT
€ 2.50
18
4321417C01
ref: 18
WASHER,FR FOOTREST
€ 52.50
19
4351121E00
ref: 19
BRACKET,FOOTREST,R
€ 168.00
20
4352121E00
ref: 20
BRACKET,FOOTREST,L
€ 168.00
21
0155008203
ref: 21
BOLT
€ 3.00
22
0916408015
ref: 22
WASHER
€ 3.00
23
0910608129
ref: 23
BOLT(8X25)
€ 5.00
24
0931908025
ref: 24
BUSH
€ 13.50
25-1
0916008021
ref: 25-1
MODEL R/S/T/V
WASHER (8.2X24X1.6)
€ 2.00
25-2
0916008131
ref: 25-2
MODEL W
WASHER (8.5X24X1.6)
€ 2.00
26
3285110D00
ref: 26
PROTECTOR(12X40)
€ 4.50
27
4360031E00
ref: 27
FOOTREST ASSY,PILLION,R
€ 215.00
28
4370031E00
ref: 28
FOOTREST ASSY,PILLION,L
€ 205.00
29
4361040C00
ref: 29
BAR,PILLION FOOTREST,R
€ 49.00
30
4362040C00
ref: 30
BAR,PILLION FOOTREST,L
€ 49.00
31
4355040C11
ref: 31
RUBBER,FOOTREST
€ 16.00
32
0211235163
ref: 32
SCREW
€ 2.50
33
0211235203
ref: 33
SCREW
€ 2.50
34
4364240C00
ref: 34
BOLT,PILLION FOOTREST
€ 5.50
35
0944005003
ref: 35
SPRING
€ 1.50
36
0611107004
ref: 36
BALL
€ 1.50
37-1
0916010031
ref: 37-1
MODEL R/S/T/V
WASHER
€ 2.50
37-2
0916010126
ref: 37-2
MODEL W
WASHER(10.5X24X1.6)
€ 2.50
38
0833211063
ref: 38
E.RING
€ 2.00
39
0910608106
ref: 39
BOLT(8X20)
€ 3.00
