Buy Suzuki RF Parts Online


COWLING BODY (RF900RT/RV)

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

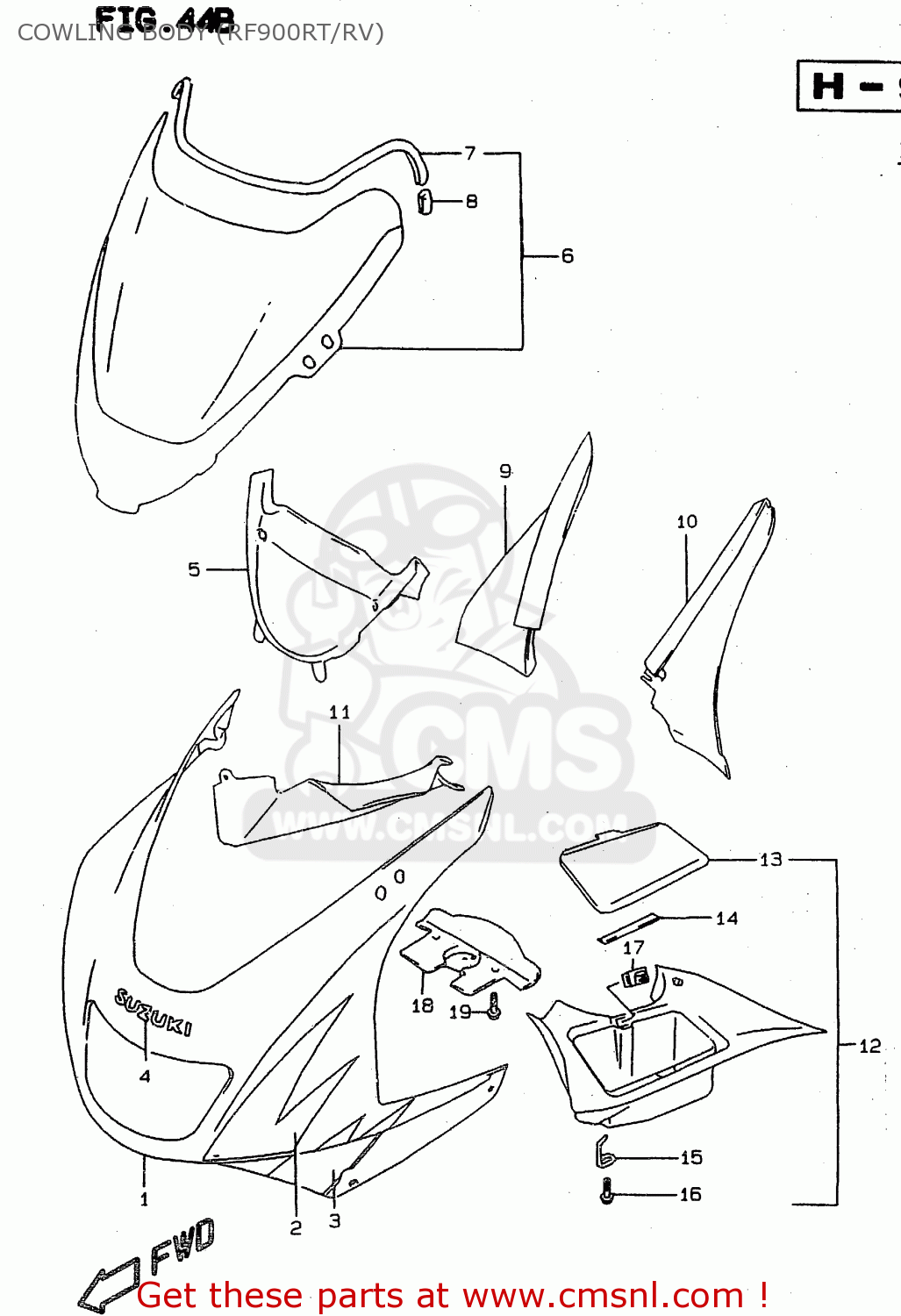

Cowling body (rf900rt/rv) diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

COWLING BODY (RF900RT/RV) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
COWLING BODY (RF900RT/RV) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
COWLING BODY (RF900RT/RV) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
9440031E101HU
ref: 1-1
MODEL T FOR F3C
COWLING ASSEMBLY,BODY (PURPLE)
€ 493.50
1-2
9440031E10Y98
ref: 1-2
MODEL T FOR E6M
COWLING ASSY,BODY(GREEN)
€ 525.00
1-3
9440031E1020F
ref: 1-3
MODEL V FOR 7AY
COWLING ASSEMBLY,BODY
€ 464.00
1-4
9440031E100WP
ref: 1-4
MODEL V FOR G4H
COWLING ASSEMBLY,BODY
€ 518.00
2-1
6827031E10F3K
ref: 2-1
MODEL T FOR 1HU
TAPE SET,BODY FR
€ 54.00
2-2
6827031E10F3L
ref: 2-2
MODEL T FOR Y98
TAPE SET,BODY FR
€ 54.00
2-3
6827031E10G5C
ref: 2-3
MODEL V FOR 20F
TAPE SET,COWL BODY FR
€ 54.00
2-4
6827031E10G5D
ref: 2-4
MODEL V FOR OWP
TAPE SET,COWLING BODY
€ 58.50
3-1
6828031E10F3C
ref: 3-1
MODEL T FOR 1HU
TAPE SET,BODY SIDE
6828031E10F3C
€ 34.00
3-2
6828031E10E6M
ref: 3-2
MODEL T FOR Y98
TAPE SET,BODY SIDE
€ 31.50
3-3
6828031E107AY
ref: 3-3
MODEL V FOR 20F
TAPE SET,COWLING BODY
€ 29.50
3-4
6828031E10G4H
ref: 3-4
MODEL V FOR OWP
TAPE SET,COWLING BODY
€ 35.50
4-1
6818505C100JW
ref: 4-1
MODEL T FOR 1HU
EMBLEM
€ 10.50
4-2
6818505C1013L
ref: 4-2
MODEL T FOR Y98
EMBLEM,COWLING UPR
6818505C1013L
€ 10.50
4-3
6818505C100FP
ref: 4-3
MODEL V
EMBLEM,COWLING UPR
6818505C100FP
€ 10.50
5
9464021E00
ref: 5
PANEL,COWLING CTR
9464021E00
€ 77.00
6
9461021E00
ref: 6
WINDSCREEN SET
9461021E00
€ 172.00
7
9463133C01
ref: 7
L:700->600
MOLDING WINDSCREEN
9463133C01
€ 10.00
8
9463721E00
ref: 8
CLIP,WINDSCREEN MOLDING
9463721E00
€ 4.00
9
9442321E00
ref: 9
PANEL,UPR,R
9442321E00
€ 43.00
10
9442421E00
ref: 10
PANEL,UPR,L
9442421E00
€ 36.50
11
9463021E00
ref: 11
PANEL,SIDE,R
9463021E00
€ 58.50
12
9465021E00
ref: 12
PANEL ASSY,SIDE,L
9465021E00
€ 141.50
13
9442721E00
ref: 13
LID,PANEL BOX
9442721E00
€ 40.50
14
9445621E00
ref: 14
CUSHION,LID
€ 2.50
15
9455321E00
ref: 15
HINGE,PANEL LID
9455321E00
€ 5.50
16
0354115103
ref: 16
SCREW
€ 2.00
17
7317050A00
ref: 17
LOCK,I/P CTR BOX
7317050A00
€ 9.00
18
9445721E10
ref: 18
COVER,COWLING FR LWR
9445721E10
€ 16.00
19
0911606109
ref: 19
BOLT(6X12)
0911606109
€ 1.50
