REAR WHEEL (MODEL R/S)

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

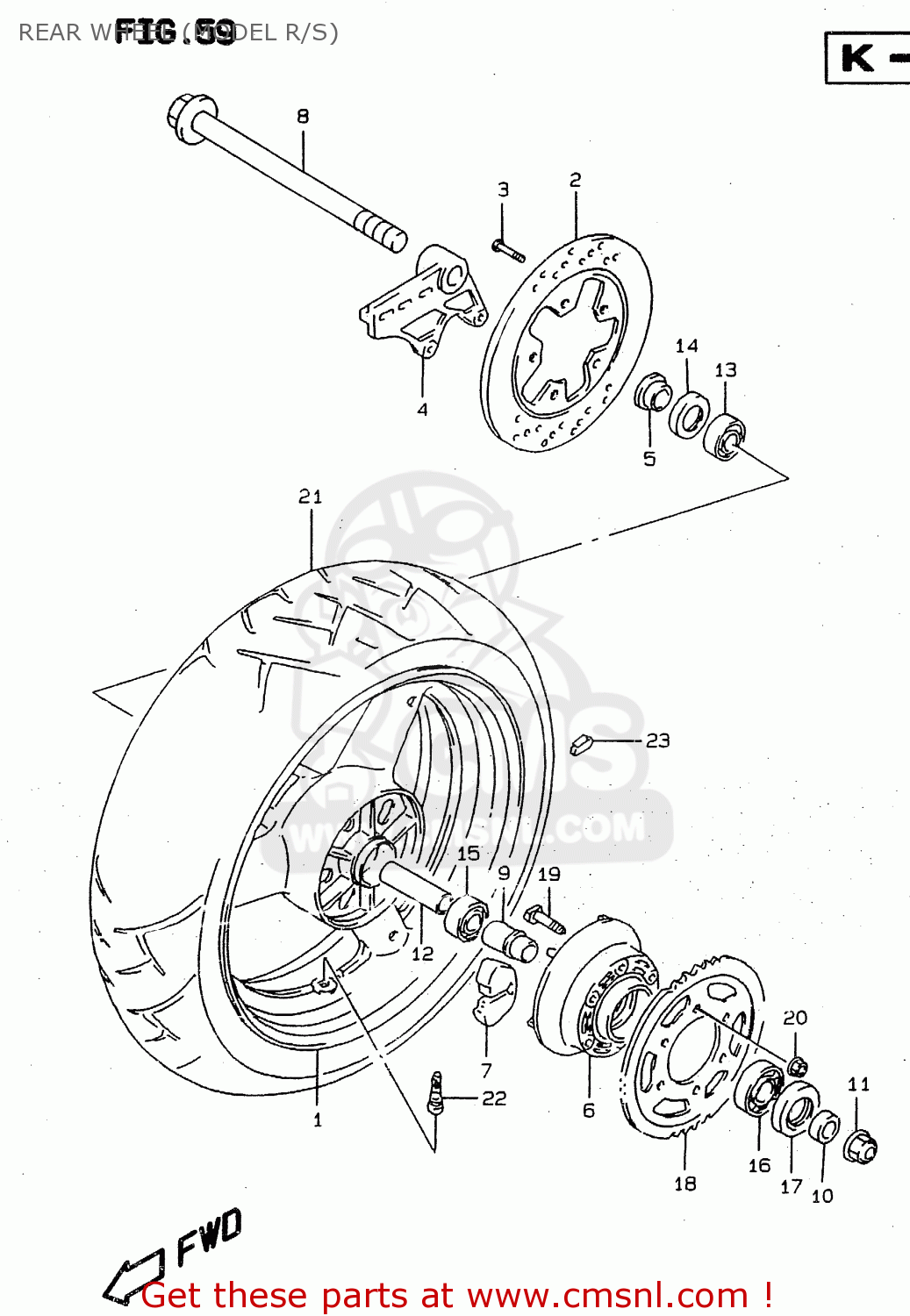

Rear wheel (model r/s) diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

REAR WHEEL (MODEL R/S) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

REAR WHEEL (MODEL R/S) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

6411117E101TU
ref: 1-1
RF900RR FOR 33J

WHEEL,REAR (17XMT5.50)

€ 891.00

1-2

6411117E1035W
ref: 1-2
FOR 19A, 1HU, 1UH

WHEEL,REAR

€ 883.50

1-3

6411117E10Y22
ref: 1-3
RF900RS2 FOR D8A

WHEEL,REAR

€ 979.00

2

6921121E00
ref: 2

DISC,RR BRAKE

€ 249.00

3

0910608125
ref: 3

BOLT 8X33

€ 6.00

4

6972131E00
ref: 4

BRACKET,REAR CALIPER

€ 153.50

5

6474117E00
ref: 5

SPACER,RR AXLE,R

€ 15.50

6

6461117E00
ref: 6

DRUM,RR SPROCKET

€ 156.00

7

6465117E00
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8

6471117E10
ref: 8

AXLE,RR

€ 118.50

9

6473348B00
ref: 9

RETAINER,RR HUB BEARING

€ 25.50

10

6475146E00
ref: 10

SPACER,RR AXLE,L

€ 21.50

11

0915920005
ref: 11

NUT

€ 22.50

12

6473140C00
ref: 12

SPACER,RR WHEEL HUB BEARING

€ 38.00

13

0926220114
ref: 13

BEARING(20X47X14)

€ 26.50

14

0928528001
ref: 14

SEAL,OIL(28X47X7)

€ 11.50

15

0926220042
ref: 15

BEARING(20X47X14)

€ 21.00

16

0926225114
ref: 16

BEARING(25X62X17)

€ 45.00

17

0928535001
ref: 17

SEAL,OIL(35X62X8)

€ 9.00

18

6451161E00
ref: 18

SPROCKET, REAR (NT:43)

€ 0.00

19

0911910037
ref: 19

BOLT

€ 6.00

20

0831931107
ref: 20

NUT

€ 3.00

21-1

6511031E00
ref: 21-1

TIRE,REAR 170/60 ZR17

€ 374.50

21-2

6511031E10
ref: 21-2
MODEL S

TIRE,REAR 170/60 ZR17

€ 374.50

22

4313024A11
ref: 22

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

23-1

5541100A00
ref: 23-1

BALANCER,WHEEL (10G)

€ 6.50

23-2

5541200A01
ref: 23-2

BALANCER,WHEEL (20G)

€ 7.00
