FRONT BRAKE HOSE

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

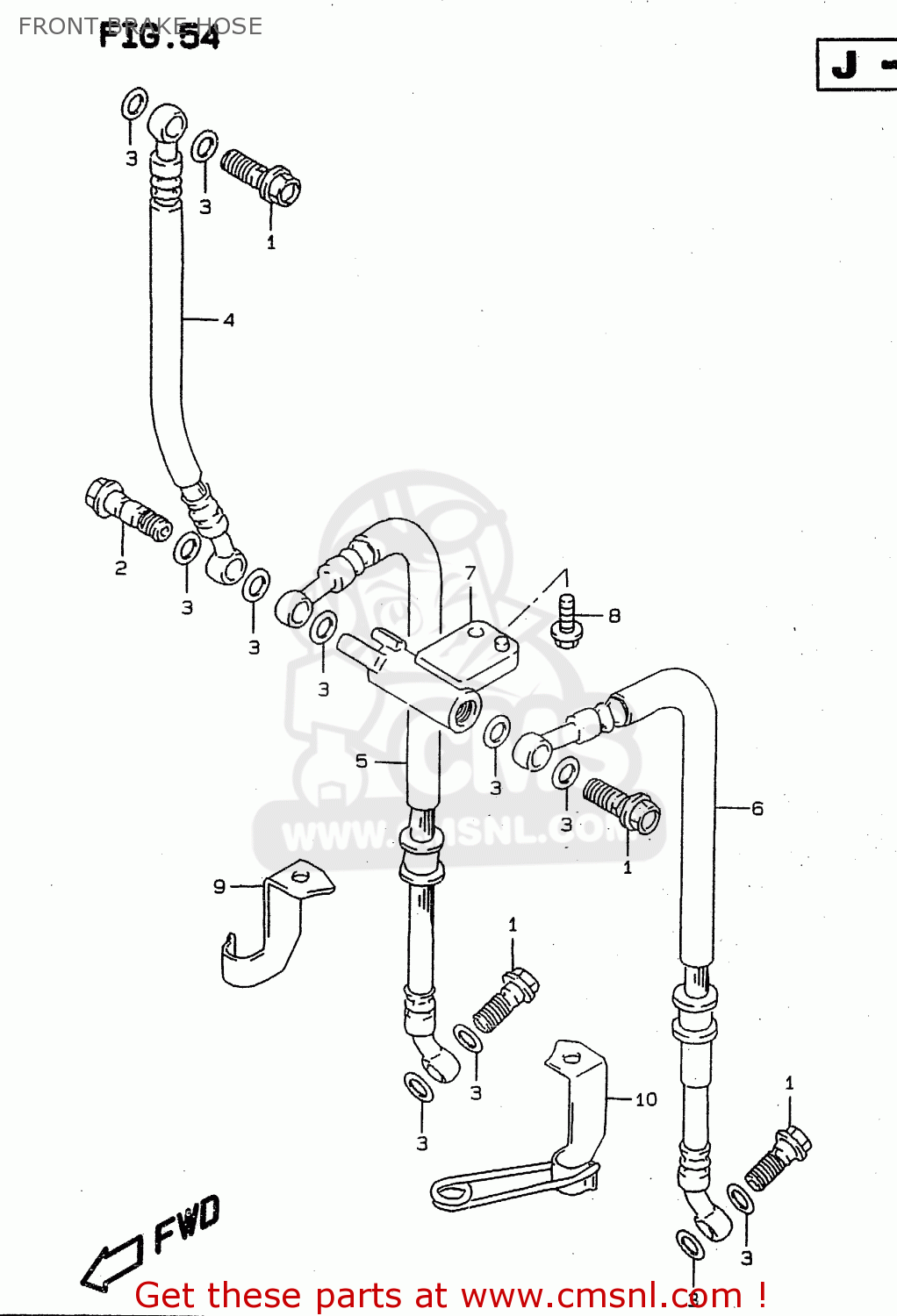

Front brake hose diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

0936010039
ref: 1-1
MODEL R/S

BOLT UNION

€ 6.50

1-2

0936010041
ref: 1-2
MODEL T/V/W

BOLT UNION

€ 6.50

2-1

0936010018
ref: 2-1
MODEL R/S

BOLT UNION

€ 7.00

2-2

0936010043
ref: 2-2
MODEL T/V/W

BOLT UNION

€ 6.50

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

5948021E00
ref: 4

HOSE,FR BRAKE NO.1

€ 68.00

5924031E00
ref: 5

HOSE,FR BRAKE NO.2,R

€ 72.00

5944031E00
ref: 6

HOSE,FR BRAKE NO.2,L

€ 86.00

5949117E00
ref: 7

JOINT,BRAKE HOSE

€ 68.50

0155006163
ref: 8

BOLT

€ 2.50

5926807D00
ref: 9

CLAMP,FR BRAKE HOSE,R

€ 8.00

5926007D00
ref: 10

CLAMP COMP,FRONT BRAKE

€ 17.50
