CYLINDER HEAD (MODEL R/S)

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

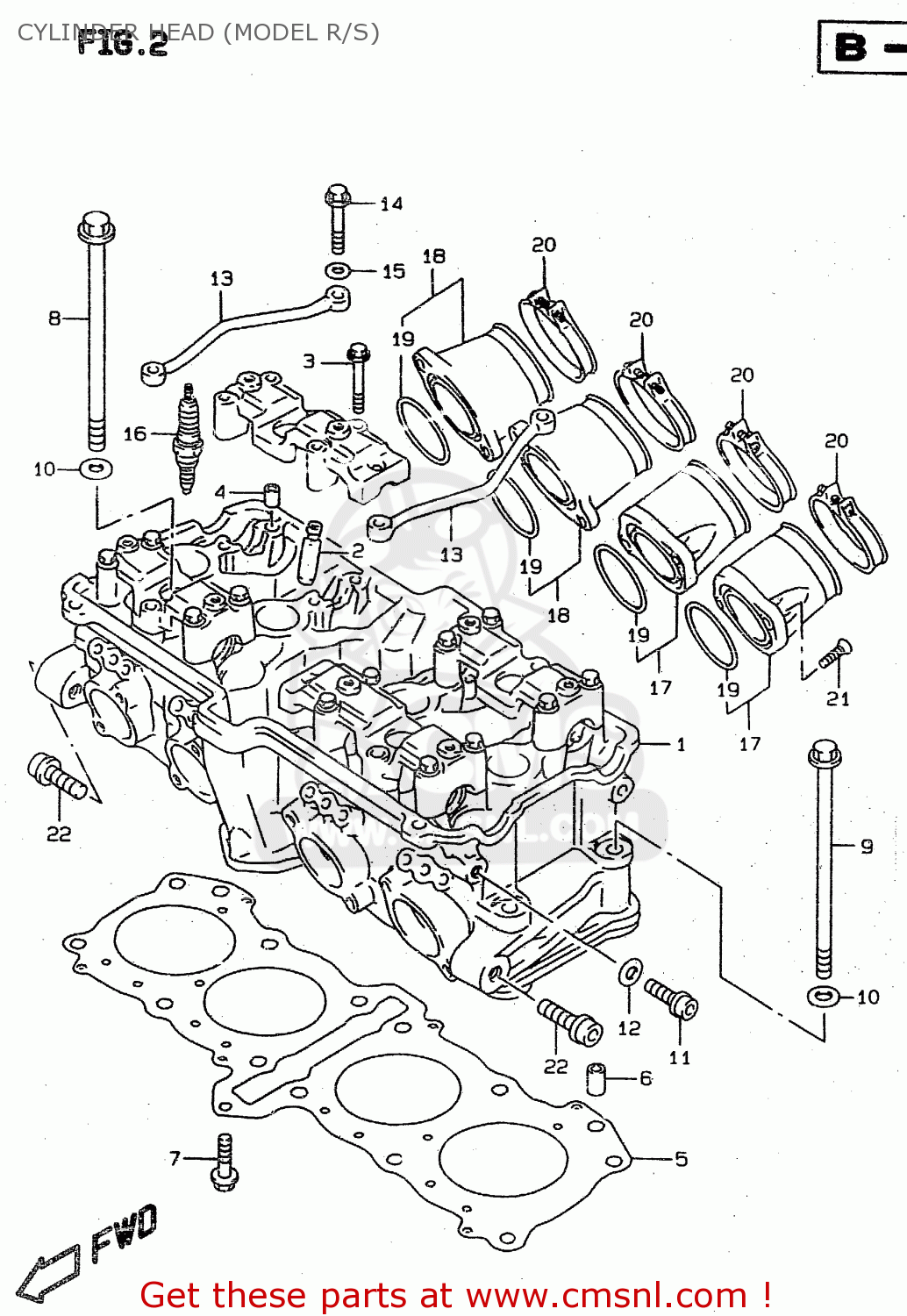

Cylinder head (model r/s) diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

CYLINDER HEAD (MODEL R/S) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
CYLINDER HEAD (MODEL R/S) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
CYLINDER HEAD (MODEL R/S) RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1110031E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
1110031E00
€ 2,155.50
1-2
1110031E10
ref: 1-2
E18, E39
HEAD ASSEMBLY,CYLINDER
€ 1,588.00
2
1111517E70
ref: 2
GUIDE,VALVE
1111517E70
€ 23.00
3
0910306165
ref: 3
BOLT(6X45)
0910306165
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
1114131E00
ref: 5
GASKET,CYLINDER HEAD
1114131E00
€ 82.50
6
0421111189
ref: 6
PIN
0421111189
€ 2.00
7
0155006303
ref: 7
BOLT
0155006303
€ 2.50
8
0910310270
ref: 8
BOLT 10X175
€ 13.50
9
0910310276
ref: 9
BOLT(10X175)
0910310276
€ 13.50
10
0916010082
ref: 10
WASHER(10.5X19X2)
0916010082
€ 2.00
11
0712008163
ref: 11
BOLT
0712008163
€ 3.00
12
0916808015
ref: 12
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
13
1113117E00
ref: 13
PIPE,CYLINDER HEAD OIL
€ 41.00
14
0910306026
ref: 14
BOLT(6X39)
0910306026
€ 2.00
15
0832201063
ref: 15
WASHER
0832201063
€ 2.00
16-1
0948200458
ref: 16-1
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
16-2
0948200459
ref: 16-2
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
16-3
0948200456
ref: 16-3
OPT
PLUG,SPARK(CR8E)
0948200456
€ 7.00
16-4
0948200460
ref: 16-4
OPT
PLUG,SPARK(CR10E)
0948200460
€ 8.50
16-5
0948200457
ref: 16-5
OPT
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
16-6
0948200461
ref: 16-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
17-1
1310131E00
ref: 17-1
PIPE ASSEMBLY,INTAKE
1310131E00
€ 46.00
17-2
1310131E10
ref: 17-2
E22
PIPE, INTAKE NO. 1
€ 44.50
18-1
1310231E00
ref: 18-1
PIPE ASSEMBLY,INTAKE
€ 42.00
18-2
1310231E10
ref: 18-2
E22
PIPE, INTAKE NO. 2
€ 37.00
19
0928042003
ref: 19
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
20
0940252208
ref: 20
CLAMP
0940252208
€ 5.50
21
0912606014
ref: 21
SCREW(6X16)
0912606014
€ 2.00
22
0712010303
ref: 22
BOLT
€ 4.00
