FRAME

RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

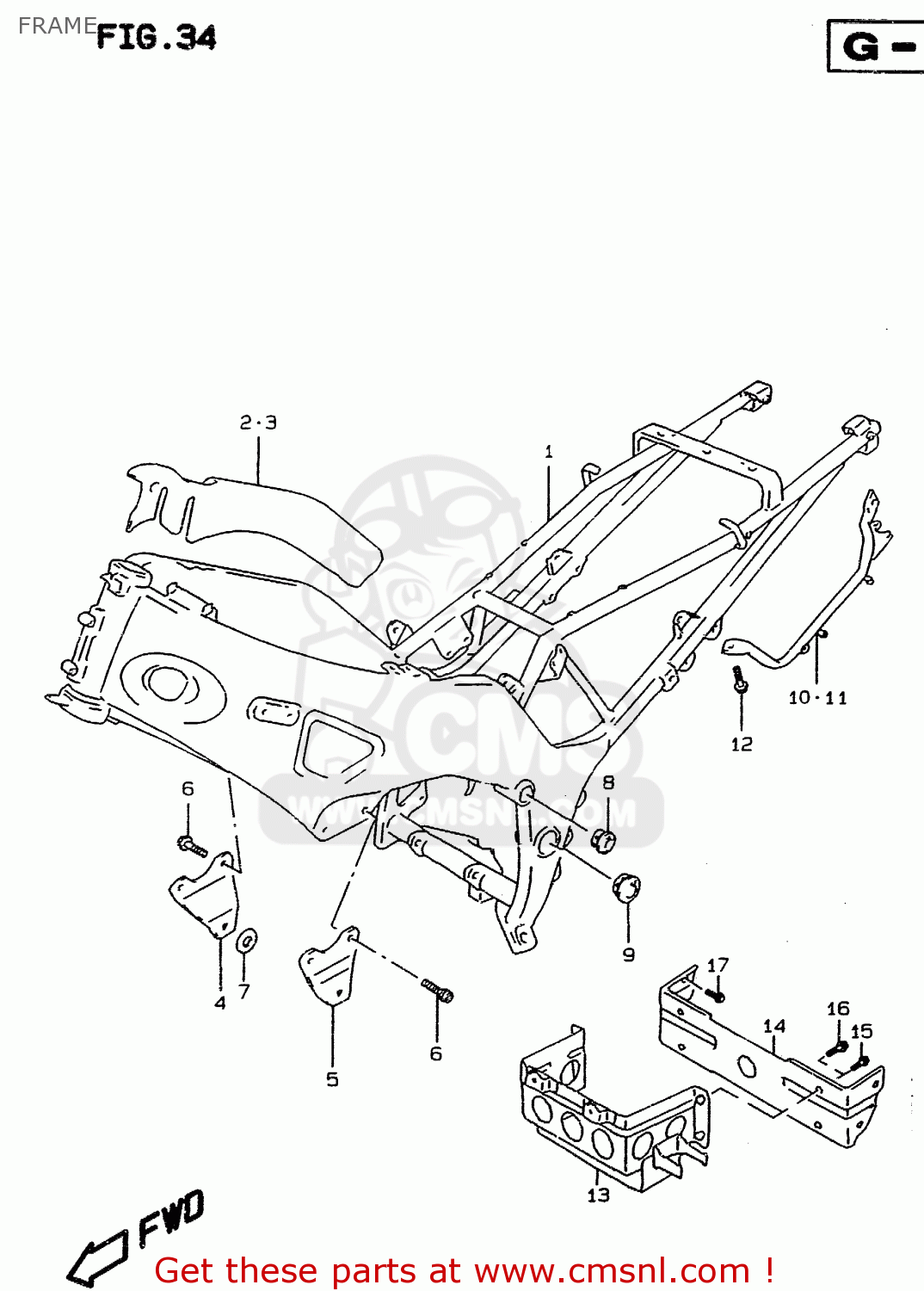

Frame diagram RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

FRAME RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

FRAME RF900R 1997 (V) (E02 E04 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4110031E0019A
ref: 1-1
RF900RR

FRAME COMP

€ 1,699.50

1-2

4110031E0033J
ref: 1-2
RF900RR

FRAME COMP

€ 2,486.00

1-3

4110031E2019A
ref: 1-3
RF900RS

FRAME COMP

€ 2,525.00

1-4

4110031E201HU
ref: 1-4
RF900RS

FRAME COMP

€ 1,276.50

1-5

4110031E201UH
ref: 1-5
RF900RS

FRAME

€ 1,276.50

1-6

4110031E200FP
ref: 1-6
RF900RS2, RF900RT, R

FRAME COMP

€ 1,276.50

1-7

4110031E210FP
ref: 1-7
RF900RW

FRAME(SILVER)

€ 1,276.50

2

4189121E02
ref: 2

SHIELD,FRAME HEAT,RIGHT

€ 43.00

3

4189221E02
ref: 3

SHIELD,FRAME HEAT,L

€ 40.50

4

4191131E01
ref: 4

PLATE,ENG MTG,R

€ 22.00

5

4192131E01
ref: 5

PLATE,ENG MTG,L

€ 22.00

6

0712010303
ref: 6

BOLT

€ 4.00

7-1

0916010070
ref: 7-1
MODEL R/S/T/V

WASHER (10.5X38X1.6)

€ 2.00

7-2

0916010131
ref: 7-2
MODEL W

WASHER(10.5X38X1.6)

€ 2.00

8

4358547D01
ref: 8

CAP,FRAME BOSS,L

€ 9.50

9

4358521E00
ref: 9

CAP,FRAME PIVOT

€ 9.00

10-1

4397031E00
ref: 10-1

GRIP, REAR RH

€ 67.00

10-2

4397031E10
ref: 10-2
E39

GRIP COMP,REAR,RIGHT

€ 73.50

11-1

4398031E00
ref: 11-1

GRIP,RR,L

€ 68.50

11-2

4398031E10
ref: 11-2
E39

GRIP,RR,L

€ 0.00

12

0155008123
ref: 12

BOLT

€ 3.50

13-1

4154021E00
ref: 13-1
MODEL R

HOLDER COMP,BATTERY

€ 43.00

13-2

4154021E11
ref: 13-2
MODEL S/T/V/W

HOLDER,BATTERY

€ 43.00

14

4156121E00
ref: 14

BRACKET,BATTERY HOLDER

€ 27.50

15

0214206123
ref: 15
MODEL R

SCREW 6X12

€ 2.00

16

0155006123
ref: 16
MODEL S/T/V/W

BOLT

€ 2.50

17

0155006163
ref: 17

BOLT

€ 2.50
