FRAME

RG125A 1988 (J) (E04 E15 E17 E18 E30)

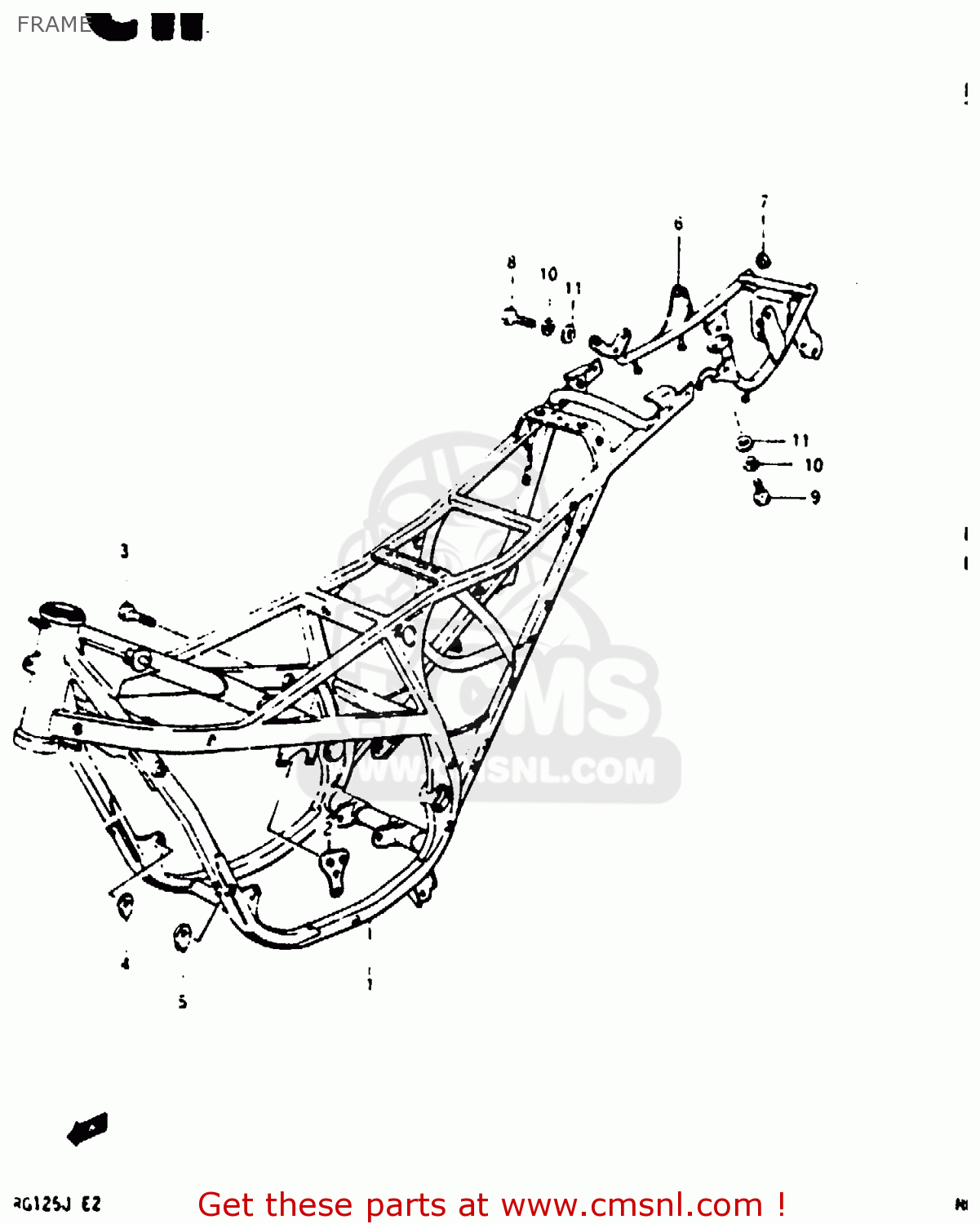

Frame diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)

FRAME RG125A 1988 (J) (E04 E15 E17 E18 E30)
FRAME RG125A 1988 (J) (E04 E15 E17 E18 E30)
FRAME RG125A 1988 (J) (E04 E15 E17 E18 E30)
prices are in EUR
ref
part #
description
quantity
1-1
4110036A4113L
ref: 1-1
~F.NO. 101567
FRAME (SILVER)
€ 0.00
1-2
4110036A4213L
ref: 1-2
F.NO. 101568~
FRAME (SILVER)
€ 0.00
1-3
4110036A0113L
ref: 1-3
E4, E21, E24, E30, E
FRAME (SILVER)
€ 0.00
1-4
4110036A1113L
ref: 1-4
E15
FRAME (SILVER)
€ 0.00
1-5
4110036A2113L
ref: 1-5
E17
FRAME (SILVER)
€ 0.00
1-6
4110036A3113L
ref: 1-6
E18
FRAME (SILVER)
€ 474.50
2
4191036A03
ref: 2
PLATE, ENGINE MOUNT
€ 8.50
3
0910008249
ref: 3
BOLT
€ 0.00
4
0918110012
ref: 4
SHIM (T:0.3)
€ 0.00
5
0918110013
ref: 5
SHIM (T:0.5)
€ 0.00
6
4397036A00
ref: 6
GRIP, FRAME HANDLE
€ 78.50
7
0925012005
ref: 7
PLUG(OD:17)
0925012005
€ 3.00
8
0110706207
ref: 8
BOLT
0110706207
€ 2.00
9
0110706127
ref: 9
BOLT
0110706127
€ 2.00
10
0832121067
ref: 10
WASHER,LOCK
0832121067
€ 2.50
11
0832221067
ref: 11
WASHER
0832221067
€ 2.00
