FUEL COCK

RG125A 1988 (J) (E04 E15 E17 E18 E30)

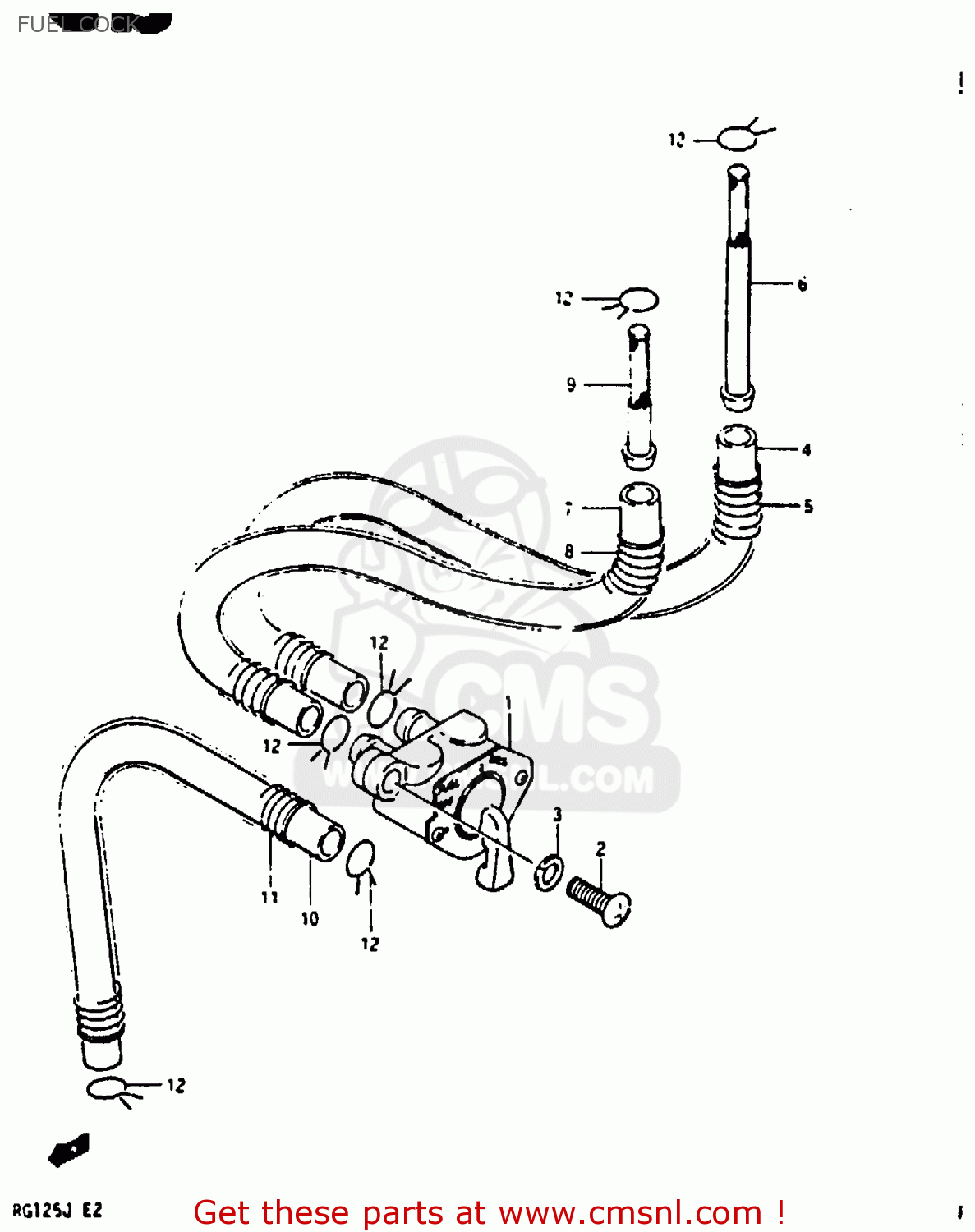

Fuel cock diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)

FUEL COCK RG125A 1988 (J) (E04 E15 E17 E18 E30)

FUEL COCK RG125A 1988 (J) (E04 E15 E17 E18 E30)

prices are in EUR

ref

part #

description

quantity

1

4430036A00
ref: 1

COCK ASSY,FUEL

€ 44.00

2

0211205168
ref: 2

SCREW

€ 2.50

3

0832121057
ref: 3

LOCK WASHER

€ 2.00

4

0935270103300
ref: 4

HOSE

€ 8.00

5

0944013043
ref: 5

SPRING

€ 14.50

6

4432216700
ref: 6

FILTER,FUEL

€ 4.00

7

0934307174
ref: 7

HOSE 7X10.2X210

€ 7.50

8

0944013016
ref: 8

SPRING

€ 14.50

9

4432227001
ref: 9

FILTER,FUEL

€ 4.50

10

0935270103300
ref: 10

HOSE

€ 8.00

11

0944013041
ref: 11

SPRING

€ 3.50

12

0940110410
ref: 12

CLIP

€ 1.50
