WATER PUMP
RG125A 1988 (J) (E04 E15 E17 E18 E30)

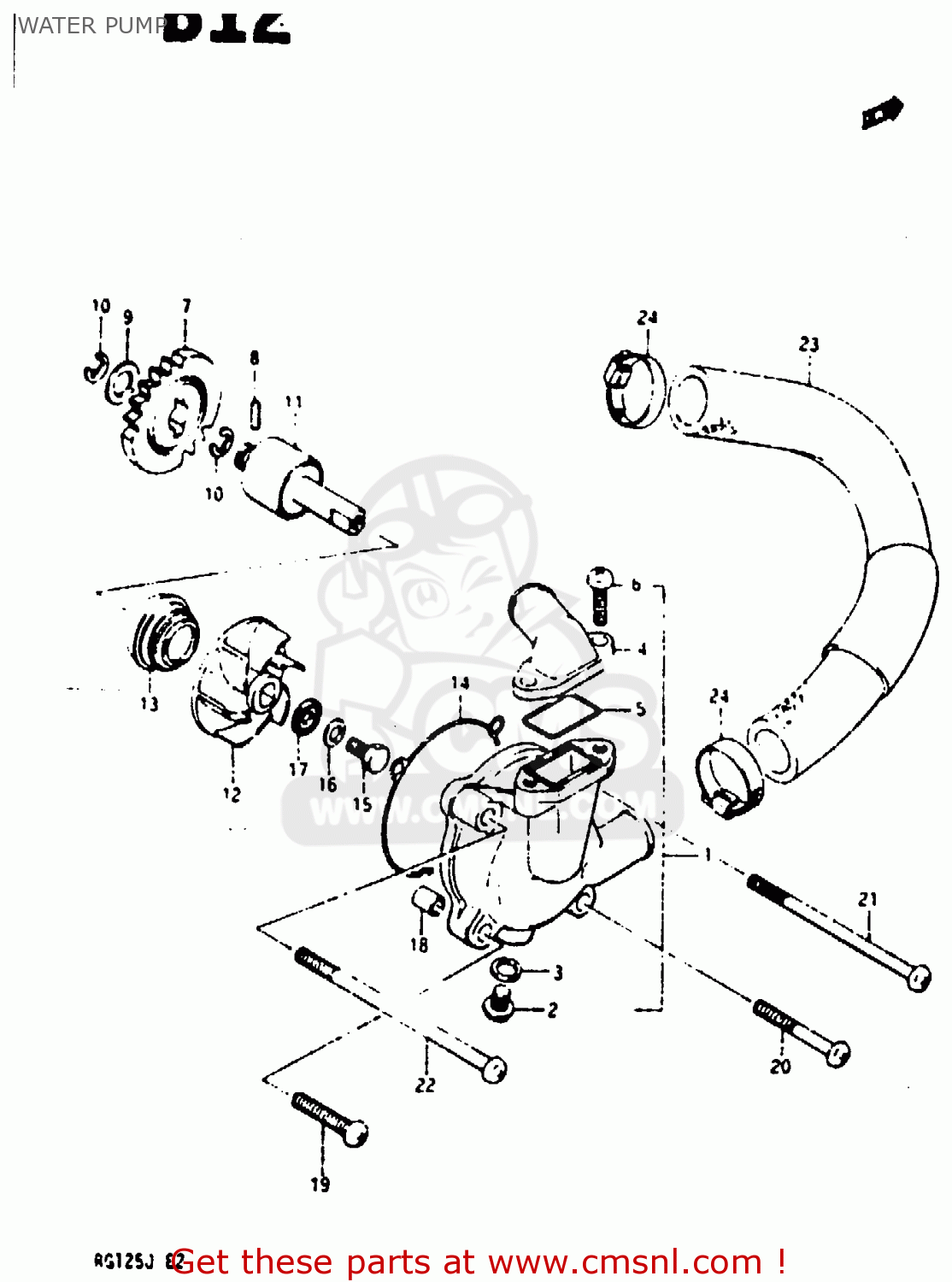

Water pump diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)
WATER PUMP RG125A 1988 (J) (E04 E15 E17 E18 E30)
×
prices are in EUR
ref
part #
description
quantity
1
1741036A00
ref: 1
CASE, WATER PUMP
€ 90.00
2
1741514300
ref: 2
BOLT,DRAIN
€ 2.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
€ 1.00
4
1741214300
ref: 4
CONNECTOR
€ 23.50
5
1741414300
ref: 5
O RING,WATER PUMP CONNECTOR
€ 3.00
6
0211206164
ref: 6
SCREW
€ 2.00
7
1746101A10
ref: 7
GEAR, DRIVEN (NT:25)
€ 26.50
8
0926105007
ref: 8
PIN(5.1X18.8)
€ 1.00
9-1
0822112223
ref: 9-1
SHIM
€ 0.00
9-2
0822112224
ref: 9-2
SHIM
€ 2.00
9-3
0822112225
ref: 9-3
SHIM
€ 2.00
10
0833211106
ref: 10
E RING
€ 1.50
11
1751001A02
ref: 11
FROM 17510-01A01
SHAFT,WATER PUMP
€ 85.50
12
1749114110
ref: 12
IMPELLER,WATER PUMP
€ 17.00
13
1747014100
ref: 13
SEAL,WATER PUMP SHAFT
€ 21.50
14
1743536A00
ref: 14
O RING,WATER PUMP CASE
€ 6.50
15
0910006099
ref: 15
BOLT(6X13)
€ 2.00
16
0916406006
ref: 16
WASHER
€ 2.50
17
0916806025
ref: 17
FROM 09168-06016
GASKET(6X15X2.2) (NAS)
€ 3.00
18
0421109129
ref: 18
PIN
€ 2.00
19
0211206305
ref: 19
SCREW
€ 2.50
20
0211206404
ref: 20
SCREW
€ 2.00
21
0211206855
ref: 21
SCREW 6X85
€ 2.00
22
0211206955
ref: 22
SCREW
€ 2.50
23
1785836A00
ref: 23
HOSE, W.P OUTLET
€ 21.00
24
0940225502
ref: 24
CLAMP
€ 8.50
