MAGNE TO
RG125A 1988 (J) (E04 E15 E17 E18 E30)

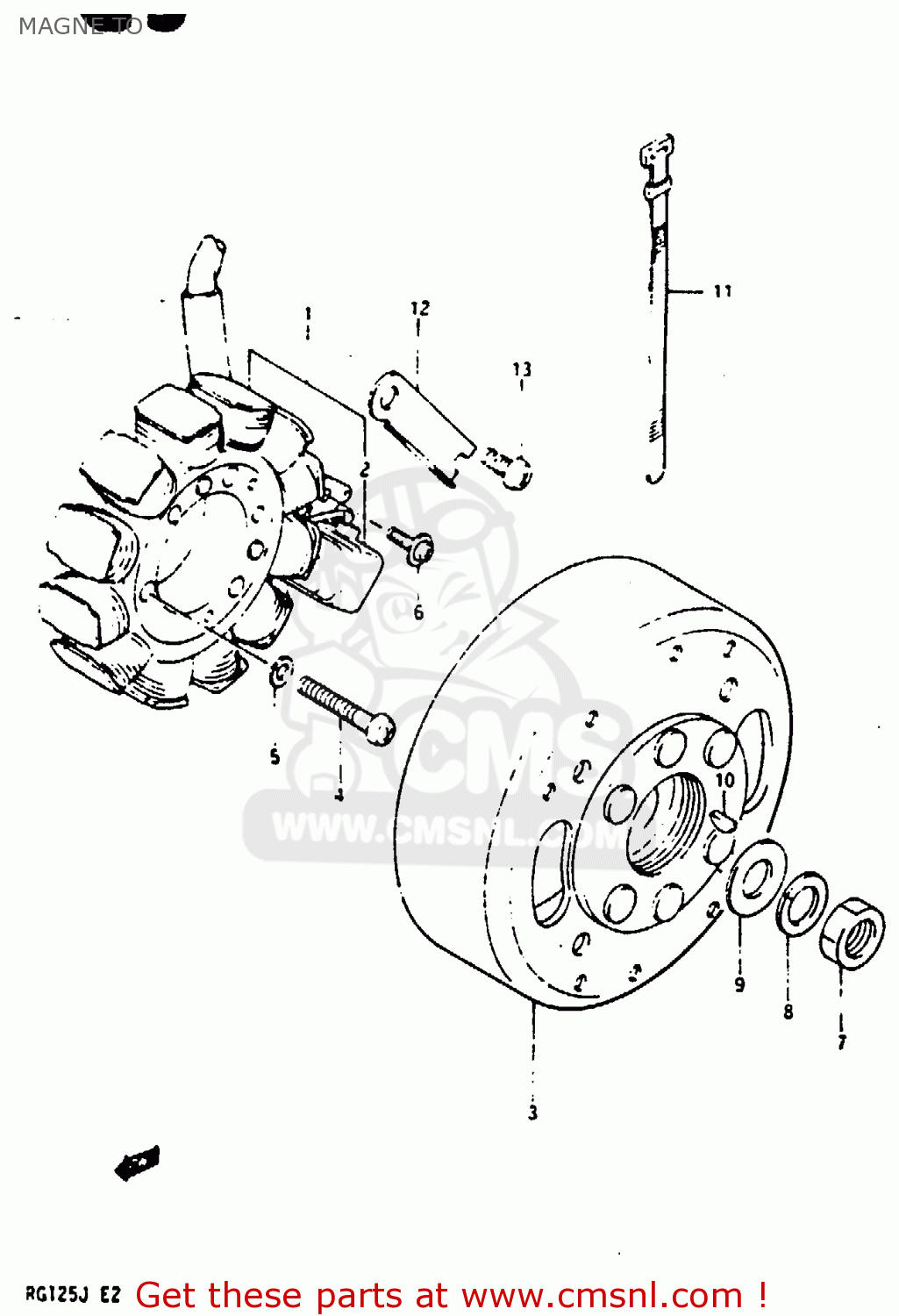

Magne to diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)
MAGNE TO RG125A 1988 (J) (E04 E15 E17 E18 E30)
×
prices are in EUR
ref
part #
description
quantity
1
3210136A00
ref: 1
STATOR ASSY
€ 256.00
2
3215036A00
ref: 2
TO 32150-18A00
SENSOR ASSY, TIMING
€ 65.50
3
3210236A00
ref: 3
ROTOR
€ 151.50
4
0211205308
ref: 4
SCREW
€ 1.50
5
0832121057
ref: 5
LOCK WASHER
€ 2.00
6
0215204128
ref: 6
SCREW
€ 2.00
7
0914010003
ref: 7
NUT (10MM)
€ 3.50
8
0832121107
ref: 8
WASHER,LOCK,10
€ 2.00
9
0832221108
ref: 9
WASHER
€ 2.50
10
0834131039
ref: 10
KEY
€ 2.00
11
0940714403
ref: 11
CLAMP(L:125)
€ 2.50
12
3237138A10
ref: 12
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
13
0211205107
ref: 13
SCREW
€ 2.00
