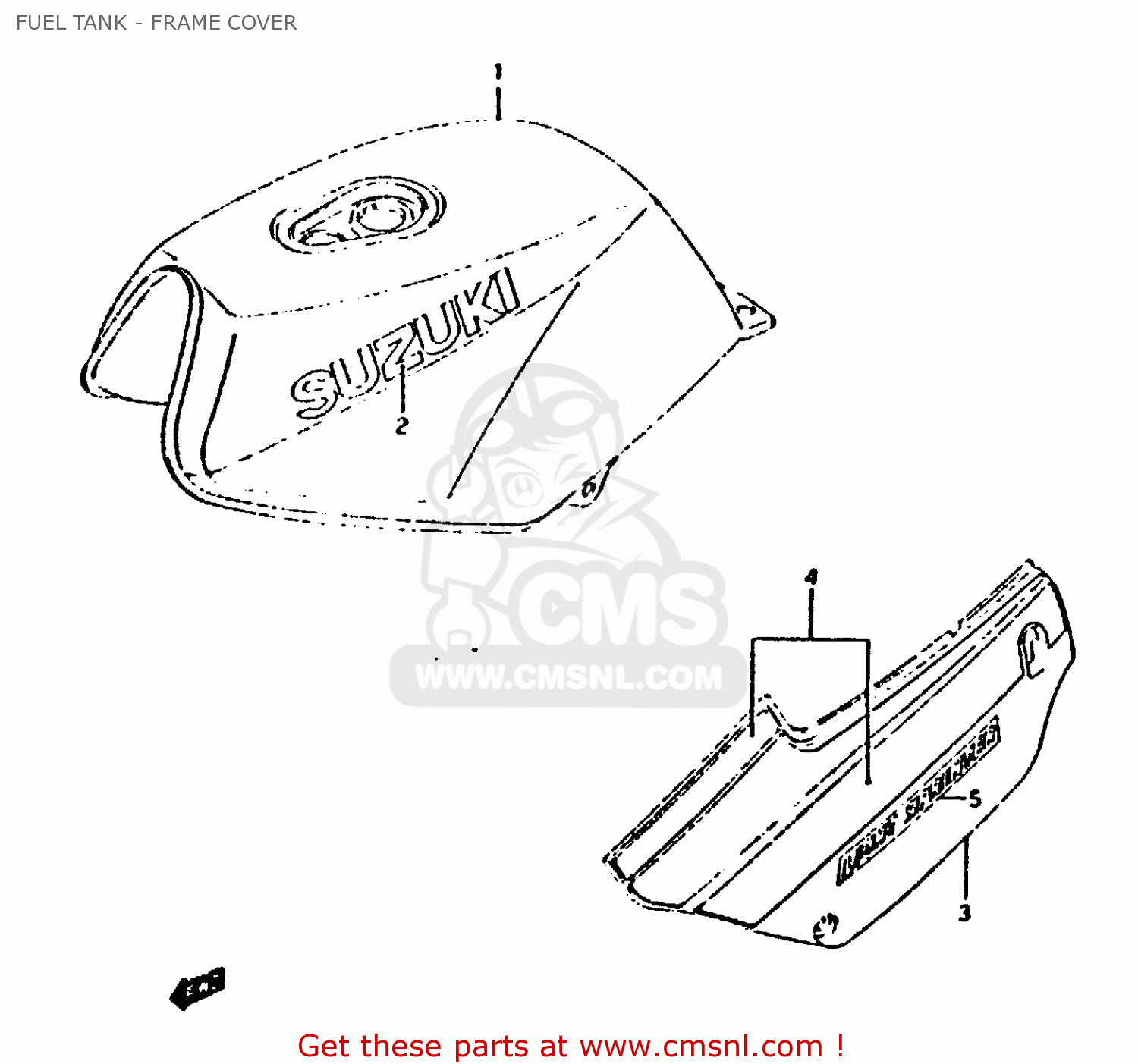

FUEL TANK - FRAME COVER - RG125A 1988 (J) (E04 E15 E17 E18 E30)

ref

part #

description

quantity

1

4410036A703UA
ref: 1

TANK ASSY, FUEL

€ 340.50

2

6811143400064
ref: 2

EMBLEM

€ 10.00

3-1

4711037A1030H
ref: 3-1

COVER, FRAME RH (WHITE)

€ 0.00

3-2

4721037A1030H
ref: 3-2

COVER, FRAME LH (WHITE)

€ 327.50

4-1

6813036A70C09
ref: 4-1

TAPE SET, RH

€ 0.00

4-2

6814036A70C09
ref: 4-2

TAPE SET, LH

€ 0.00

5

6813136A60F82
ref: 5

EMBLEM

€ 0.00

6-2

0948200233111
ref: 6-2

SPARK PLUG (ND, W27ESR)

€ 10.50

6-3

0948200160
ref: 6-3
RG125CG/CH E4, E24,

SPARK PLUG W27ES

€ 9.00

6-4

0948200351
ref: 6-4
RG125CG/CH E4, E24,

SPARK PLUG B9ES

€ 2.50

6-5

0948200348
ref: 6-5
RG125UCG/UCH/UJ/AUJ/

PLUG,SPARK(BR8ES)

€ 12.50

6-6

0948200247111
ref: 6-6
RG125UCG/UCH/UJ/AUJ/

PLUG,SPARK(W24ESR)

€ 3.50

6-7

0948200091
ref: 6-7
RG125UCG/UCH/UJ/AUJ/

PLUG,SPARK

€ 3.00

6-8

0948200092
ref: 6-8
RG125UCG/UCH/UJ/AUJ/

PLUG,SPARK(W24ES)

€ 3.50

7-1

1121036A00
ref: 7-1

CYLINDER

€ 441.00

7-2

1121036A10
ref: 7-2
MODEL J E18

CYLINDER

€ 451.00

8-1

1124136A00
ref: 8-1

GASKET, CYLINDER (MCA)

€ 7.50

8-2

1124136A00H17
ref: 8-2
E17

GASKET,CYLINDER (NAS)

€ 7.50

9

0142106358
ref: 9

STUD BOLT

€ 2.00

10

0142106408
ref: 10

STUD BOLT

€ 2.50

11

0142108258
ref: 11

STUD 8X25

€ 2.50

12

0142108358
ref: 12

STUD BOLT

€ 2.00

13

0831616088
ref: 13

NUT

€ 2.50

14

0915906107
ref: 14

NUT

€ 0.00

15

0421111169
ref: 15

PIN

€ 2.00

16

1125636A01
ref: 16

VALVE, EXHAUST

€ 95.50

17

1124536A01
ref: 17

SPRING,EXHAUST VALVE

€ 5.50

18

0928029003
ref: 18

O RING(D:2.4,ID:28.8)

€ 2.50

19

1126336A01
ref: 19

HOLDER, EXHAUST VALVE

€ 73.00

20

0928215005
ref: 20

SEAL,OIL(15X24X5)

€ 5.50

21

3397036A00
ref: 21

SOLENOID ASSY

€ 246.00

22-1

3771236A00
ref: 22-1

GASKET, SOLENOID (MCA)

€ 2.00

22-2

3771236A00H17
ref: 22-2
E17

GASKET, SOLENOID (NA) (NAS)

€ 2.00

23

0154706167
ref: 23

BOLT

€ 2.00

24

0940408413
ref: 24

CLAMP

€ 3.50

25

1125836A00
ref: 25
RG125UCG/UCH/UJ/AUJ/

CAP

€ 57.00

26

0928025004
ref: 26
RG125UCG/UCH/UJ/AUJ/

O RING(D:2.4,ID:24.7)

€ 2.00

27

0154706167
ref: 27
RG125UCG/UCH/AUJ/BUJ

BOLT

€ 2.00

28

1315036A00
ref: 28

VALVE ASSY,REED

€ 110.00

29

1315214500
ref: 29

STOPPER,REED VALVE

€ 7.00

30

1315316700
ref: 30

VALVE,REED

€ 7.50

31

1315436A00
ref: 31

SCREW

€ 2.00

32-1

1315614500
ref: 32-1

GASKET,REED VALVE (MCA)

€ 7.00

32-2

1315614500H17
ref: 32-2
E17

GASKET,REED VALVE (NAS)

€ 7.00

33

0211206167
ref: 33

SCREW

€ 2.50

34

1311046900
ref: 34

PIPE,INTAKE

€ 28.50

35

0940246208
ref: 35

CLAMP

€ 4.50

36

0110706165
ref: 36

BOLT 6X16

€ 2.00

37

0832121064
ref: 37

WASHER,LOCK

€ 2.00

38

1767001A00
ref: 38

THERMOSTAT,WATER 65 DEG

€ 35.00

39

1766136A00
ref: 39

COVER,THERMOSTAT

€ 38.50

40

0211206208
ref: 40

SCREW

€ 2.00

41

1787236A01
ref: 41

CONNECTOR,WATER HOSE

€ 45.50

42

0928020006
ref: 42

O RING(D:1.9,ID:19.8)

€ 2.50

43

0211206167
ref: 43

SCREW

€ 2.50

44

3485005A10
ref: 44

GAUGE ASSY,WATER TEMP

€ 104.00

45-1

1140036860
ref: 45-1
OPT

GASKET SET (MCA)

€ 72.50

45-2

1140036860H17
ref: 45-2
E17 OPT

GASKET SET (NA) (NAS)

€ 72.50
