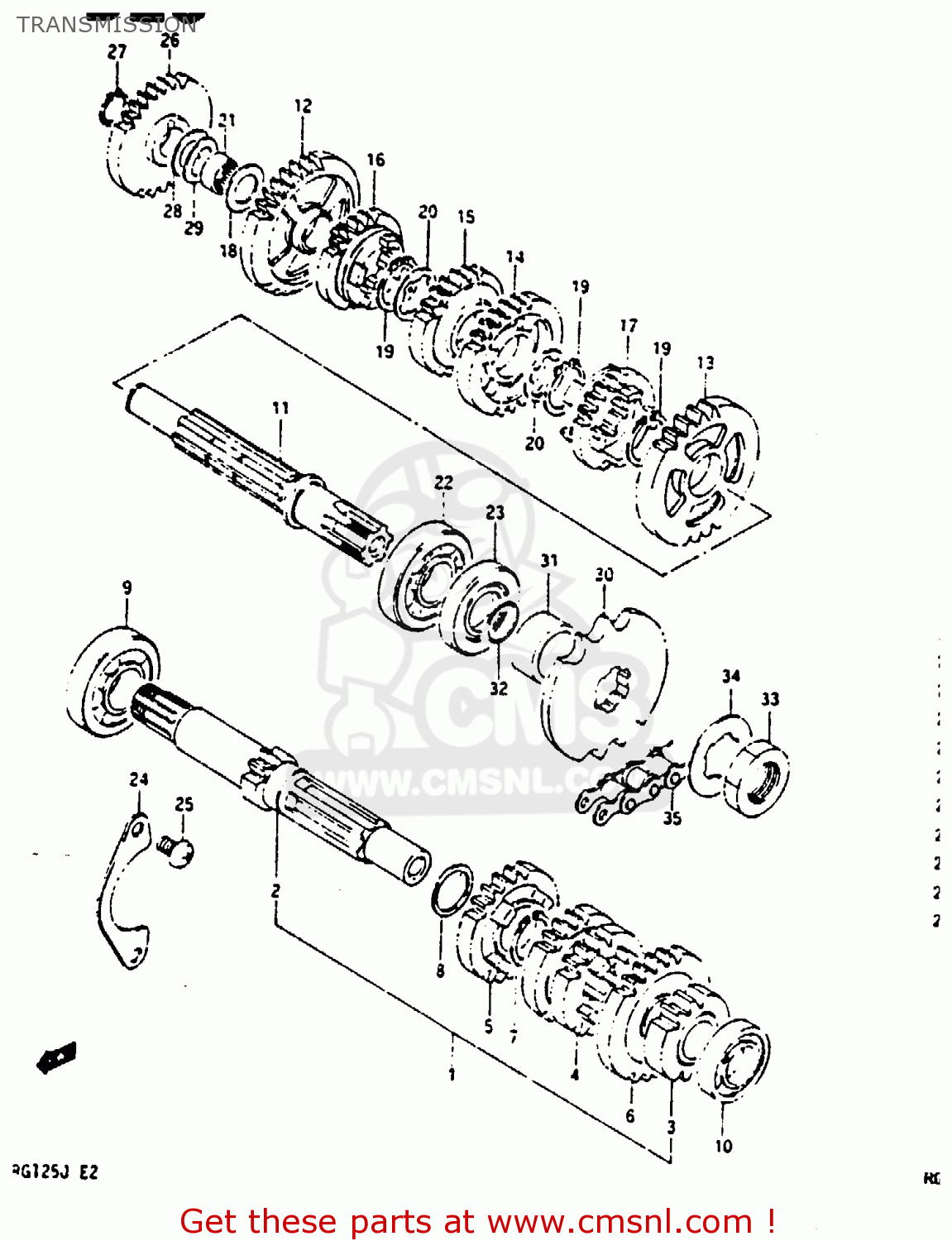

TRANSMISSION

ref

part #

description

quantity

1

2412036A00
ref: 1

COUNTERSHAFT ASSY

€ 0.00

2

2412136A00
ref: 2

COUNTERSHAFT (NT:12)

€ 0.00

3

2422148700
ref: 3

GEAR,2ND DRIVE(NT:14)

€ 29.50

4

2423136A00
ref: 4

GEAR,3RD & 4TH DRIVE

€ 49.50

5

2425148712
ref: 5

GEAR,5TH DRIVE

€ 45.50

6

2426036A00
ref: 6

GEAR, 6TH DRIVE (NT:25)

€ 36.00

7

0938020007
ref: 7

CIRCLIP

€ 3.00

8

0821120261
ref: 8

WASHER

€ 2.50

9

0926220062
ref: 9

BEARING

€ 28.00

10

0811360020
ref: 10

BEARING

€ 14.00

11

2413101A00
ref: 11

DRIVESHAFT

€ 92.50

12

2431001A01
ref: 12

GEAR,1ST DRIVEN

€ 47.00

13

2432148700
ref: 13

GEAR, 2ND DRIVEN (NT:26)

€ 46.50

14

2433148700
ref: 14

GEAR,3RD DRIVE

€ 71.00

15

2434101A01
ref: 15

GEAR,4TH DRIVEN

€ 57.00

16

2435148710
ref: 16

GEAR, 5TH DRIVEN (NT:22)

€ 46.50

17

2436136A00
ref: 17

GEAR, 6TH DRIVEN (NT:21)

€ 50.50

18

0821115261
ref: 18

WASHER,THRUST

€ 2.50

19

0938020007
ref: 19

CIRCLIP

€ 3.00

20

0916720011
ref: 20

WASHER,LOCK

€ 2.50

21

0926315024
ref: 21

BEARING(15X33X12)

€ 50.00

22

0926220062
ref: 22

BEARING

€ 28.00

23

0928327012
ref: 23

SEAL,OIL(27X38X5)

€ 5.50

24

2474136A00
ref: 24

RETAINER, BEARING

€ 0.00

25

0211206128
ref: 25

SCREW 6X12

€ 2.00

26

2626036A01
ref: 26

GEAR,KICK STARTER IDLE

€ 39.50

27

0833131159
ref: 27

CIRCLIP,15MM

€ 2.00

28

0822115205
ref: 28

SHIM

€ 1.50

29

0916416003
ref: 29

WASHER

€ 2.50

30

2751127100
ref: 30

SPROCKET,ENGINE(NT:15)

€ 24.50

31

0918020080
ref: 31

SPACER(20X27X13.1)

€ 9.00

32

0928020001
ref: 32

O RING(D:1,ID:19.5)

€ 2.00

33

0914020001
ref: 33

NUT

€ 3.50

34

0916720006
ref: 34

WASHER,LOCK

€ 3.00

35

2760036A10128
ref: 35

CHAIN, DRIVE (428*128L)

€ 0.00

all assemblies
