FRONT DAMPER
RG125A 1988 (J) (E04 E15 E17 E18 E30)

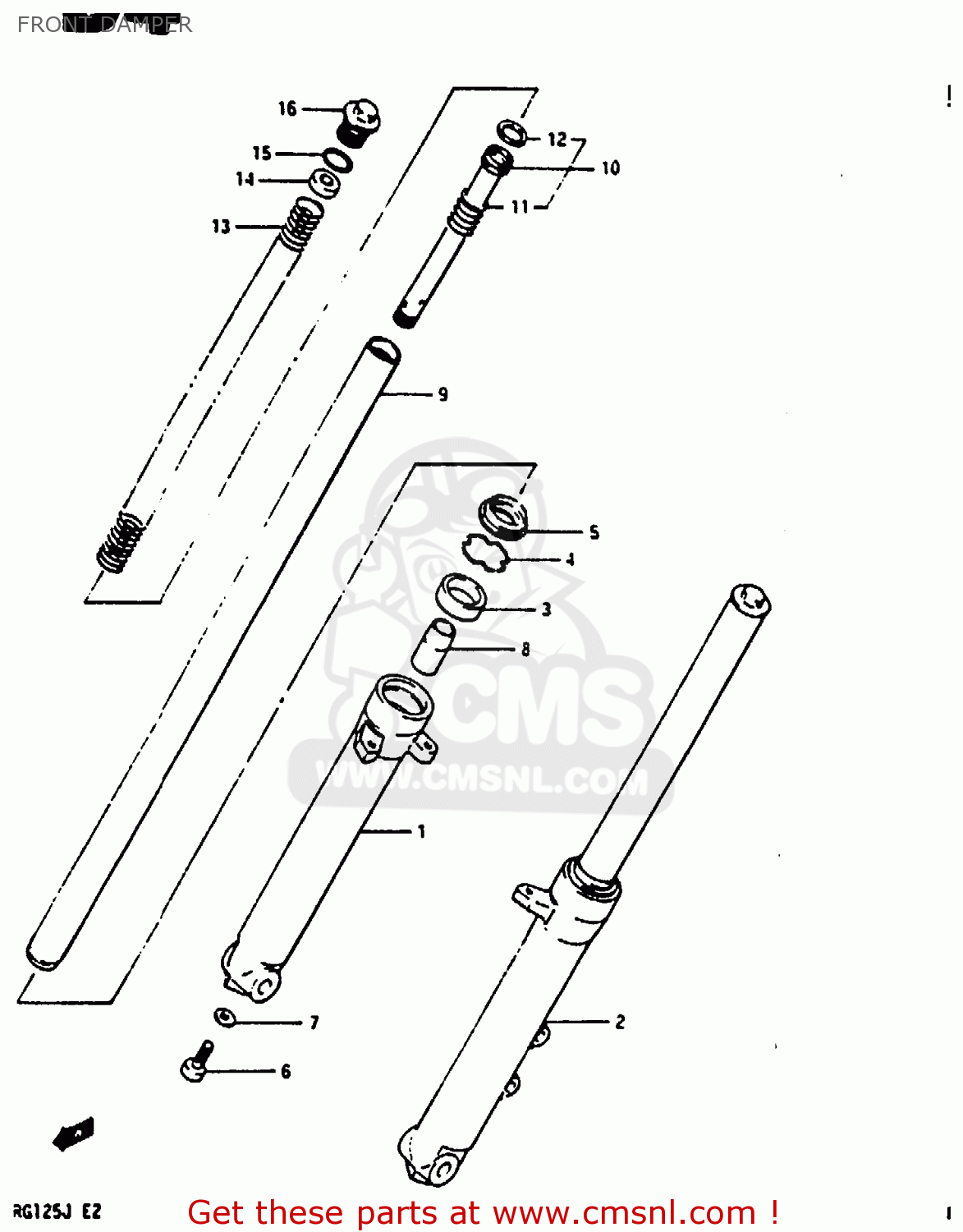

Front damper diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)
FRONT DAMPER RG125A 1988 (J) (E04 E15 E17 E18 E30)
×
prices are in EUR
ref
part #
description
quantity
0
5110336A00
ref: 0
DAMPER ASSY,FR FORK,R
€ 366.50
0
5110436A00
ref: 0
DAMPER ASSY,FR FORK,L
€ 0.00
1
5113036A00
ref: 1
TUBE,OUTER,R
€ 0.00
2
5114036A00
ref: 2
OUTER TUBE, LH
€ 160.00
3
5115336A00
ref: 3
SEAL,OIL
€ 10.50
4
5115639260
ref: 4
RING,SNAP
€ 2.50
5
5117336A00
ref: 5
DUST SEAL,FR F
€ 10.50
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5114841310
ref: 7
GASKET (NAS)
€ 2.50
8
5119536220
ref: 8
PIECE,OIL LOCK
€ 11.50
9
5111036A00
ref: 9
TUBE,INNER
€ 195.00
10
5114636A00
ref: 10
CYLINDER
€ 38.50
11
5117736A00
ref: 11
SPRING,REBOUND
€ 5.50
12
5119636A00
ref: 12
RING,FR FORK PISTON
€ 3.00
13
5117136A00
ref: 13
SPRING
€ 27.00
14
5135336220
ref: 14
NUT
€ 7.00
15
5111736220
ref: 15
O RING
€ 2.00
16
5135139220
ref: 16
CAP
€ 12.00
