FRONT CALIPER
RG125A 1988 (J) (E04 E15 E17 E18 E30)

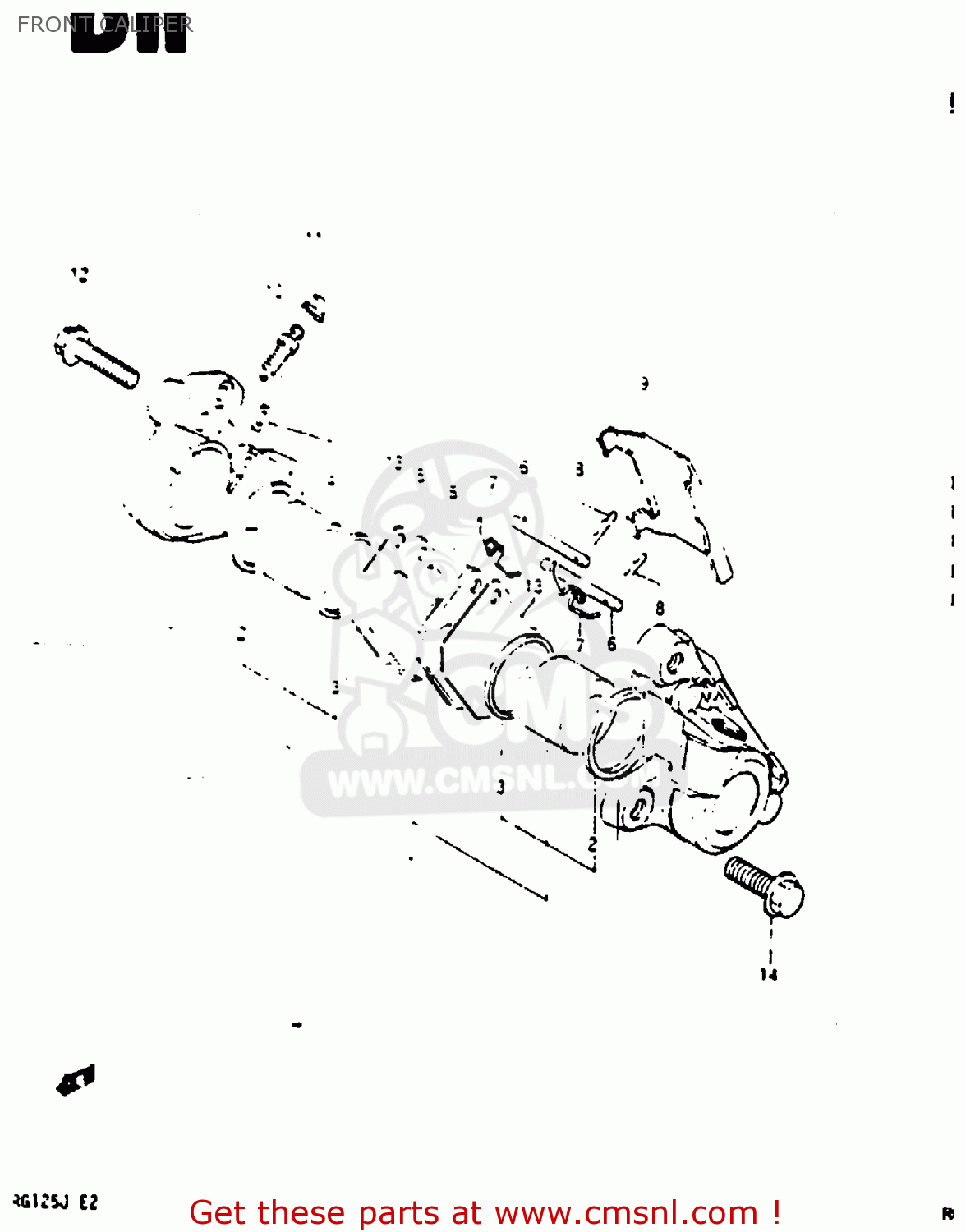

Front caliper diagram RG125A 1988 (J) (E04 E15 E17 E18 E30)
FRONT CALIPER RG125A 1988 (J) (E04 E15 E17 E18 E30)
×
prices are in EUR
ref
part #
description
quantity
0
5930036A01
ref: 0
CALIPER ASSY, LH
€ 331.50
0
5930036A10
ref: 0
MODEL J E17
CALIPER ASSY, LH
€ 331.50
1
5910036840
ref: 1
PISTON / SEAL SET
€ 58.00
2
5910739100
ref: 2
SEAL,PISTON
€ 18.00
3
5910836A00
ref: 3
SEAL,WIPER
€ 14.50
4
6910734200
ref: 4
SEAL,JOINT
€ 12.00
5-1
5913036A01
ref: 5-1
PAD (MCA)
€ 43.00
5-2
5913036A10
ref: 5-2
MODEL J E17
PAD
€ 43.00
6
6914145000
ref: 6
PIN,PAD
€ 6.50
7
5914316700
ref: 7
SPRING
€ 7.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5915116701
ref: 9
COVER
€ 13.50
10
5912118410
ref: 10
BLEEDER
€ 8.00
11
5912218410
ref: 11
CAP,BREATHER
€ 6.00
12
5914536A00
ref: 12
BOLT
€ 5.50
13
5937136A00
ref: 13
SHIM
€ 9.50
14
0151708258
ref: 14
BOLT
€ 2.50
