CRANKCASE COVER
RG125FU 1993 (P) (E02 E04)

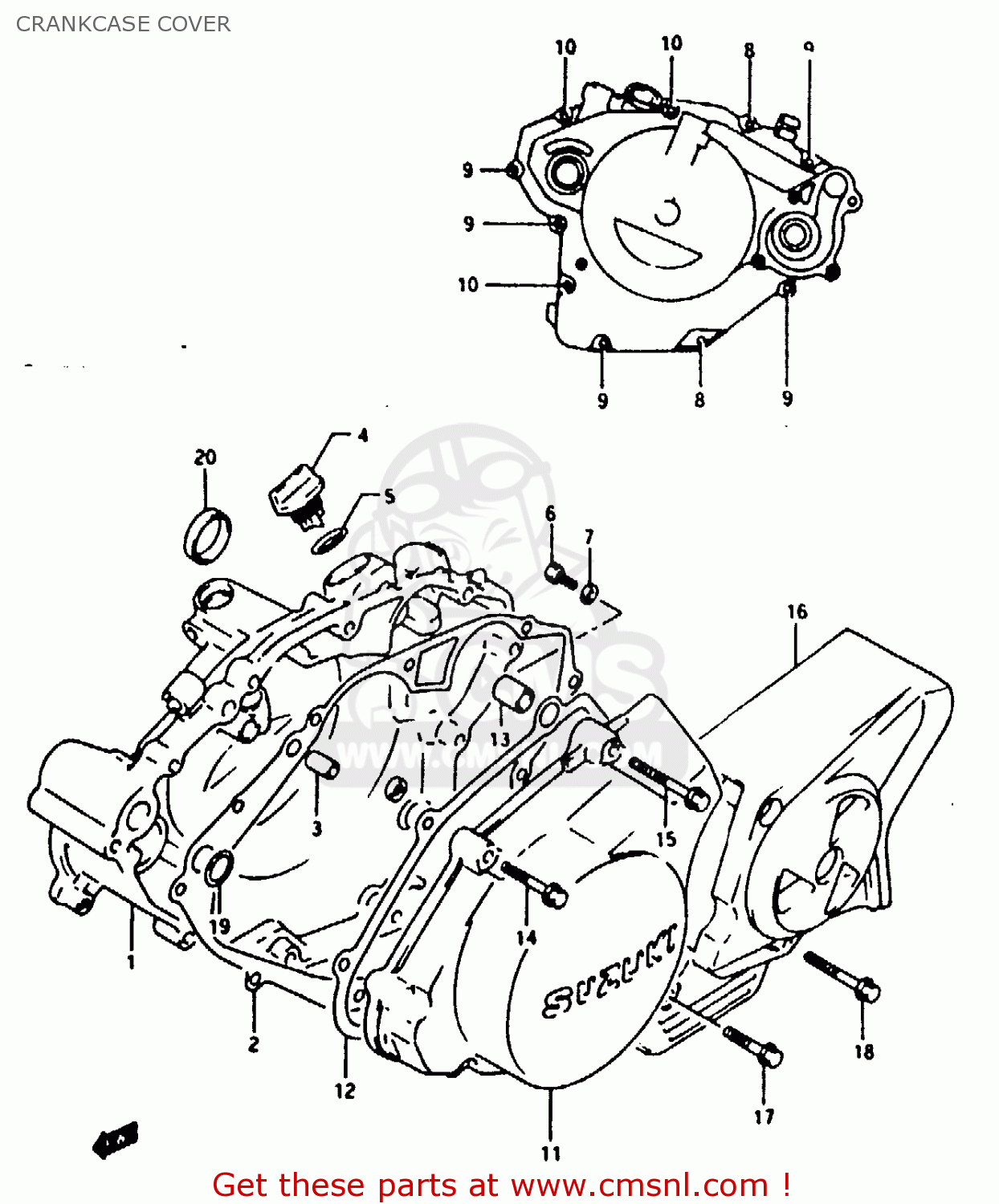

Crankcase cover diagram RG125FU 1993 (P) (E02 E04)
CRANKCASE COVER RG125FU 1993 (P) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134119D02
ref: 1-1
MODEL N/P
COVER, CLUTCH
€ 188.50
1-2
1134119D40
ref: 1-2
MODEL R
COVER, CLUTCH
€ 188.50
2
1148203D10
ref: 2
@l11482-03D00
GASKET,CLUTCH COVER (NAS)
€ 34.00
3
0421109129
ref: 3
PIN
€ 2.00
4
1197120A00
ref: 4
PLUG,OIL FILLE
€ 7.00
5
0928017D03
ref: 5
O RING
€ 0.00
6
0912806004
ref: 6
SCREW(6X10)
€ 1.50
7
0916806001
ref: 7
GASKET(6.2X11X1) (NAS)
€ 1.50
8-1
0154706257
ref: 8-1
MODEL N/P
BOLT
€ 2.50
8-2
0154706253
ref: 8-2
MODEL R
SCREW
€ 2.50
9-1
0154706307
ref: 9-1
MODEL N/P
BOLT
€ 2.50
9-2
0154706303
ref: 9-2
MODEL R
BOLT,G/S SWITC
€ 3.00
10-1
0154706407
ref: 10-1
MODEL N/P
BOLT
€ 2.50
10-2
0154706403
ref: 10-2
MODEL R
BOLT
€ 3.00
11-1
1135119D02
ref: 11-1
MODEL N/P
COVER, MAGNETO
€ 151.50
11-2
1135119D40
ref: 11-2
MODEL R
COVER,MAGNETO
€ 151.50
12
1148319D00
ref: 12
GASKET,MAGNETO COVER (NAS)
€ 10.50
13
0920613001
ref: 13
PIN
€ 2.50
14-1
0154706307
ref: 14-1
MODEL N/P
BOLT
€ 2.50
14-2
0154706303
ref: 14-2
MODEL R
BOLT,G/S SWITC
€ 3.00
15-1
0154706407
ref: 15-1
MODEL N/P
BOLT
€ 2.50
15-2
0154706403
ref: 15-2
MODEL R
BOLT
€ 3.00
16-1
1136119D11
ref: 16-1
MODEL N/P
COVER, ENGINE SPROCKET
€ 46.00
16-2
1136119D50
ref: 16-2
MODEL R
COVER,SPROCKET
€ 46.00
17-1
0154706257
ref: 17-1
MODEL N/P
BOLT
€ 2.50
17-2
0154706253
ref: 17-2
MODEL R
SCREW
€ 2.50
18-1
0154706357
ref: 18-1
MODEL N/P
BOLT
€ 2.50
18-2
0154706353
ref: 18-2
MODEL R
BOLT
€ 3.00
19
0928015002
ref: 19
O RING(D:1.9,ID:14.5)
€ 3.50
20
1134215D00
ref: 20
PLUG,CLUTCH COVER KICK
€ 7.00
