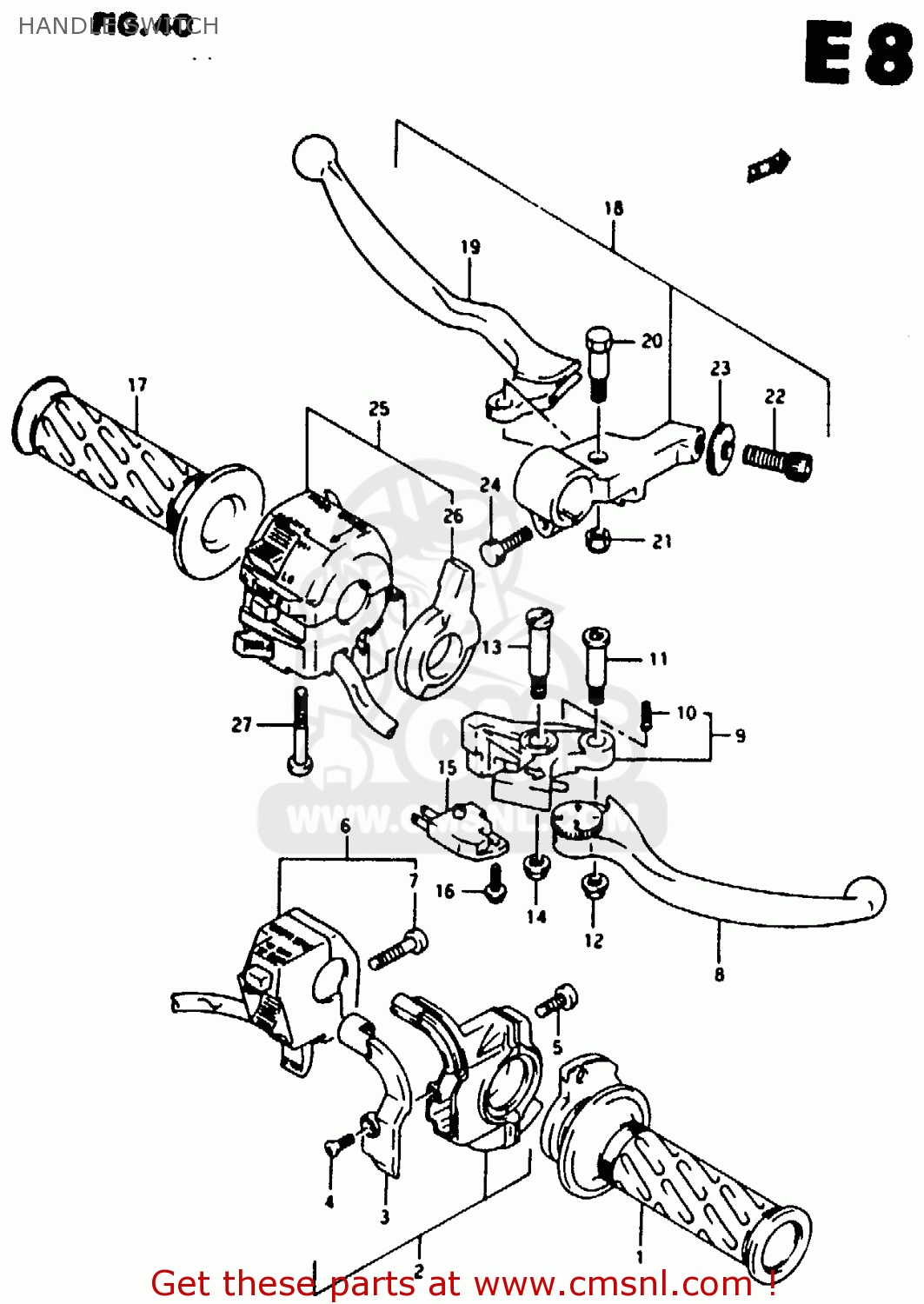

HANDLE SWITCH

ref

part #

description

quantity

1

5711019D00
ref: 1

GRIP, THROTTLE

€ 18.00

2

5710014302
ref: 2

CASE ASSY,THROTTLE

€ 57.50

3

5712914302
ref: 3

COVER,THROTTLE CASE

€ 8.50

4

0213204105
ref: 4

SCREW 4X10

€ 2.50

5

0211205167
ref: 5

SCREW

€ 2.50

6

3720019D00
ref: 6

SWITCH ASSY,HANDLE,R

€ 103.00

7

0211205455
ref: 7

SCREW, 5X45

€ 4.00

8

5742032C00
ref: 8

LEVER,ADJUST

€ 39.50

9

5743032C00
ref: 9

KNOCKER

€ 45.50

10

5743832C00
ref: 10

SPRING

€ 4.00

11

5743732C00
ref: 11

BOLT,LEVER

€ 6.50

12

0831931065
ref: 12

NUT

€ 2.50

13

5743117C00
ref: 13

BOLT,LEVER PIVOT

€ 8.00

14

0831616064
ref: 14

NUT 6MM

€ 2.50

15

5746017C00
ref: 15

SWITCH ASSEMBLY,STOP

€ 32.50

16

5746517C00
ref: 16

SCREW

€ 1.50

17

5721122D00
ref: 17

GRIP,LEFT

€ 11.50

18

5750019D00
ref: 18

LEVER ASSY,CLUTCH

€ 50.50

19

5762038C00
ref: 19

LEVER,CLUTCH

€ 37.00

20-1

5743133450
ref: 20-1
@r57531-14A00

BOLT,LEVER

€ 8.50

20-2

5753114A00
ref: 20-2

BOLT,LEVER SET

€ 8.50

21

0831921065
ref: 21

NUT

€ 2.50

22

5744144400
ref: 22

ADJUSTER,CABLE

€ 5.50

23-1

5744244400
ref: 23-1
@r57442-11010

NUT,CABLE ADJUSTER LOCK

€ 4.00

23-2

5744211010
ref: 23-2

NUT,CABLE ADJUSTER

€ 4.00

24

0110706205
ref: 24

BOLT

€ 2.00

25

3740032B00
ref: 25

SWITCH ASSEMBLY,HANDLE,LEFT

€ 146.00

26

3748130B00
ref: 26

LEVER,CHOKE

€ 13.00

27

0211205455
ref: 27

SCREW, 5X45

€ 4.00
