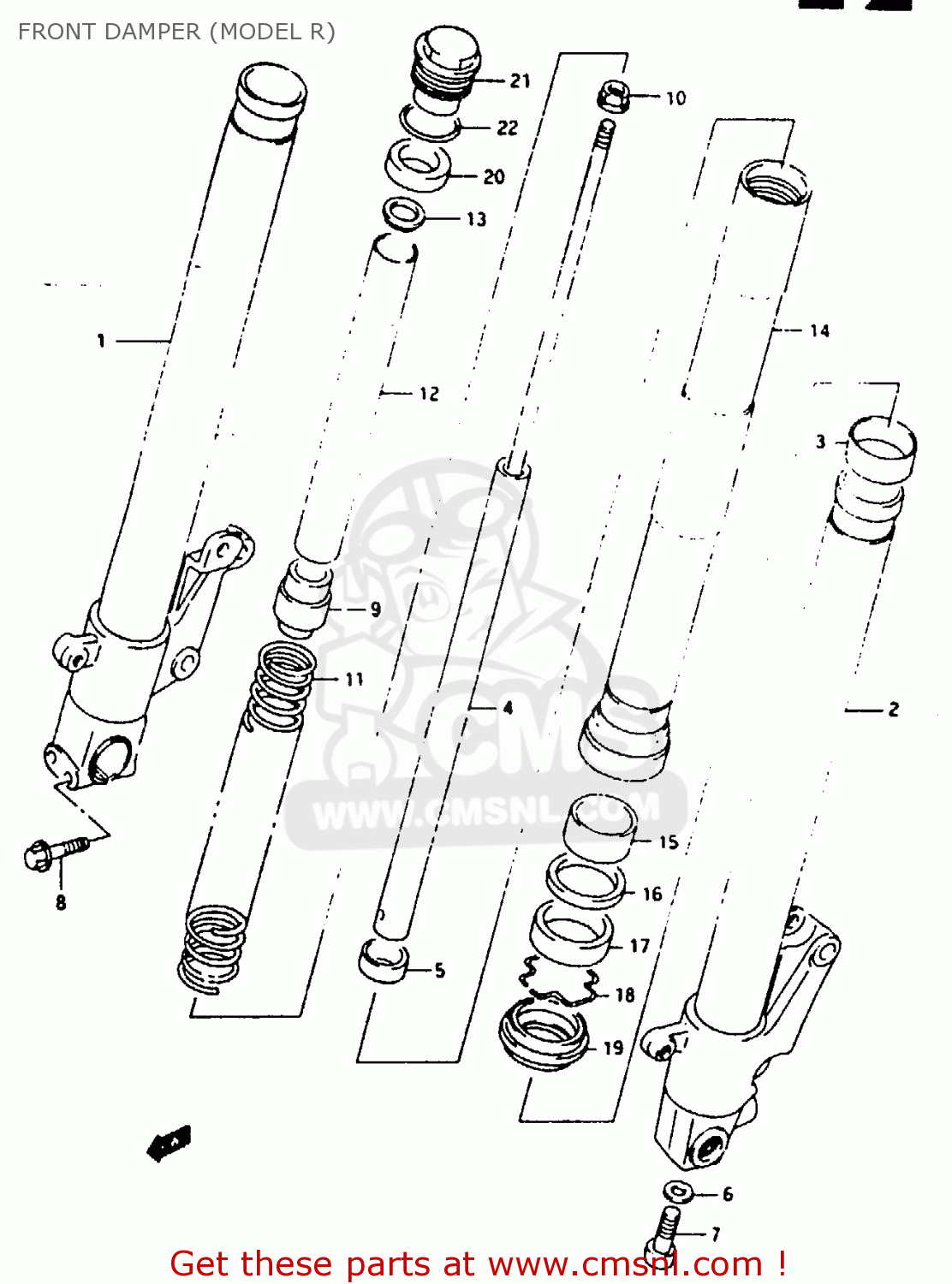

FRONT DAMPER (MODEL R)

ref

part #

description

quantity

0

5110319D00
ref: 0
E4

DAMPER ASSY, RH

€ 673.50

0

5110319D40
ref: 0

DAMPER ASSY,FR FORK,R

€ 556.50

0

5110419D00
ref: 0
E4

DAMPER ASSY, LH

€ 673.50

0

5110419D40
ref: 0

DAMPER ASSY, LH

€ 556.50

1

5111019D00
ref: 1

TUBE,INNER,R

€ 386.50

2

5112019D00
ref: 2

TUBE,INNER,L

€ 386.50

3

5112119D00
ref: 3

BUSH,SLIDE

€ 25.00

4-1

5211019D00
ref: 4-1
E4

DAMPER, FRONT

€ 0.00

4-2

5211019D40
ref: 4-2

DAMPER, FRONT

€ 0.00

5

5181517D00
ref: 5

PLATE,CENTERING

€ 9.50

6

5114836011
ref: 6

GASKET (NAS)

€ 4.00

7

5113808D00
ref: 7

BOLT,CTR

€ 5.00

8

0155008507
ref: 8

BOLT

€ 3.50

8A

5119647D00
ref: 8A

RING,PISTON

€ 6.00

9-1

5117217E00
ref: 9-1
E4

JOINT,SPRING

€ 25.00

9-2

5117247D00
ref: 9-2

JOINT,SPRING

€ 0.00

10

5112908D00
ref: 10

NUT,INNER ROD

€ 0.00

11-1

5117119D00
ref: 11-1
E4

SPRING,MAIN

€ 0.00

11-2

5117119D40
ref: 11-2

SPRING,MAIN

€ 34.50

12-1

5117619D00
ref: 12-1
E4

SPACER,SPRING

€ 0.00

12-2

5117619D40
ref: 12-2

SPACER, SPRING

€ 0.00

13

5118608D00
ref: 13

WASHER,UPR

€ 15.00

14

5113119D00
ref: 14

TUBE, OUTER

€ 416.50

15

5115219D00
ref: 15

GUIDE,BUSH

€ 14.50

16

5116839A00
ref: 16

SPACER,SEAL

€ 7.50

17

5115319D00
ref: 17

SEAL,OIL

€ 16.00

18

5115632B00
ref: 18

RING,OIL SEAL STOPPER

€ 6.50

19

5117319D00
ref: 19

SEAL,DUST

€ 17.50

20

5111615D00
ref: 20

RUBBER,SEAT

€ 0.00

21

5135119D00
ref: 21

BOLT,FORK

€ 35.50

22

5118708D00
ref: 22

O RING,FORK BOLT

€ 6.00

22

5118708D00
ref: 22

O RING,FORK BOLT

€ 6.00

all assemblies
