CYLINDER
RG125FU 1993 (P) (E02 E04)

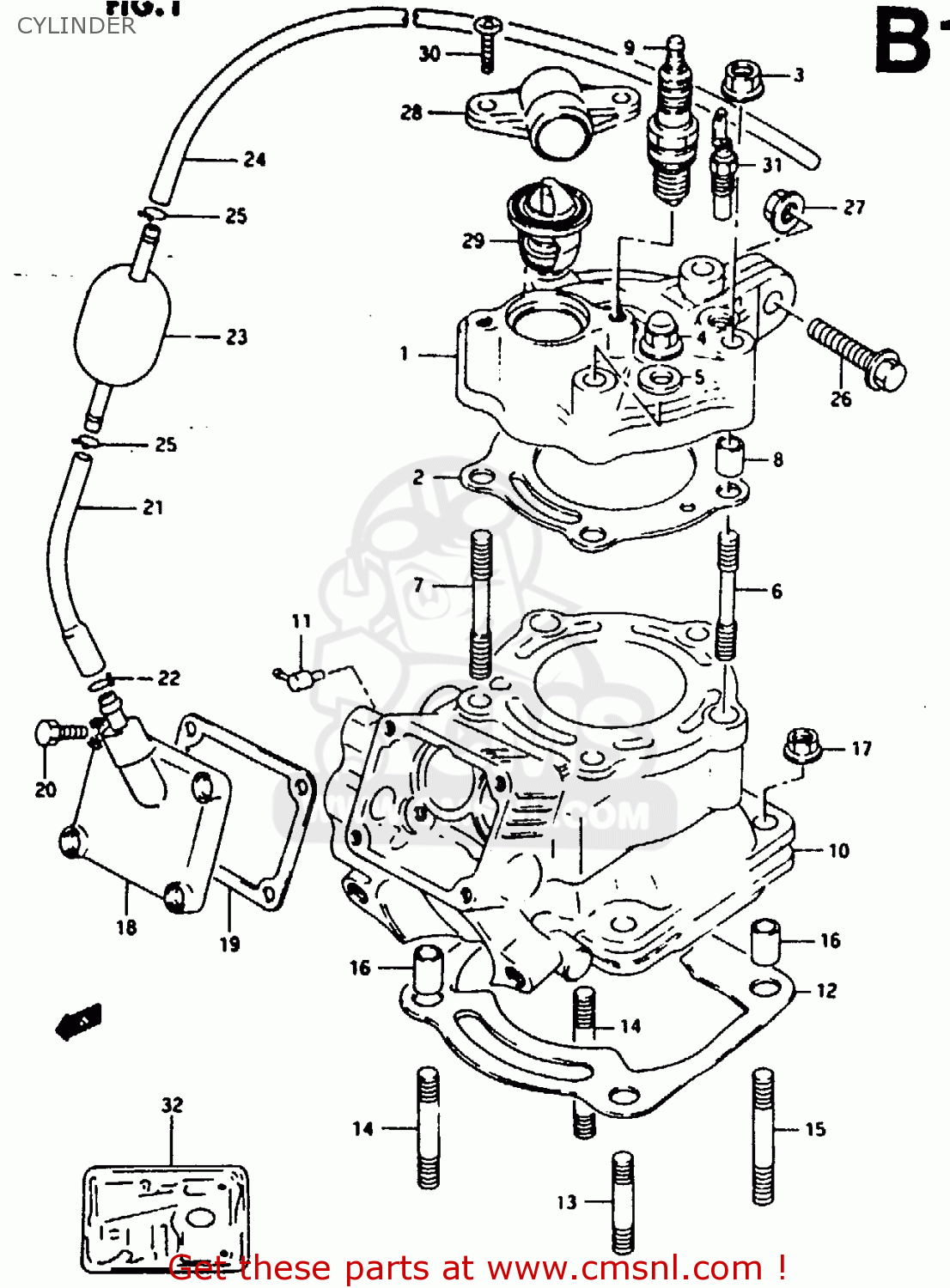

Cylinder diagram RG125FU 1993 (P) (E02 E04)
CYLINDER RG125FU 1993 (P) (E02 E04)
×
prices are in EUR
ref
part #
description
quantity
1
1111119D00
ref: 1
HEAD,CYLINDER
€ 856.50
2
1114122D10
ref: 2
GASKET,CYLINDER HEAD (NAS)
€ 46.00
3-1
0831616088
ref: 3-1
MODEL N/P
NUT
€ 2.50
3-2
083161D083
ref: 3-2
MODEL R
NUT
€ 0.00
4
0915908074
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
1121312C10
ref: 6
STUD BOLT (L:45)
€ 9.00
7
1121322D00
ref: 7
BOLT,HEAD STUD
€ 8.00
8
0421111129
ref: 8
PIN
€ 2.00
9-1
0948200472
ref: 9-1
PLUG,SPARK(BR9ECM)
€ 19.50
9-2
0948200473
ref: 9-2
PLUG,SPARK(W27EMR-C)
€ 19.50
9-3
0948200470
ref: 9-3
OPT
PLUG,SPARK(BR8ECM)
€ 21.00
9-4
0948200474
ref: 9-4
OPT
PLUG,SPARK(BR10ECM)
€ 0.00
9-5
0948200471
ref: 9-5
OPT
SPARK PLUG (ND, W24EMR-C)
€ 10.50
9-6
0948200475
ref: 9-6
OPT
SPARK PLUG (ND, W31EMR-C)
€ 11.50
10-1
1120019811
ref: 10-1
CYLINDER
€ 790.00
10-2
1120019850
ref: 10-2
MODEL P/R E34
CYLINDER
€ 707.00
11
1691009C00
ref: 11
VALVE,OIL HOSE CHECK
€ 17.50
12
1124122D20
ref: 12
@l11241-22D10
GASKET,CYLINDER (NAS)
€ 50.00
13
0910808142
ref: 13
BOLT,STUD
€ 3.00
14
0910808143
ref: 14
BOLT,STUD
€ 3.00
15
0910808144
ref: 15
BOLT,STUD
€ 4.50
16
0421111169
ref: 16
PIN
€ 2.00
17-1
0831616088
ref: 17-1
MODEL N/P
NUT
€ 2.50
17-2
0831610083
ref: 17-2
MODEL R
NUT
€ 3.00
18-1
1124002B50
ref: 18-1
COVER,CYLINDER
€ 27.00
18-2
1124812C01
ref: 18-2
E15, E18
COVER,CYLINDER NO.2
€ 22.50
19
1123801B30H17
ref: 19
GASKET,CYL COVER NO.2 (NAS)
€ 6.00
20-1
0110705167
ref: 20-1
MODEL N/P
BOLT
€ 1.50
20-2
0150005163
ref: 20-2
MODEL R
BOLT
€ 1.50
21
0935950823300
ref: 21
L:300@r115 EXCEPT E1
HOSE (5X8.2X300)
€ 14.00
22
0940110401
ref: 22
EXCEPT E15, E18
CLIP
€ 1.50
23
8548178000
ref: 23
EXCEPT E15, E18
VESSEL,SILENCER
€ 3.00
24
093525082300A
ref: 24
L:1000@r870 EXCEPT E
HOSE
€ 13.00
25
0940108401
ref: 25
EXCEPT E15, E18
CLIP
€ 1.50
26-1
0151708407
ref: 26-1
MODEL N/P
BOLT 8X40
€ 3.50
26-2
0155008403
ref: 26-2
MODEL R
BOLT
€ 3.50
27
0831931087
ref: 27
NUT
€ 2.50
28
1766136A00
ref: 28
COVER,THERMOSTAT
€ 38.50
29
1767008D00
ref: 29
THERMOSTAT COMP,WATER
€ 38.00
30
0211206207
ref: 30
SCREW
€ 2.00
31
3485082012
ref: 31
@l34850-82011
GAUGE,WATER,TM
€ 82.50
32
1140019892
ref: 32
GASKET SET (NAS)
€ 104.50
