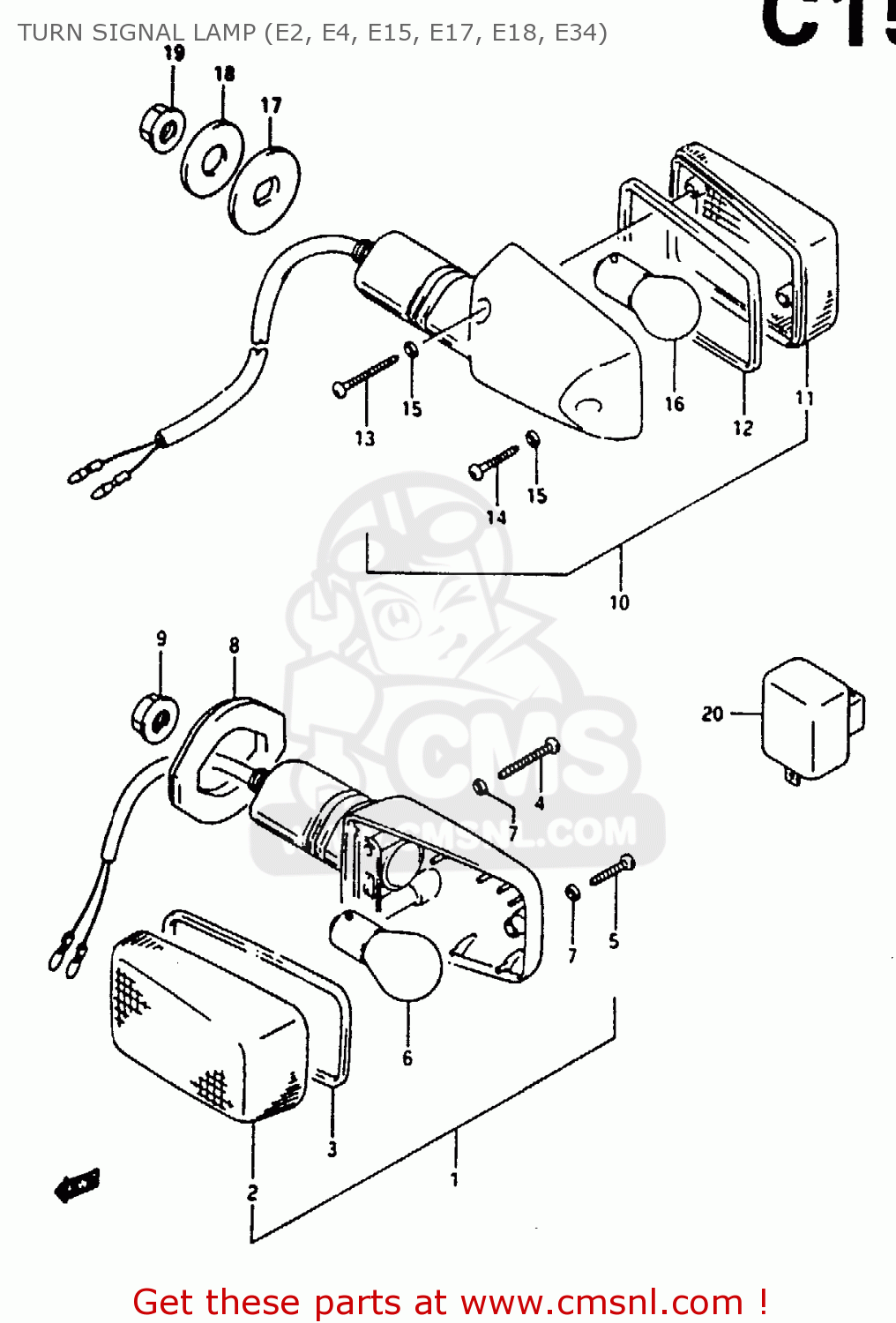

TURN SIGNAL LAMP (E2, E4, E15, E17, E18, E34)

ref

part #

description

quantity

1-1

3560101D00
ref: 1-1

LAMP ASSY,FR TURN SIGNAL

€ 81.00

1-2

3560101D10
ref: 1-2
E18

LAMP ASSY,FR TURN SIGNAL

€ 70.50

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

3562727A02
ref: 7

GASKET (NAS)

€ 1.50

8

3567427A01
ref: 8

GROMMET

€ 13.50

9-1

0831626105
ref: 9-1
MODEL N/P

NUT

€ 3.50

9-2

0831620103
ref: 9-2
MODEL R

NUT

€ 3.50

10-1

3560317C41999
ref: 10-1

LAMP ASSY,RR TURNSIGNAL

€ 76.00

10-2

3560317C51999
ref: 10-2
E15

LAMP ASSY,RR TURNSIGNAL

€ 68.00

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

3569517C00
ref: 17

SPACER,RR TURNSIGNAL

€ 3.00

18

0916010094
ref: 18

WASHER(10.5X30X3.2)

€ 3.50

19-1

0831626105
ref: 19-1
MODEL N

NUT

€ 3.50

19-2

0831012108
ref: 19-2
MODEL P

NUT

€ 2.50

19-3

0831000103
ref: 19-3
MODEL R

NUT

€ 2.00

20

3861031310
ref: 20

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

TURN SIGNAL LAMP (E2, E4, E15, E17, E18, E34)

all assemblies
