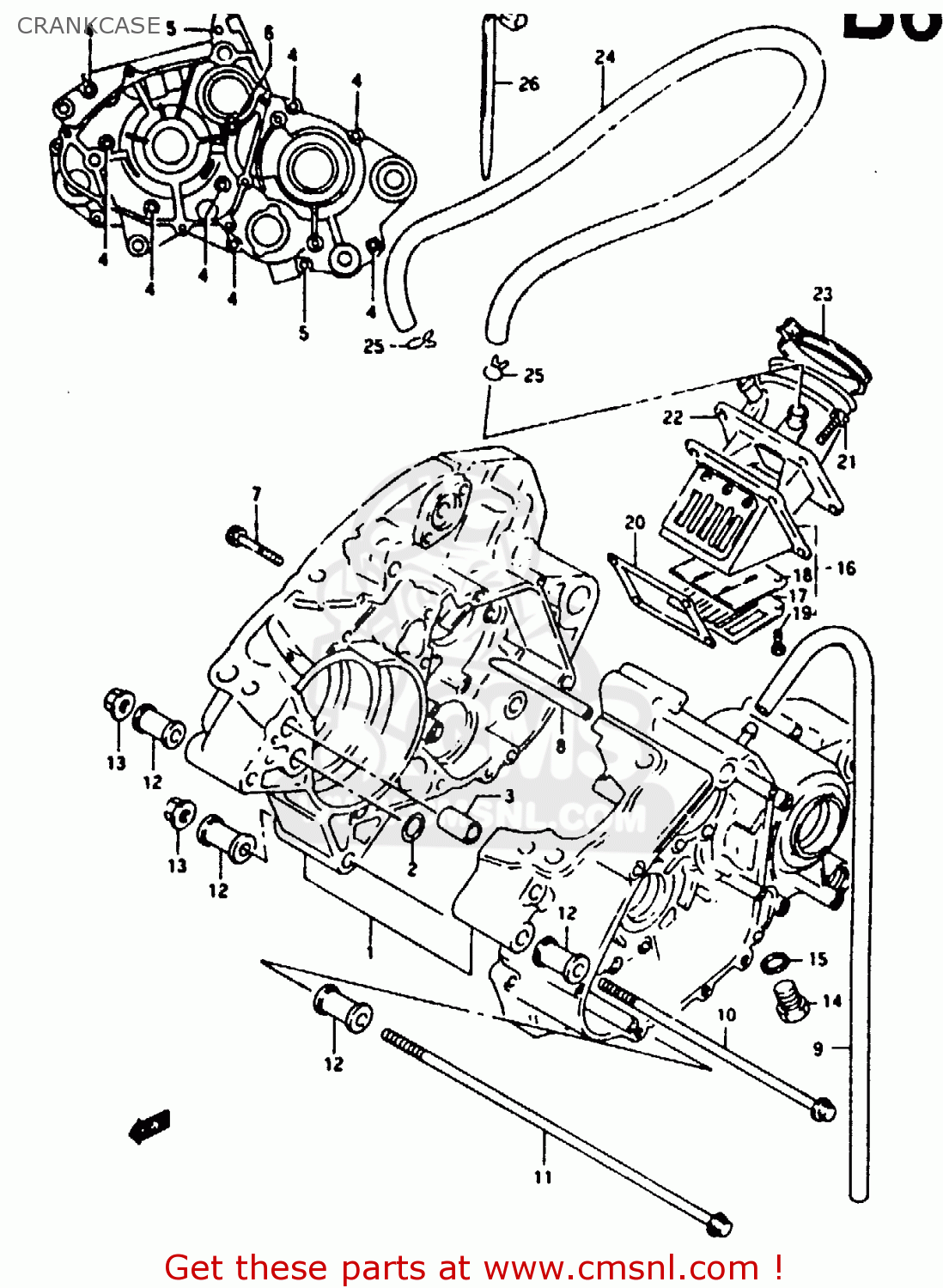

CRANKCASE

ref

part #

description

quantity

1

1130019890
ref: 1

CRANKCASE SET

€ 653.50

2

0928016010
ref: 2

O RING(D:1.9,ID:15.8)

€ 1.50

3-1

0920613004
ref: 3-1
MODEL N/P

PIN(10.4X13X22)

€ 3.00

3-2

0920613001
ref: 3-2
MODEL R

PIN

€ 2.50

4-1

0154706507
ref: 4-1
MODEL N/P

BOLT

€ 2.50

4-2

0154706503
ref: 4-2
MODEL R

BOLT

€ 3.50

5-1

0154706657
ref: 5-1
MODEL N/P

BOLT

€ 2.00

5-2

0154706653
ref: 5-2
MODEL R

BOLT

€ 2.00

6

1139503D10
ref: 6

SCREW,CRANKCASE

€ 0.00

7-1

0711006357
ref: 7-1
MODEL N/P

BOLT

€ 3.50

7-2

0713006353
ref: 7-2
MODEL R

BOLT

€ 3.50

8

1139103D00
ref: 8

PIPE,BREATHER

€ 3.00

9

093526010300A
ref: 9
L:1000@r800

HOSE

€ 24.50

10

0910308303
ref: 10

BOLT(8X175)

€ 6.00

11

0910308218
ref: 11

BOLT(8X265)

€ 9.50

12

1161046A00
ref: 12

SPACER, ENGINE MOUNTING

€ 13.50

13

0831931087
ref: 13

NUT

€ 2.50

14-1

0924714031
ref: 14-1
MODEL N/P

PLUG, OIL DRAIN

€ 3.50

14-2

0924714025
ref: 14-2
MODEL R

PLUG

€ 3.50

15

0916814002
ref: 15

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

16

1315003D00
ref: 16

VALVE ASSY,REED

€ 81.50

17

1315203D00
ref: 17

STOPPER,REED VALVE

€ 5.50

18

1315301B20
ref: 18

VALVE,REED

€ 8.00

19

1315414500
ref: 19

SCREW,REED VALVE

€ 1.50

20

1315603D10
ref: 20
@l13156-03D00

GASKET,REED VALVE (NAS)

€ 6.00

21-1

0110706205
ref: 21-1
MODEL N/P

BOLT

€ 2.00

21-2

0150006203
ref: 21-2
MODEL R

BOLT

€ 2.00

22

1311019D00
ref: 22

PIPE,INTAKE

€ 96.00

23

0940254208
ref: 23

CLAMP

€ 5.00

24

1311503D00
ref: 24

HOSE, INTERFERENCE

€ 21.00

25

0940113409
ref: 25

CLIP

€ 2.50

26-1

0940718402
ref: 26-1

CLAMP(L:165)

€ 2.50

26-2

0940714403
ref: 26-2

CLAMP(L:125)

€ 2.50
