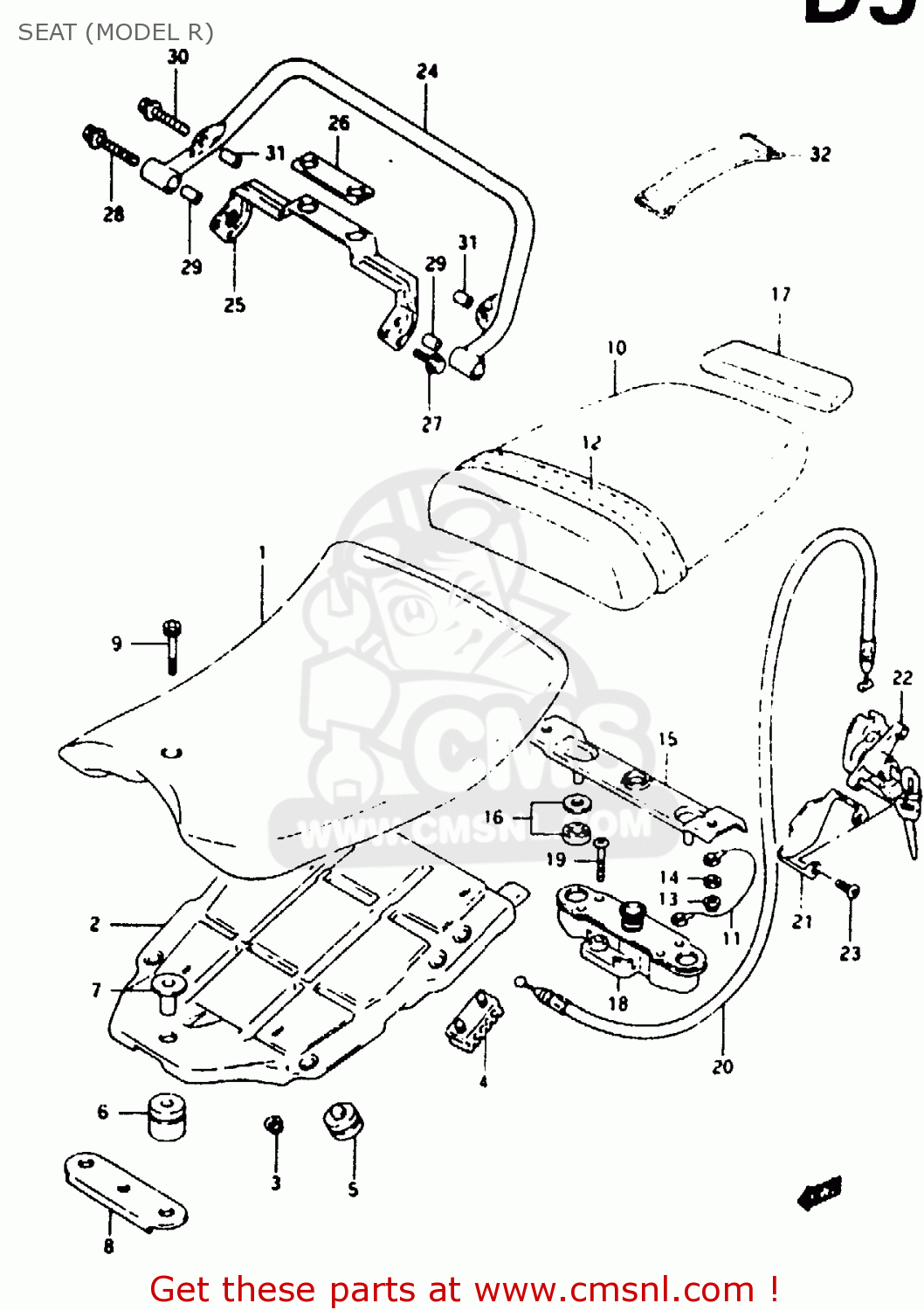

SEAT (MODEL R)

ref

part #

description

quantity

1

4510019D0058R
ref: 1

SEAT ASSY (BLACK)

€ 186.50

2

4511119D00
ref: 2

FRAME, SEAT BOTTOM

€ 0.00

3

0831610043
ref: 3

NUT, LICENSE

€ 2.50

4

4514919D00
ref: 4

CUSHION,SIDE

€ 6.00

5

0932110011
ref: 5

CUSHION

€ 3.00

6

4514922D00
ref: 6

CUSHION,SEAT

€ 5.00

7

4521922D00
ref: 7

COLLAR,FR

€ 6.00

8

4511922D00
ref: 8

PLATE,SEAT FR

€ 23.50

9

0713006355
ref: 9

BOLT

€ 3.50

10-1

4530019D115FM
ref: 10-1
FOR M18

SEAT ASSY, PILLION (BLUE)

€ 141.50

10-2

4530019D116BY
ref: 10-2
FOR 1ZX

SEAT ASSY, PILLION (BLACK)

€ 141.50

11

4528012C10
ref: 11

CABLE, PILLION SEAT

€ 10.00

12-1

4518019D006BY
ref: 12-1

BAND, SEAT (BLACK)

€ 0.00

12-2

4518019D005FM
ref: 12-2

BAND, SEAT (BLUE)

€ 0.00

13

0831610063
ref: 13

NUT

€ 2.50

14

0821106201
ref: 14

WASHER

€ 2.00

15

4521022D01
ref: 15

STRIKER,SEAT LOCK

€ 31.00

16

4521331300
ref: 16

CUSHION

€ 1.50

17

4537219D00
ref: 17
E18

EXTENTION

€ 27.50

18

4522013601
ref: 18

LOCK ASSY,SEAT STRIKER

€ 47.00

19

0211206303
ref: 19

SCREW 6X30

€ 2.50

20

4528001A00
ref: 20

CABLE,SEAT LOCK CABLE

€ 10.50

21

4528945D01
ref: 21

PLATE,SEAT LOCK GUARD

€ 10.50

22

9570010833
ref: 22

LOCK SET,SEAT & HELMET

€ 99.50

23

0913906064
ref: 23

SCREW

€ 2.50

24

4398019D00
ref: 24
E15, E18

GRIP,RR

€ 86.50

25

4612019D00
ref: 25
E15, E18

BRACE, REAR GRIP

€ 0.00

26

4731519D00
ref: 26
E15, E18

CUSHION, CENTER COVER

€ 0.00

27

0155006123
ref: 27
E15, E18

BOLT

€ 2.50

28

0155008803
ref: 28
E15, E18

BOLT (8X80)

€ 4.00

29

4614119D01
ref: 29
E15, E18

SPACER, FRONT

€ 14.00

30

0155008453
ref: 30
E15, E18

BOLT

€ 3.00

31

4614219D01
ref: 31
E15, E18

SPACER, REAR

€ 13.00

32

0946200072
ref: 32

BAND

€ 3.50
