HEADLAMP

RG125FU 1993 (P) (E02 E04)

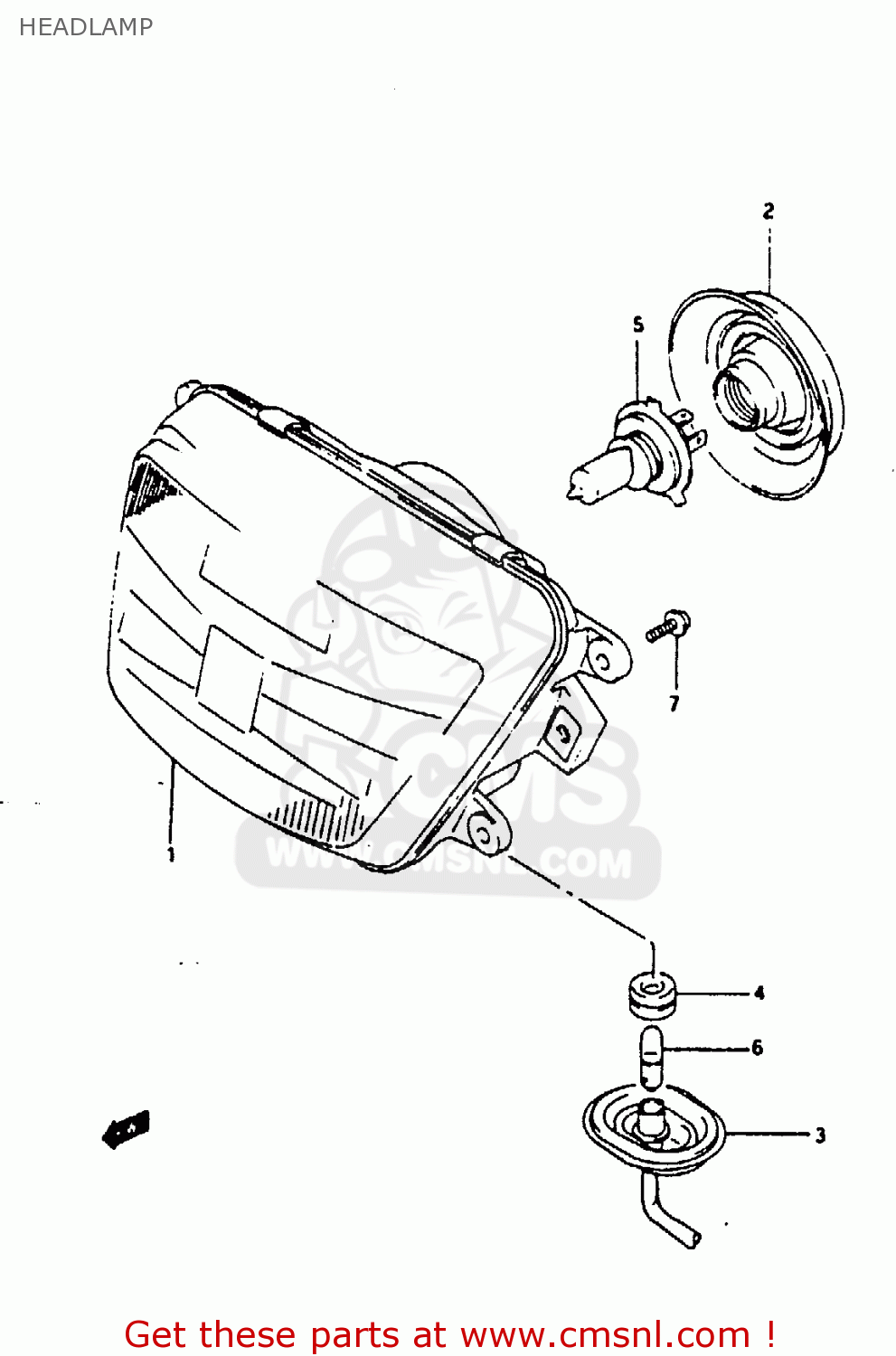

Headlamp diagram RG125FU 1993 (P) (E02 E04)

prices are in EUR

ref

part #

description

quantity

1-1

3512122D00
ref: 1-1

LAMP UNIT,HEADLAMP

€ 232.00

1-2

3512122D10
ref: 1-2
E4, E15, E17, E18, E

UNIT, HEADLAMP

€ 241.00

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3611812C00
ref: 3

SOCKET

€ 17.50

3611622630
ref: 4

JOINT,RUBBER

€ 5.00

5-1

0947112060
ref: 5-1

BULB(12V60/55W,H4)

€ 8.00

5-2

0947112061
ref: 5-2
E4, PURCHASE LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

0947112063
ref: 6

BULB(12V4W)

€ 6.00

7-1

0211275165
ref: 7-1
MODEL N/P

SCREW

€ 2.50

7-2

0211275163
ref: 7-2
MODEL R

SCREW

€ 2.50
