COWLING (MODEL G)
RG250 1987 (H) (E01 E04 E21)

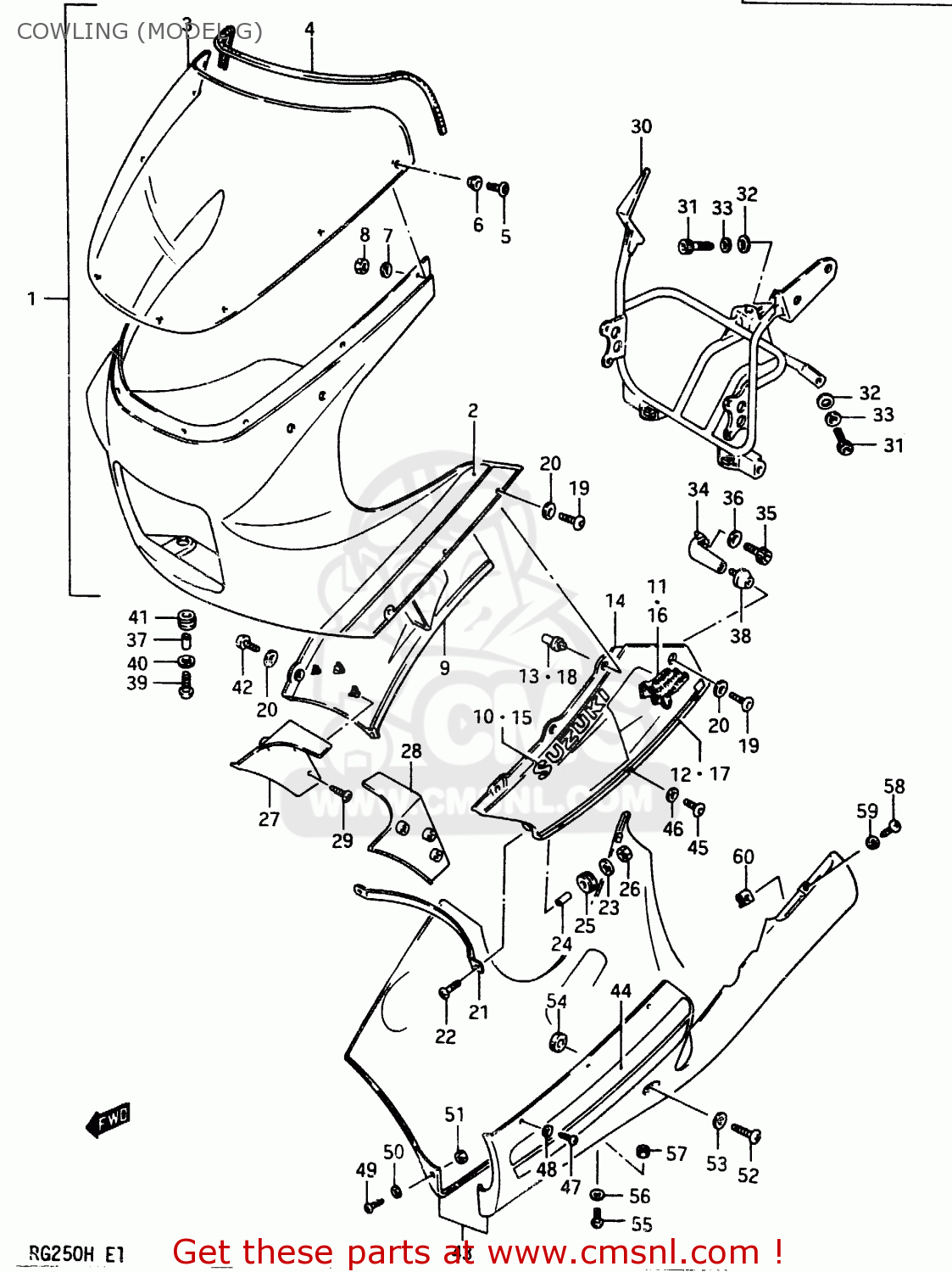

Cowling (model g) diagram RG250 1987 (H) (E01 E04 E21)
COWLING (MODEL G) RG250 1987 (H) (E01 E04 E21)
×
prices are in EUR
ref
part #
description
quantity
1
9440040A0014L
ref: 1
FOR 85J
COWLING ASSY (WHITE)
€ 686.50
1
9440040A0008X
ref: 1
FOR 7TG
COWLING ASSY (WHITE)
€ 686.50
2
6818040A207YM
ref: 2
FOR 14L
TAPE SET
€ 38.00
2
6818040A2081F
ref: 2
FOR 08X
TAPE SET
€ 35.00
3
9461140A00
ref: 3
WINDOW
€ 332.00
4
9463140A00
ref: 4
MOLDING
€ 18.00
5
0913905024
ref: 5
SCREW(5X14)
€ 2.50
6
0932005008
ref: 6
CUSHION
€ 5.00
7
0832221055
ref: 7
WASHER,5MM
€ 2.50
8
0831921055
ref: 8
NUT 8MM
€ 1.50
9
9443040A4007P
ref: 9
RG250G,FOR 14L
COVER, COWLING RH (RED)
€ 0.00
9
9443040A4023Z
ref: 9
RG250G,FOR 08X
COVER, COWLING RH (BLUE)
€ 228.00
9
9443040A5007P
ref: 9
RG250FG E2,E16,E24,E
COVER, COWLING RH (RED)
€ 228.00
9
9443040A5023Z
ref: 9
RG250FG E2,E16,E24,E
COVER, COWLING RH (BLUE)
€ 228.00
10
6811109300064
ref: 10
EMBLEM,FUEL TA
€ 11.50
11
6868120A1090P
ref: 11
FOR 07P
EMBLEM
€ 8.00
11
6868120A107VS
ref: 11
FOR 23Z
EMBLEM
€ 12.00
12
6868040A00064
ref: 12
TAPE SET, SIDE RH
€ 8.00
13
9443416710
ref: 13
NUT,COWLING COVER
€ 4.50
14
9444040A4007P
ref: 14
RG250G,FOR 14L
COVER, COWLING LH (RED)
€ 0.00
14
9444040A4023Z
ref: 14
RG250G,FOR 08X
COVER, COWLING LH (BLUE)
€ 173.00
14
9444040A5007P
ref: 14
RG250FG E2,E16,E24,E
COVER, COWLING LH (RED)
€ 0.00
14
9444040A5023Z
ref: 14
RG250FG E2,E16,E24,E
COVER, COWLING LH (BLUE)
€ 173.00
15
6811109300064
ref: 15
EMBLEM,FUEL TA
€ 11.50
16
6868120A1090P
ref: 16
FOR 07P
EMBLEM
€ 8.00
16
6868120A107VS
ref: 16
FOR 23Z
EMBLEM
€ 12.00
17
6869040A00064
ref: 17
TAPE SET, SIDE LH
€ 9.50
18
9443416710
ref: 18
NUT,COWLING COVER
€ 4.50
19
0913906028
ref: 19
SCREW(6X20)
€ 3.50
20
0916006019
ref: 20
WASHER(6.5X16X1.2)
€ 1.50
21
9442140A0007P
ref: 21
FOR 14L
PANEL, COWLING LOWER (RED)
€ 13.00
21
9442140A0023Z
ref: 21
FOR 08X
PANEL, COWLING LOWER (BLUE)
€ 13.00
22
0214206258
ref: 22
SCREW
€ 3.00
23
0916006027
ref: 23
WASHER (6.5X20X1.2)
€ 2.00
24
0918006030
ref: 24
SPACER (6.8X10X10)
€ 2.00
25
0932010015
ref: 25
CUSHION
€ 2.50
26
0831921068
ref: 26
NUT 6MM
€ 2.00
27
9445140A00
ref: 27
GUIDE PLATE, RH
€ 12.00
28
9446140A00
ref: 28
GUIDE PLATE, LH
€ 11.50
29
0321205105
ref: 29
SCREW
€ 1.00
30
9451040A01
ref: 30
BRACE, COWLING
€ 96.50
31
0711008205
ref: 31
BOLT
€ 3.00
32
0832211084
ref: 32
WASHER
€ 1.50
33
0832121084
ref: 33
WASHER,LOCK,8.
€ 2.50
34
9453140A00
ref: 34
SPACER, COWLING LOWER
€ 15.50
35
0711008168
ref: 35
BOLT
€ 3.00
36
0832211084
ref: 36
WASHER
€ 1.50
37
0918006120
ref: 37
SPACER(6.5X11.5X12)
€ 2.50
38
9457016701
ref: 38
CUSHION,COWLING
€ 16.50
39
0913906028
ref: 39
SCREW(6X20)
€ 3.50
40
0916006076
ref: 40
WASHER
€ 2.00
41
0932011008
ref: 41
CUSHION
€ 3.00
42
0913906042
ref: 42
SCREW(6X30)
€ 7.50
43
9447040A0185J
ref: 43
RG250FG E2,E16,E24,E
COWLING, UNDER
€ 0.00
43
9447040A017TG
ref: 43
RG250FG E2,E16,E24,E
COWLING, UNDER
€ 0.00
44
6819040A007YM
ref: 44
RG250FG E2,E16,E24,E
TAPE SET, UNDER
€ 0.00
44
6819040A0081F
ref: 44
RG250FG E2,E16,E24,E
TAPE SET, UNDER
€ 49.00
45
0913906027
ref: 45
RG250FG E2,E16,E24,E
SCREW(6X12)
€ 3.00
46
0916006019
ref: 46
RG250FG E2,E16,E24,E
WASHER(6.5X16X1.2)
€ 1.50
47
0214204107
ref: 47
RG250FG E2,E16,E24,E
SCREW
€ 1.50
48
0832211048
ref: 48
RG250FG E2,E16,E24,E
WASHER
€ 2.00
49
0214204107
ref: 49
RG250FG E2,E16,E24,E
SCREW
€ 1.50
50
0832211048
ref: 50
RG250FG E2,E16,E24,E
WASHER
€ 2.00
51
0831021048
ref: 51
RG250FG E2,E16,E24,E
NUT
€ 2.00
52
0214206258
ref: 52
RG250FG E2,E16,E24,E
SCREW
€ 3.00
53
0916006019
ref: 53
RG250FG E2,E16,E24,E
WASHER(6.5X16X1.2)
€ 1.50
54
9447740A00
ref: 54
RG250FG E2,E16,E24,E
SPACER,UNDER COWLING
€ 7.50
55
0214205128
ref: 55
RG250FG E2,E16,E24,E
SCREW
€ 1.50
56
0916005036
ref: 56
RG250FG E2,E16,E24,E
WASHER (5.5X14X1.2)
€ 2.00
57
0831921058
ref: 57
RG250FG E2,E16,E24,E
NUT
€ 1.50
58
0324205129
ref: 58
RG250FG E2,E16,E24,E
SCREW
€ 1.50
59
9447840A00
ref: 59
RG250FG E2,E16,E24,E
WASHER
€ 5.00
60
9447940A00
ref: 60
RG250FG E2,E16,E24,E
NUT
€ 4.00
