FRONT RH DAMPER
RG250 1987 (H) (E01 E04 E21)

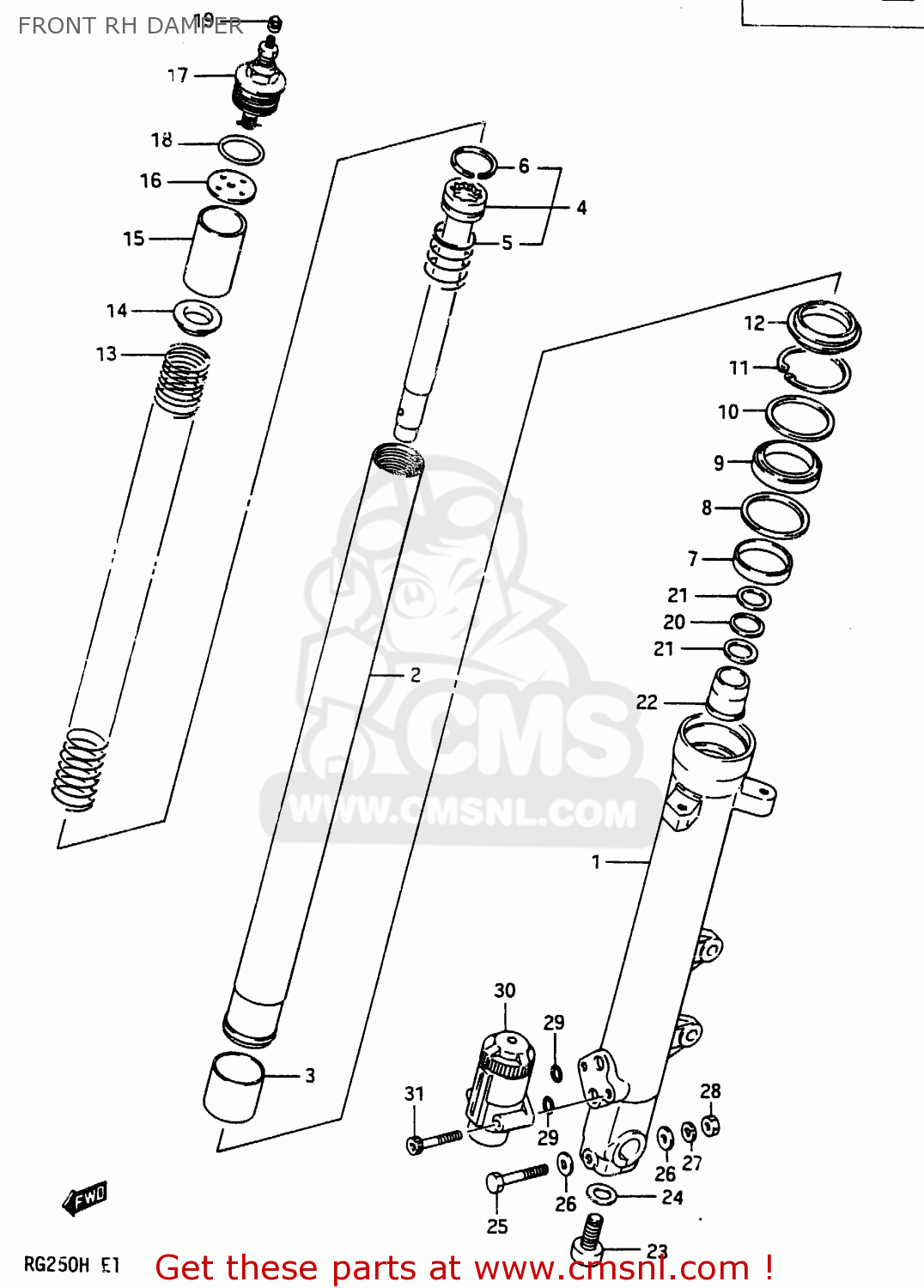

Front rh damper diagram RG250 1987 (H) (E01 E04 E21)
FRONT RH DAMPER RG250 1987 (H) (E01 E04 E21)
×
prices are in EUR
ref
part #
description
quantity
0
5110340A10
ref: 0
DAMPER ASSY, RH
€ 575.00
1
5113040A00
ref: 1
TUBE, OUTER RH
€ 236.00
2
5111040A00
ref: 2
TUBE, INNER
€ 207.50
3
5112140A00
ref: 3
PISTON
€ 14.50
4
5114604A00
ref: 4
CYLINDER
€ 0.00
5
5117743400
ref: 5
SPRING,REBOUND
€ 0.00
6
5119643400
ref: 6
RING,PISTON
€ 7.00
7
5116740A00
ref: 7
METAL,SLIDE
€ 8.00
8
5115816710
ref: 8
WASHER,OIL SEAL INNER
€ 5.50
9
5115340A00
ref: 9
SEAL,OIL
€ 15.00
10
5115816700
ref: 10
WASHER,OIL SEAL OUTER
€ 4.50
11
5115630400
ref: 11
5115630400
12
5117340A00
ref: 12
SEAL,DUST
€ 13.50
13
5117140A00
ref: 13
SPRING
€ 40.00
14
5117216700
ref: 14
GUIDE,SPRING
€ 5.00
15
5117640A00
ref: 15
SPACER
€ 7.00
16
5117440A00
ref: 16
WASHER
€ 3.50
17
5135140A00
ref: 17
CAP
€ 61.50
18
5111740A00
ref: 18
O RING
€ 2.50
19
5129440400
ref: 19
CAP,VALVE AIR
€ 4.00
20
5112345420
ref: 20
WASHER
€ 3.50
21
5112545420
ref: 21
SPRING,LEAF
€ 3.50
22
5119545420
ref: 22
PIECE,OIL LOCK
€ 15.50
23
5114716510
ref: 23
BOLT,FORK CYLINDER(10X25)
€ 3.50
24
5114841310
ref: 24
GASKET (NAS)
€ 2.50
25
0110708555
ref: 25
BOLT 8X55
€ 3.00
26
0832221088
ref: 26
WASHER
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
€ 2.00
28
0831012088
ref: 28
NUT
€ 2.00
29
5179900A00
ref: 29
O RING
€ 5.50
30
5177040A00
ref: 30
P.D.F. ASSY
€ 169.50
31
0711006408
ref: 31
BOLT
€ 2.50
