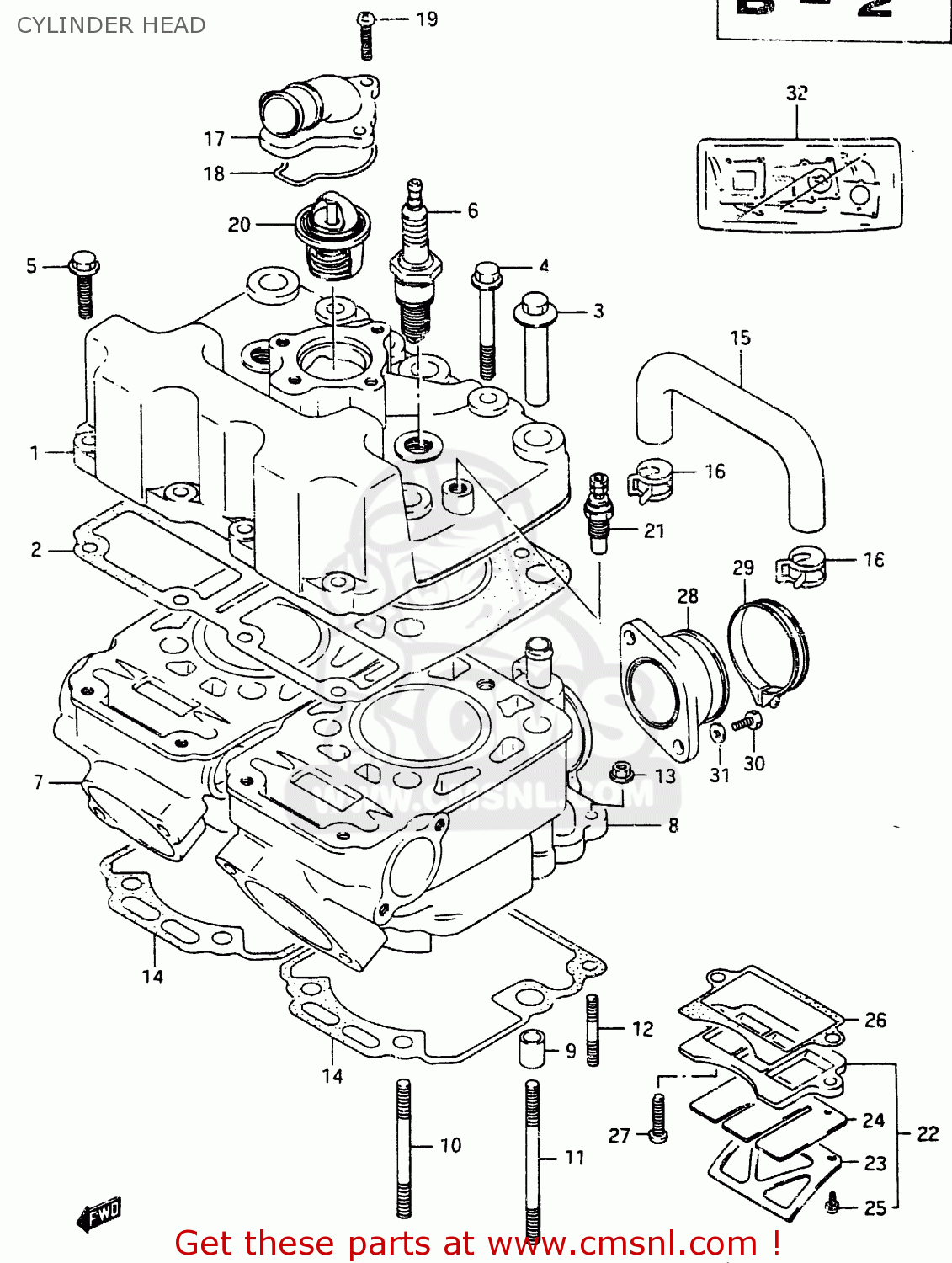

CYLINDER HEAD

ref

part #

description

quantity

1

1111140A00
ref: 1

HEAD, CYLINDER

€ 262.50

2

1114140A01
ref: 2

GASKET, CYLINDER HEAD (MCA)

€ 91.50

3

0915908050
ref: 3

NUT

€ 7.00

4

0151708504
ref: 4

BOLT, UPPER

€ 2.50

5

0151706254
ref: 5

BOLT

€ 2.50

6

0948200351
ref: 6

SPARK PLUG B9ES

€ 2.50

6

0948200349
ref: 6
E2,E4,E6,E15,E16,E21

PLUG,SPARK(BR9ES)

€ 2.50

7

1121040A01
ref: 7
TO 11210-40A02-0F0

CYLINDER, RH

€ 505.00

8

1122040A01
ref: 8
TO 11220-40A02-0F0

CYLINDER, LH

€ 505.00

9

0421111189
ref: 9

PIN

€ 2.00

10

0910808122
ref: 10

STUD BOLT (L:80)

€ 4.50

11

0910808123
ref: 11

BOLT,STUD

€ 4.50

12

0142106205
ref: 12

STUD BOLT L:20

€ 2.50

13

0831616064
ref: 13

NUT 6MM

€ 2.50

14

1124116701
ref: 14

GASKET,CYLINDE (MCA)

€ 13.50

15

1126540A00
ref: 15

HOSE, JOINT

€ 14.50

16

1129516700
ref: 16

CLIP, HOSE

€ 2.50

17

1766140A00
ref: 17

COVER, THERMOSTAT

€ 75.50

18

1766916701
ref: 18

O RING,THERMOSTAT COVER

€ 8.00

19

0211206205
ref: 19

SCREW

€ 2.00

20

1767040A00
ref: 20

THERMOSTAT,WATER

€ 54.00

21

3485016700
ref: 21

GAUGE, WATER TEMP

€ 75.00

22

1315040A00
ref: 22

VALVE ASSY, REED

€ 94.50

23

1315216700
ref: 23

STOPPER,REED VALVE

€ 7.00

24

1315316700
ref: 24

VALVE,REED

€ 7.50

25

1315414500
ref: 25

SCREW,REED VALVE

€ 1.50

26

1315640A00
ref: 26

GASKET,REED VALVE (NAS)

€ 3.00

27

0211206208
ref: 27

SCREW

€ 2.00

28

1311016700
ref: 28

PIPE,INTAKE

€ 30.50

29

0940242207
ref: 29

CLAMP

€ 4.50

30

0110706165
ref: 30

BOLT 6X16

€ 2.00

31

0832221064
ref: 31

WASHER

€ 2.00

32

1140140870
ref: 32
OPT

GASKET SET (MCA)

€ 148.50

all assemblies
