HANDLEBAR
RG250 1987 (H) (E01 E04 E21)

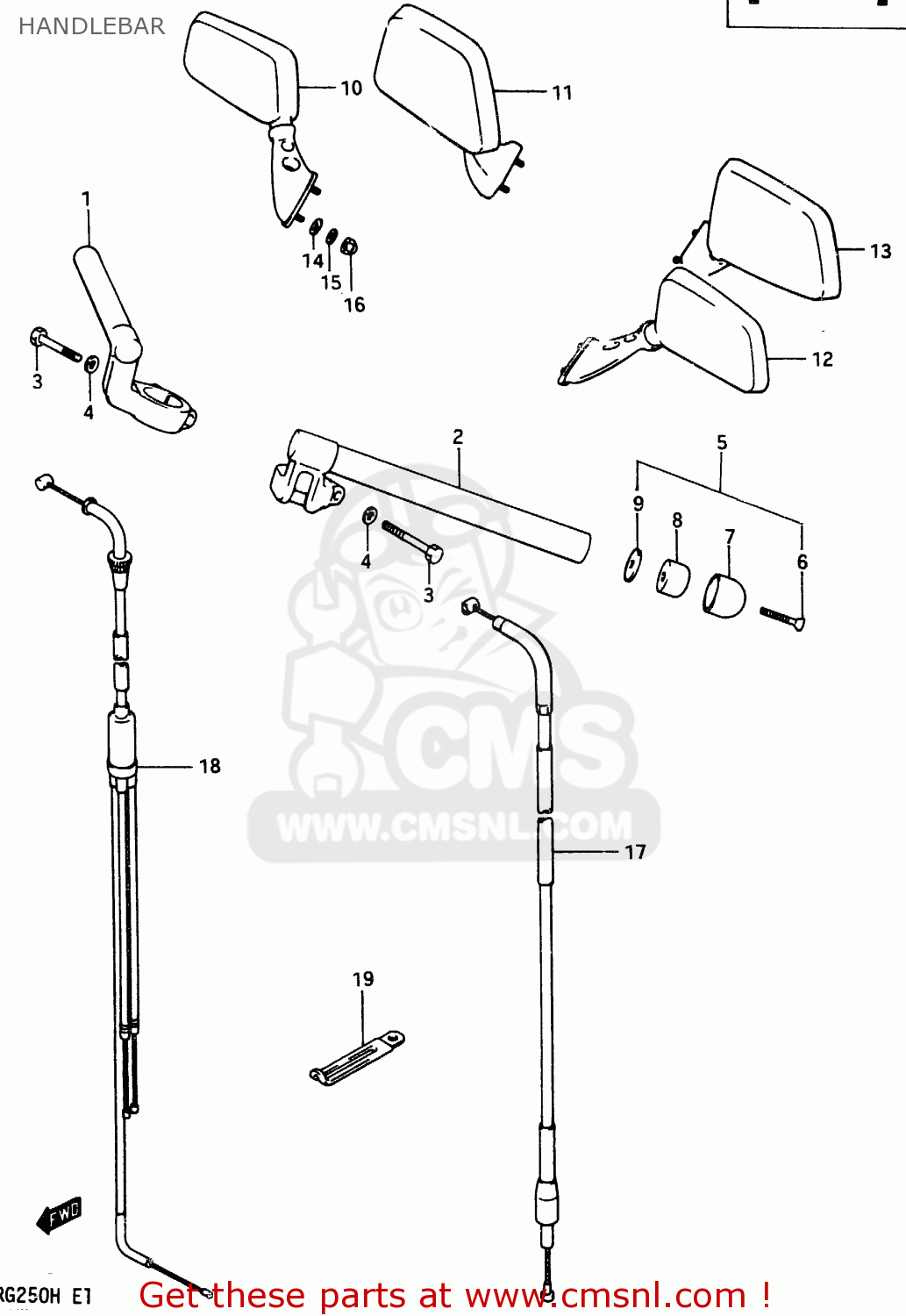

Handlebar diagram RG250 1987 (H) (E01 E04 E21)
HANDLEBAR RG250 1987 (H) (E01 E04 E21)
×
prices are in EUR
ref
part #
description
quantity
1
5611140A01
ref: 1
MODEL G
HANDLEBAR, RH
€ 218.00
1
5611140A10
ref: 1
MODEL H
HANDLEBAR, RH
€ 218.00
1
5611140A20
ref: 1
E22
HANDLEBAR, RH
€ 218.00
2
5615140A01
ref: 2
MODEL G
HANDLEBAR, LH
€ 270.50
2
5615140A10
ref: 2
MODEL H
HANDLEBAR, LH
€ 143.50
2
5615140A20
ref: 2
E22
HANDLEBAR, LH
€ 143.50
3
0110708555
ref: 3
BOLT 8X55
€ 3.00
4
0832121084
ref: 4
WASHER,LOCK,8.
€ 2.50
5
5620020810
ref: 5
BALANCER SET
€ 24.00
6
0213206355
ref: 6
SCREW
€ 2.00
7
5627433400
ref: 7
CAP,HANDLE BALANCER
€ 43.00
8
5627133400
ref: 8
BALANCER,HANDLEBAR
€ 18.50
9
5627534400
ref: 9
SPACER,BALANCER
€ 2.50
10
5650020A00
ref: 10
MIRROR ASSY, REAR VIEW RH
€ 40.00
10
5650020A10
ref: 10
E16,E24
MIRROR ASSY, REAR VIEW RH
€ 52.50
11
5650027A10
ref: 11
E2,E4,E21,E34
MIRROR ASSY,RH
€ 53.50
12
5660020A00
ref: 12
MIRROR ASSY L
€ 40.00
12
5660020A10
ref: 12
E16,E24
MIRROR ASSY, REAR VIEW LH
€ 52.50
13
5660027A10
ref: 13
E2,E4,E21,E34
MIRROR ASSY,LH
€ 53.50
14
0832221064
ref: 14
WASHER
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
€ 2.00
16
0831311065
ref: 16
NUT 6MM
€ 2.00
17
5820040A00
ref: 17
CABLE ASSY,CLUTCH
€ 23.00
18
5830040A00
ref: 18
MODEL G
CABLE ASSY, THROTTLE
€ 47.00
18
5830040A10
ref: 18
MODEL H
CABLE ASSY, THROTTLE
€ 52.00
19
0940406415
ref: 19
MODEL G
CLAMP
€ 3.00
19
0940406404
ref: 19
MODEL H
CLAMP
€ 3.00
