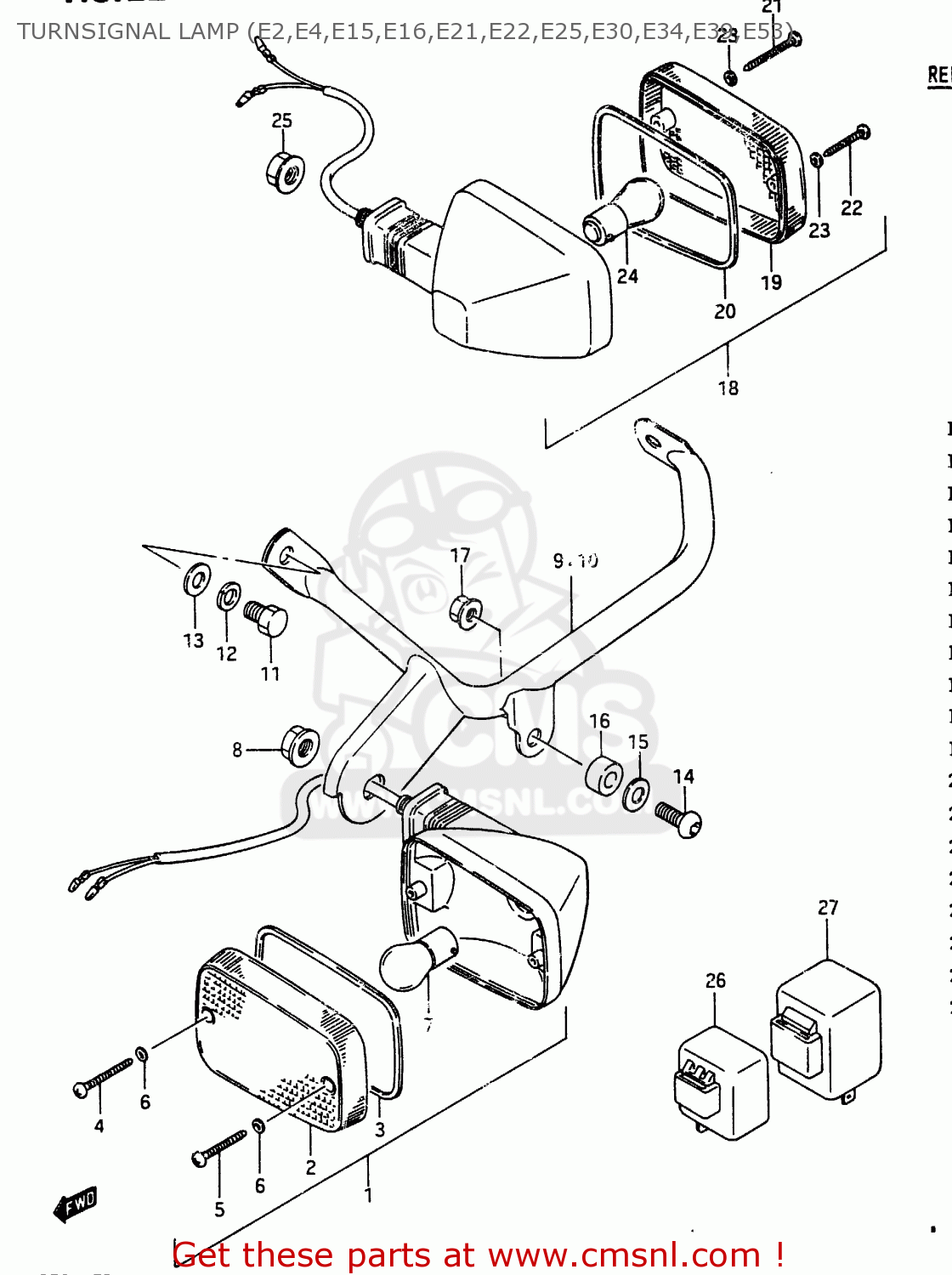

TURNSIGNAL LAMP (E2,E4,E15,E16,E21,E22,E25,E30,E34,E39,E53)

ref

part #

description

quantity

1

3560114A23999
ref: 1
E2,E4,E15,E21,E25,E3

LAMP ASSY,FR

€ 120.50

1

3560114A53999
ref: 1
E16,E22,E39

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 127.50

2

3561202181
ref: 2

LENS,FR

€ 9.00

3

3561348700
ref: 3

GASKET (NAS)

€ 7.50

4

3562302180
ref: 4

SCREW,TURN SIG LENS FITTING

€ 2.00

5

0321104308
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0831626105
ref: 8

NUT

€ 3.50

9

3567040A01
ref: 9

BRACKET, FRONT TURNSIGNAL RH

€ 27.00

10

3568040A01
ref: 10

BRACKET,FR TURNSIGNAL,L

€ 31.50

11

0110708125
ref: 11

BOLT

€ 1.50

12

0832121084
ref: 12

WASHER,LOCK,8.

€ 2.50

13

0832211084
ref: 13

WASHER

€ 1.50

14

0913906042
ref: 14

SCREW(6X30)

€ 7.50

15

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50

16

0918006116
ref: 16

SPACER(6.1X8X14.5)

€ 2.00

17

0831931065
ref: 17

NUT

€ 2.50

18

3560314A22999
ref: 18

LAMP ASSY, REAR TURN SIGNAL

€ 93.50

18

3560314A52
ref: 18
E22

LAMP ASSY,RR

€ 71.50

19

3565202181
ref: 19

LENS,RR

€ 8.50

20

3561348700
ref: 20

GASKET (NAS)

€ 7.50

21

3562302180
ref: 21

SCREW,TURN SIG LENS FITTING

€ 2.00

22

0321104308
ref: 22

SCREW

€ 1.50

23

3562743010
ref: 23

GASKET (NAS)

€ 2.00

24

0947112045
ref: 24

BULB(12V21W)

€ 5.00

25

0831626105
ref: 25

NUT

€ 3.50

26

3861031310
ref: 26

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

27

3861045091
ref: 27
E2 F.NO.109399~,E22

RELAY ASSY,TUR

€ 67.50

TURNSIGNAL LAMP (E2,E4,E15,E16,E21,E22,E25,E30,E34,E39,E53)

all assemblies
