ELECTRICAL

RG250 1987 (H) (E01 E04 E21)

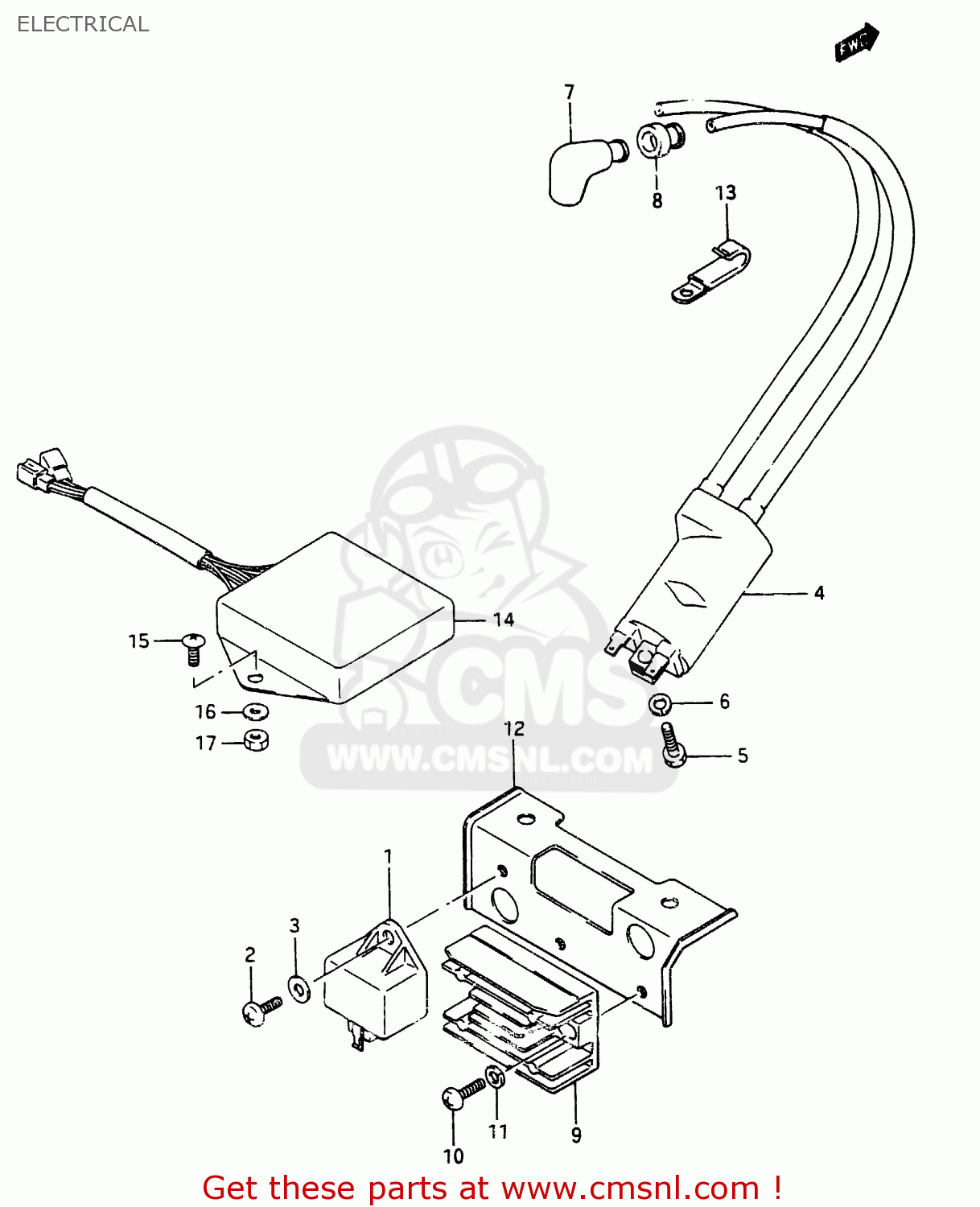

Electrical diagram RG250 1987 (H) (E01 E04 E21)

ELECTRICAL RG250 1987 (H) (E01 E04 E21)

ELECTRICAL RG250 1987 (H) (E01 E04 E21)

prices are in EUR

ref

part #

description

quantity

1

3290040A00
ref: 1

CDI UNIT

€ 92.00

2

0211206126
ref: 2

SCREW

€ 1.50

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

3341016701
ref: 4

COIL ASSY,IGNITION

€ 385.00

5

0912806006
ref: 5

BOLT(6X20)

€ 2.00

6

0832121067
ref: 6

WASHER,LOCK

€ 2.50

7

3351020A00
ref: 7

CAP,SPARK PLUG

€ 23.00

8

3354298000
ref: 8

SEAL,SPARK PLU

€ 4.50

9

3280040A00
ref: 9

RECTIFIER ASSY

€ 306.50

10

0211206206
ref: 10

SCREW

€ 2.00

11

0832121066
ref: 11

WASHER,LOCK

€ 2.00

12

4741116701
ref: 12

HOLDER, ELECTRIC PARTS

€ 7.50

13

0940306307
ref: 13

CLAMP

€ 4.50

14

3291040A00
ref: 14

UNIT, EXHAUST VALVE CONTROL

€ 278.00

15

0214206126
ref: 15

SCREW

€ 2.00

16

0832221066
ref: 16

WASHER, LOWER

€ 2.00

17

0831011066
ref: 17

NUT

€ 2.00
