FRAME COVER (MODEL G)
RG250 1987 (H) (E01 E04 E21)

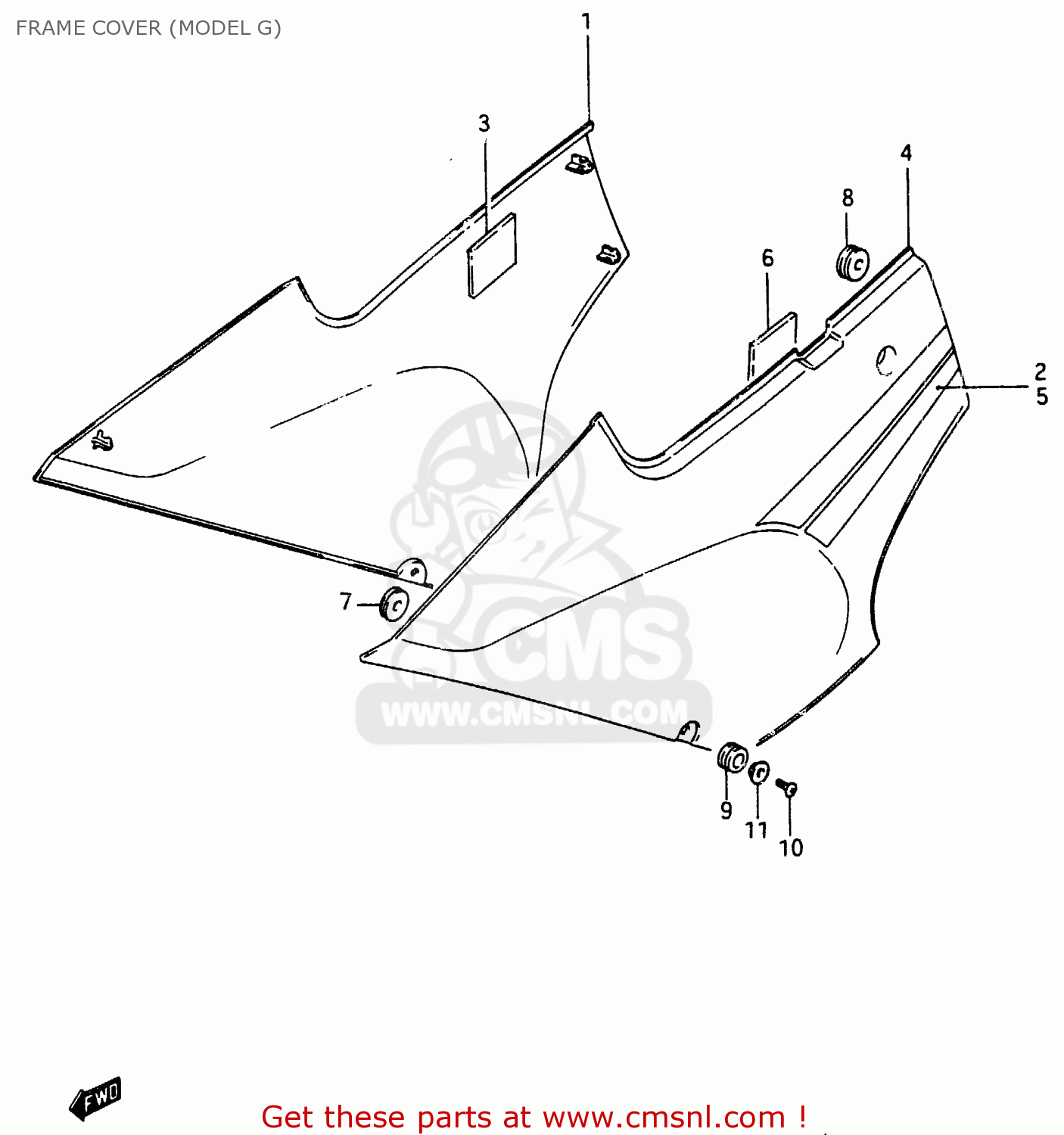

Frame cover (model g) diagram RG250 1987 (H) (E01 E04 E21)
FRAME COVER (MODEL G) RG250 1987 (H) (E01 E04 E21)
×
prices are in EUR
ref
part #
description
quantity
1
4711040A107TG
ref: 1
E2,E16,E24,E30
COVER, FRAME RH
€ 111.50
1
4711040A307TG
ref: 1
COVER,FRAME,R
€ 111.50
1
4711040A1085J
ref: 1
E2,E16,E24,E30
COVER, FRAME RH
€ 111.50
1
4711040A3085J
ref: 1
COVER, FRAME RH
€ 111.50
2
6813040A0081F
ref: 2
FOR 7TG
TAPE SET, FRAME COVER RH
€ 31.50
2
6813040A007YM
ref: 2
FOR 85J
TAPE SET, FRAME COVER RH
€ 0.00
3
3365137000
ref: 3
PROTECTOR(170X95X3.0)
€ 5.00
4
4721040A107TG
ref: 4
E2,E16,E24,E30
COVER, FRAME LH
€ 111.50
4
4721040A307TG
ref: 4
COVER,FRAME LH
€ 111.50
4
4721040A1085J
ref: 4
E2,E16,E24,E30
COVER, FRAME LH
€ 111.50
4
4721040A3085J
ref: 4
COVER, FRAME LH
€ 111.50
5
6814040A0081F
ref: 5
FOR 7TG
TAPE SET, FRAME COVER LH
€ 16.50
5
6814040A007YM
ref: 5
FOR 85J
TAPE SET, FRAME COVER LH
€ 0.00
6
3365201A00
ref: 6
PROTECTOR,BATTERY
€ 5.00
7
0932008028
ref: 7
CUSHION
€ 2.50
8
0932008018
ref: 8
CUSHION
€ 4.00
9
4716934A00
ref: 9
CUSHION,COVER HEAD
€ 5.00
10
0214205128
ref: 10
SCREW
€ 1.50
11
0916905010
ref: 11
WASHER
€ 3.00
