REAR SWINGING ARM
RG250 1987 (H) (E01 E04 E21)

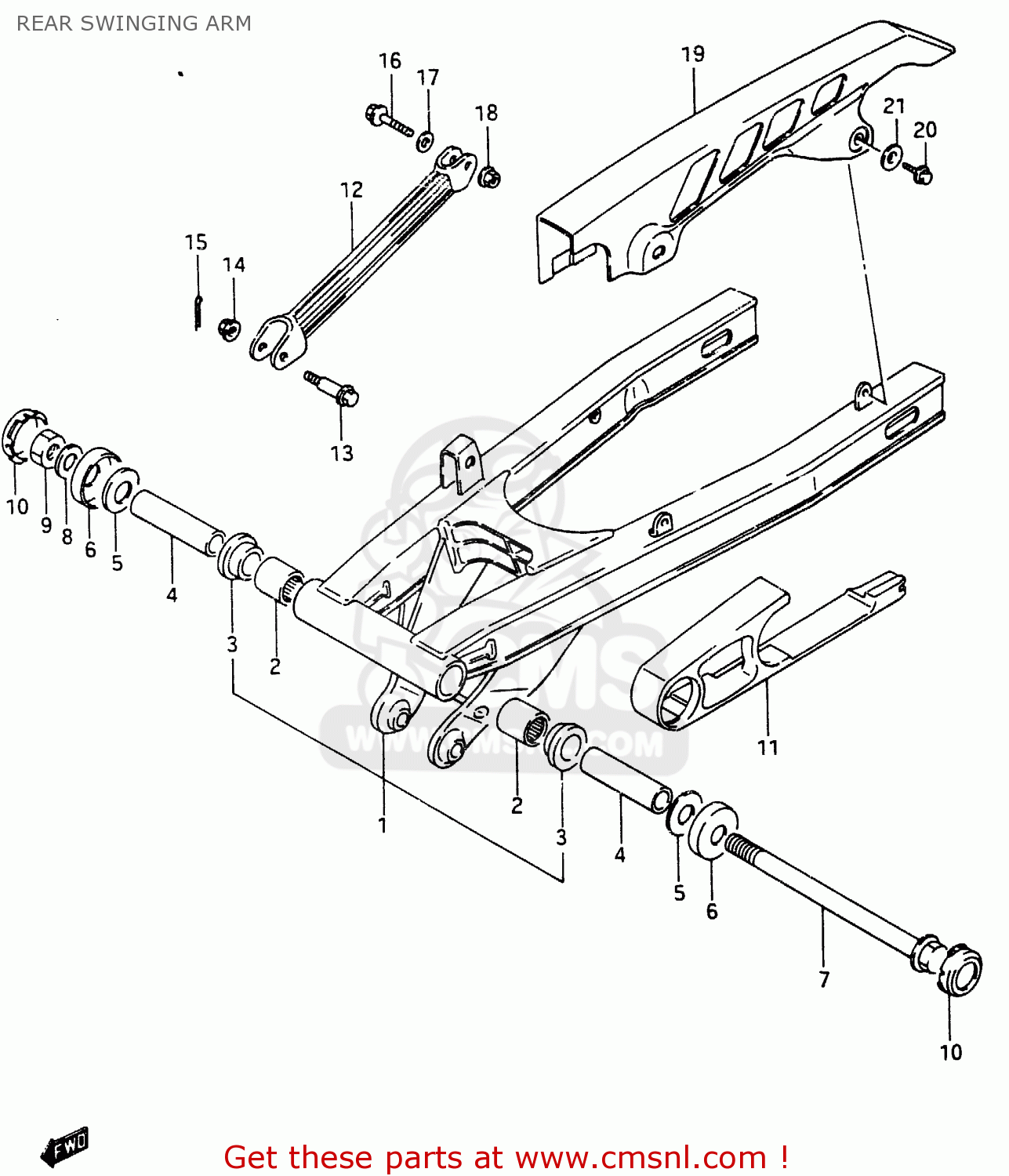

Rear swinging arm diagram RG250 1987 (H) (E01 E04 E21)
REAR SWINGING ARM RG250 1987 (H) (E01 E04 E21)
×
prices are in EUR
ref
part #
description
quantity
1
6100040A00
ref: 1
SWINGING ARM ASSY, REAR
€ 594.00
2
0926320039
ref: 2
BEARING(20X27X30)
€ 21.00
3
6126116700
ref: 3
BUSHING
€ 20.50
4
6125116700
ref: 4
SPACER, PIVOT
€ 21.00
5
0821114341
ref: 5
WASHER
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7
6121116701
ref: 7
SHAFT, PIVOT
€ 23.50
8
0832211148
ref: 8
WASHER
€ 2.00
9
0915914017
ref: 9
NUT
€ 9.00
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
€ 4.00
11
6127340A00
ref: 11
BUFFER, CHAIN TACH DIFENCE
€ 29.50
12
6431004A00
ref: 12
TORQUE LINK, REAR
€ 43.50
13
0911108058
ref: 13
BOLT
€ 4.00
14
0831616088
ref: 14
NUT
€ 2.50
15
0411120208
ref: 15
PIN 20X20
€ 1.50
16
0910010227
ref: 16
BOLT(10X38)
€ 3.50
17
0832211107
ref: 17
WASHER
€ 2.50
18
0831931107
ref: 18
NUT
€ 3.00
19
6131120A01291
ref: 19
CASE, CHAIN
€ 83.50
20
0151706105
ref: 20
BOLT
€ 2.50
21
0916906026
ref: 21
WASHER
€ 2.00
