BATTERY

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

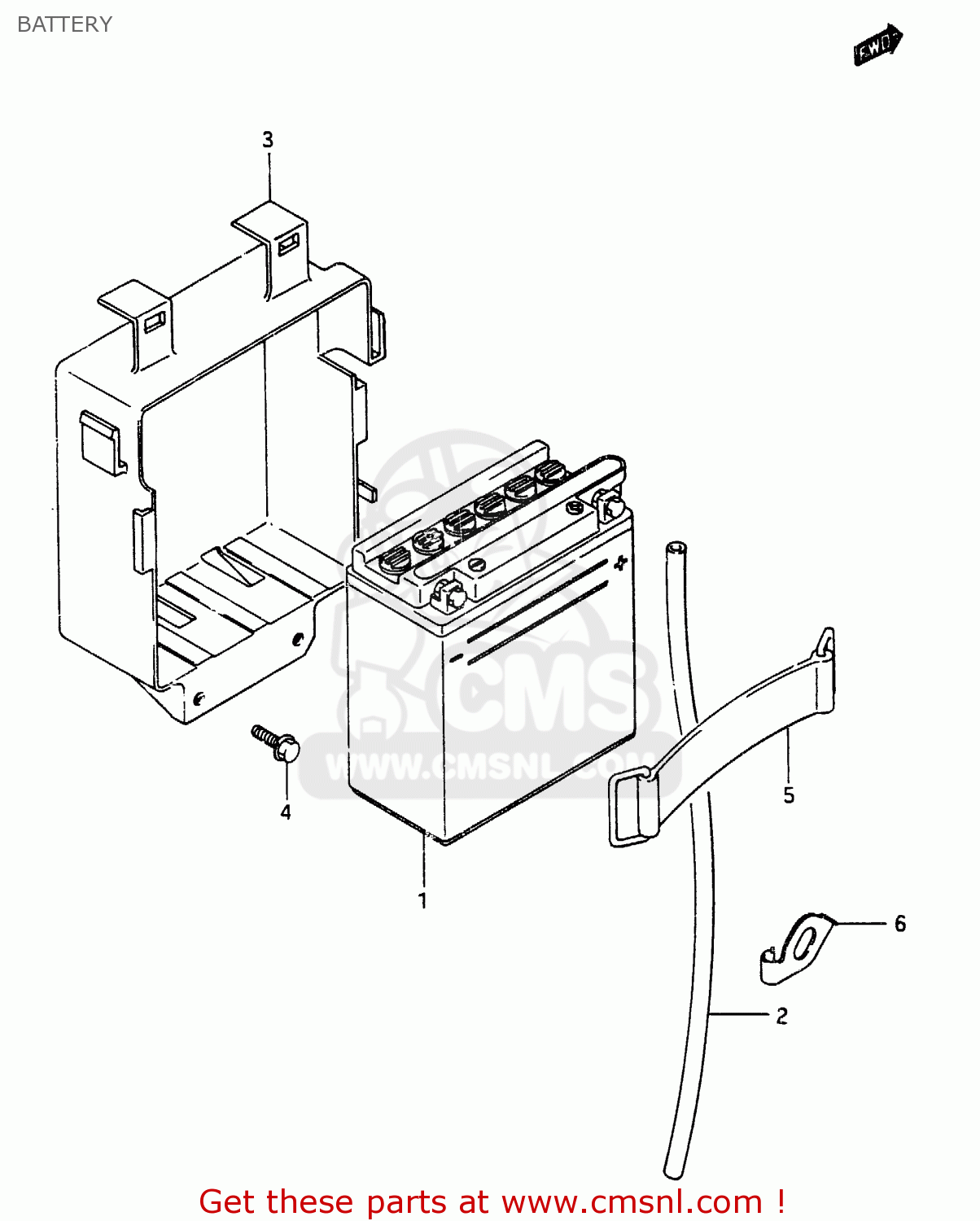

Battery diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

BATTERY RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

BATTERY RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

1

3361018010
ref: 1

BATTERY ASSEMBLY (12V)

€ 62.00

2

3368031003
ref: 2
L:600->500

HOSE,BATTERY EXHAUST

€ 4.50

3

4154040A00
ref: 3

HOLDER, BATTERY

€ 17.00

4

0151706205
ref: 4

BOLT

€ 2.50

5

0946200067
ref: 5

BAND

€ 4.50

6

3368140A00
ref: 6

CLAMP, BATTERY EXHAUST HOSE

€ 0.00
