FRONT FENDER

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

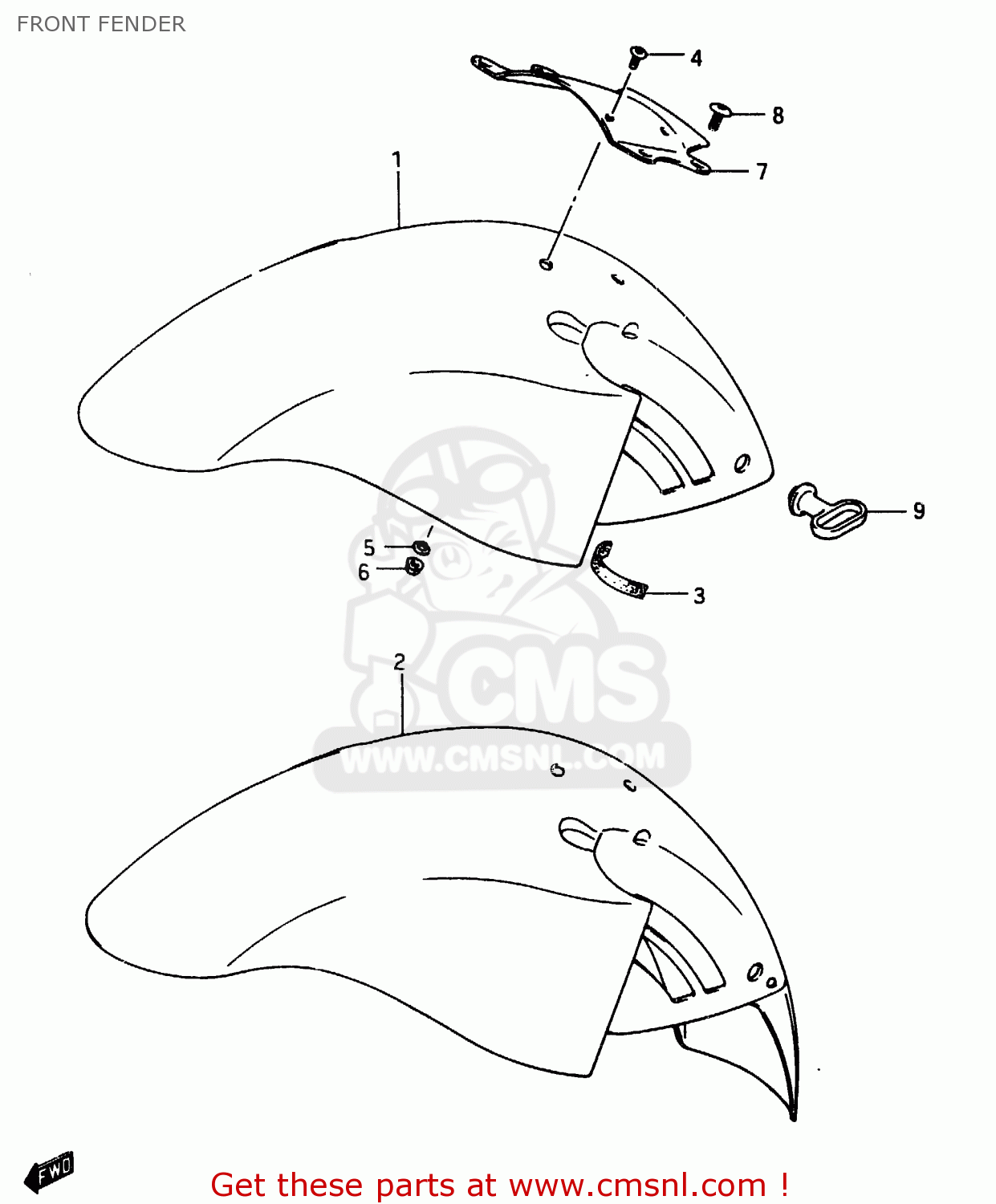

Front fender diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

FRONT FENDER RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

FRONT FENDER RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

1

5311140A0014L
ref: 1
MODEL G

FENDER,FRONT

€ 109.00

1

5311140A0017P
ref: 1
RG250H/FH

FENDER, FRONT (BLUE)

€ 109.00

1

5311140A0030H
ref: 1
RG250CH/FCH

FENDER, FRONT (WHITE)

€ 109.00

2

5311040A1014L
ref: 2
MODEL G E15,E24

FENDER, FRONT (WHITE)

€ 0.00

2

5311040A1030H
ref: 2
RG250CH/FCH E15

FENDER, FRONT (WHITE)

€ 0.00

3

5314540A00
ref: 3

CUSHION,FR FENDER

€ 1.50

4

0913905025
ref: 4

SCREW(5X14)

€ 2.00

5

0916905009
ref: 5

WASHER

€ 3.50

6

0831931056
ref: 6

NUT

€ 3.00

7

5311440A00
ref: 7

BRACE, FRONT FENDER

€ 22.50

8

0913906027
ref: 8

SCREW(6X12)

€ 3.00

9

5862121203A
ref: 9

GUIDE,CABLE

€ 7.50
