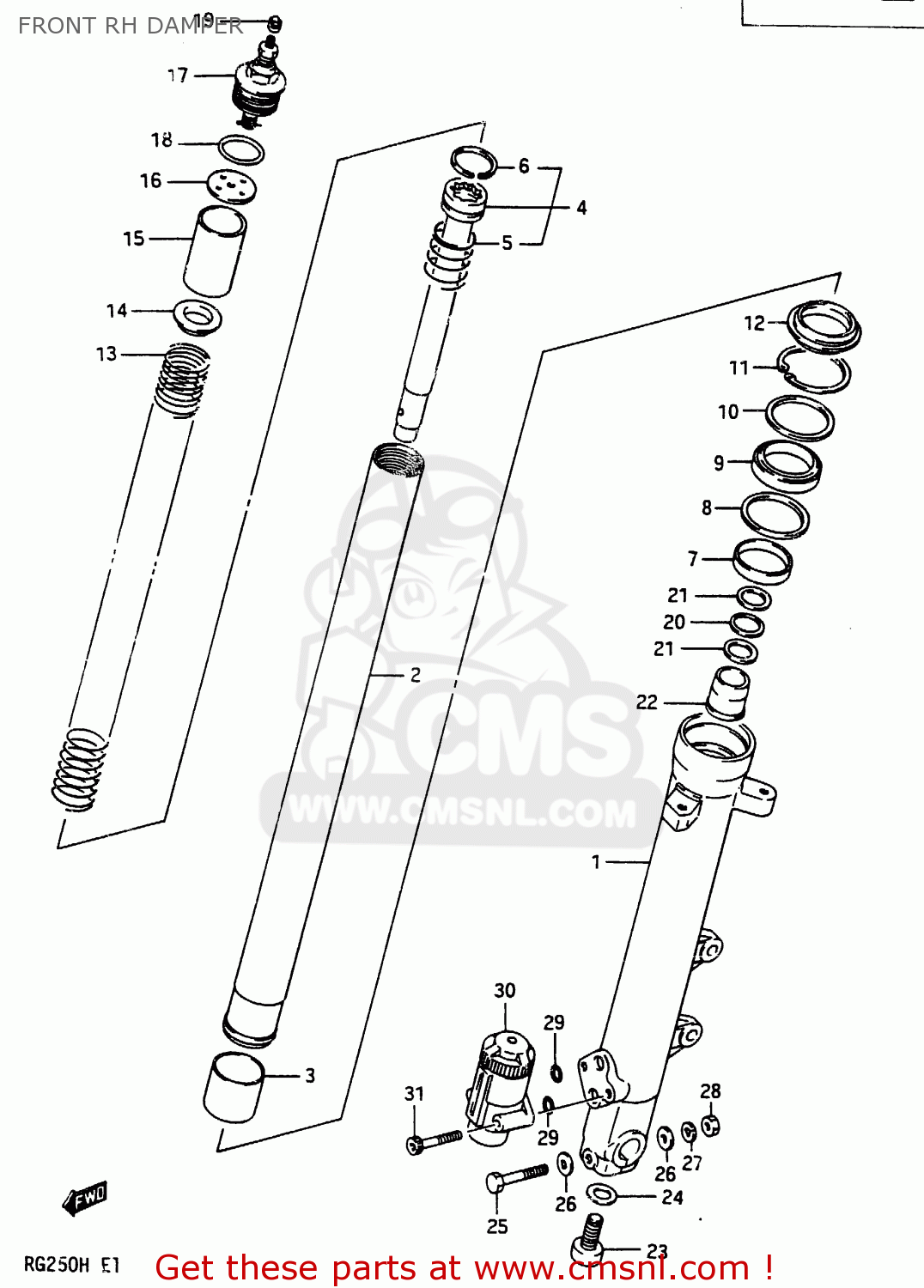

FRONT RH DAMPER

ref

part #

description

quantity

0

5110340A10
ref: 0

DAMPER ASSY, RH

€ 575.00

1

5113040A00
ref: 1

TUBE, OUTER RH

€ 236.00

2

5111040A00
ref: 2

TUBE, INNER

€ 207.50

3

5112140A00
ref: 3

PISTON

€ 14.50

4

5114604A00
ref: 4

CYLINDER

€ 0.00

5

5117743400
ref: 5

SPRING,REBOUND

€ 0.00

6

5119643400
ref: 6

RING,PISTON

€ 7.00

7

5116740A00
ref: 7

METAL,SLIDE

€ 8.00

8

5115816710
ref: 8

WASHER,OIL SEAL INNER

€ 5.50

9

5115340A00
ref: 9

SEAL,OIL

€ 15.00

10

5115816700
ref: 10

WASHER,OIL SEAL OUTER

€ 4.50

11

5115630400
ref: 11

5115630400

12

5117340A00
ref: 12

SEAL,DUST

€ 13.50

13

5117140A00
ref: 13

SPRING

€ 40.00

14

5117216700
ref: 14

GUIDE,SPRING

€ 5.00

15

5117640A00
ref: 15

SPACER

€ 7.00

16

5117440A00
ref: 16

WASHER

€ 3.50

17

5135140A00
ref: 17

CAP

€ 61.50

18

5111740A00
ref: 18

O RING

€ 2.50

19

5129440400
ref: 19

CAP,VALVE AIR

€ 4.00

20

5112345420
ref: 20

WASHER

€ 3.50

21

5112545420
ref: 21

SPRING,LEAF

€ 3.50

22

5119545420
ref: 22

PIECE,OIL LOCK

€ 15.50

23

5114716510
ref: 23

BOLT,FORK CYLINDER(10X25)

€ 3.50

24

5114841310
ref: 24

GASKET (NAS)

€ 2.50

25

0110708555
ref: 25

BOLT 8X55

€ 3.00

26

0832221088
ref: 26

WASHER

€ 2.00

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0831012088
ref: 28

NUT

€ 2.00

29

5179900A00
ref: 29

O RING

€ 5.50

30

5177040A00
ref: 30

P.D.F. ASSY

€ 169.50

31

0711006408
ref: 31

BOLT

€ 2.50

all assemblies
