REAR FENDER

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

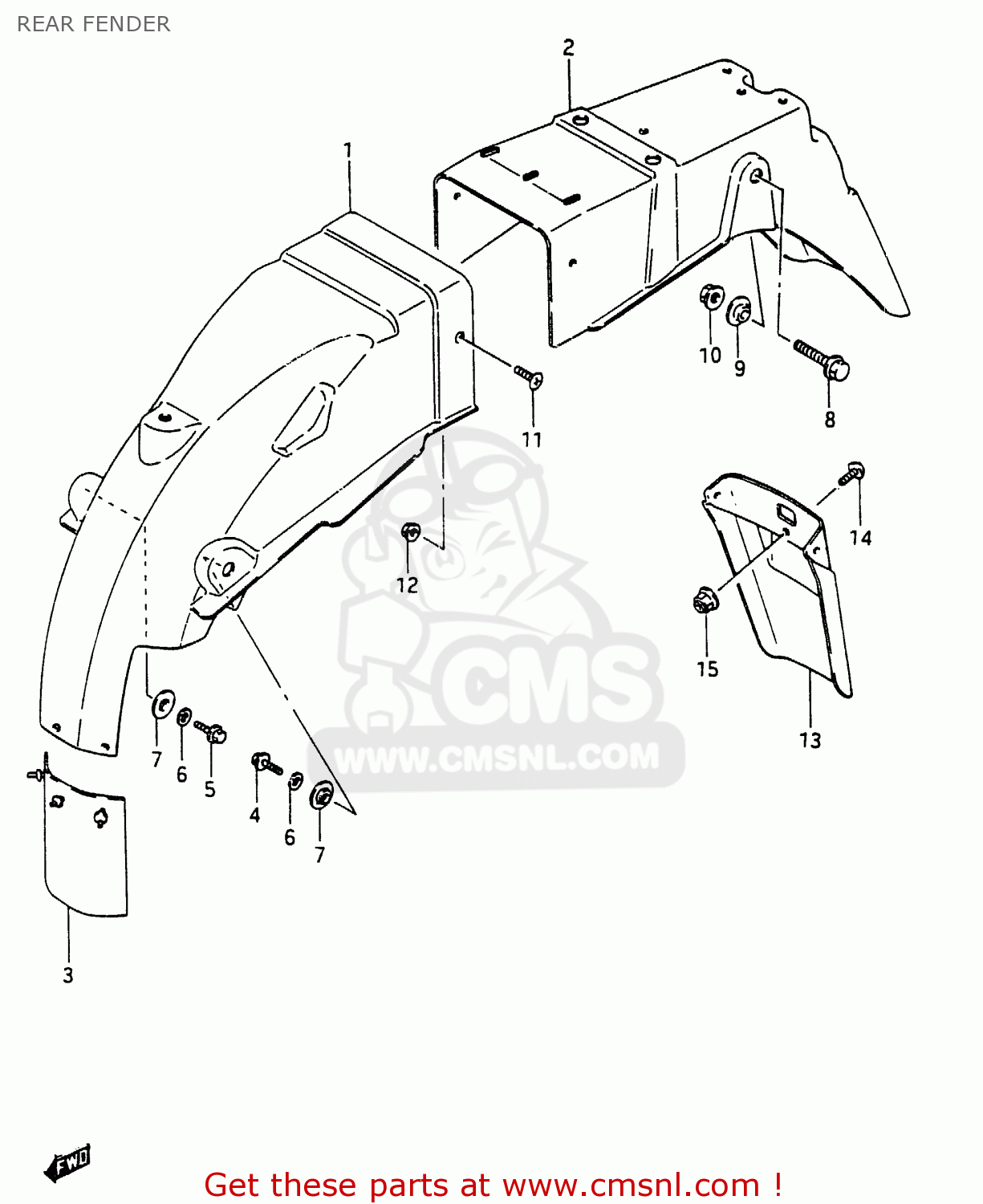

Rear fender diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

6311016700
ref: 1

BODY, REAR FENDER FRONT

€ 66.00

6311340A00
ref: 2

BODY, REAR FENDER REAR

€ 61.00

6311340A10
ref: 2
E15,E16

BODY, REAR FENDER REAR

€ 61.00

6341116700
ref: 3

MUD GUARD

€ 26.00

0110706127
ref: 4

BOLT

€ 2.00

0110706166
ref: 5

BOLT

€ 2.00

0832221067
ref: 6

WASHER

€ 2.00

0916906026
ref: 7

WASHER

€ 2.00

0151708358
ref: 8

BOLT

€ 3.50

0916908026
ref: 9

WASHER

€ 2.00

0831931087
ref: 10

NUT

€ 2.50

0214206167
ref: 11

SCREW

€ 2.00

0831931067
ref: 12

NUT

€ 2.50

6331140A00
ref: 13
E15

EXTENSION, REAR FENDER

€ 0.00

6331116701
ref: 13
E16

EXTENSION, REAR FENDER

€ 69.50

0214205164
ref: 14
E15,E16

SCREW

€ 2.50

0831931056
ref: 15
E15,E16

NUT

€ 3.00

REAR FENDER

all assemblies
