RIGHT HANDLE SWITCH (MODEL G)

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

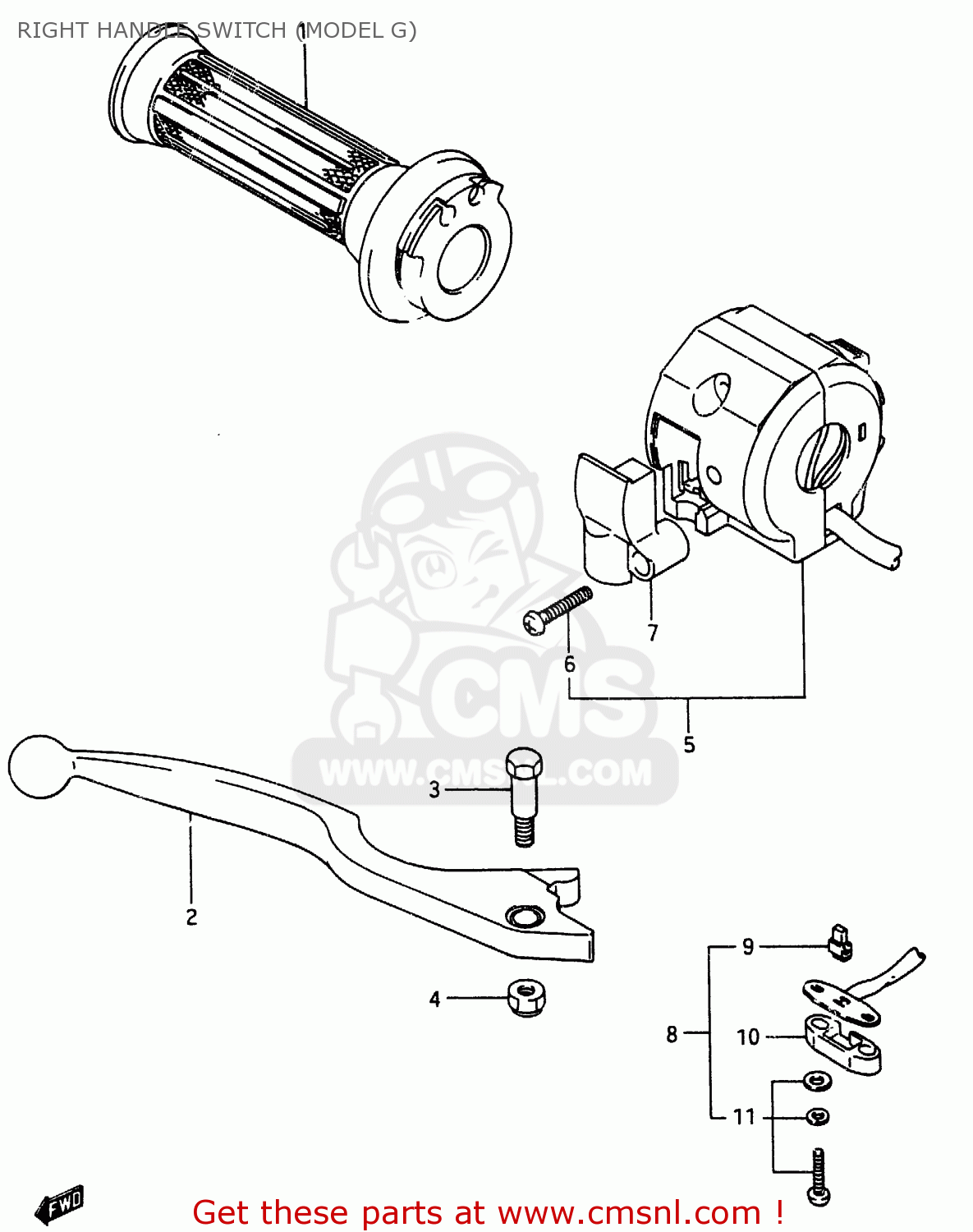

Right handle switch (model g) diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

RIGHT HANDLE SWITCH (MODEL G) RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

RIGHT HANDLE SWITCH (MODEL G) RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

1

5711016710
ref: 1

GRIP,THROTTLE

€ 27.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743149100
ref: 3

BOLT,LEVER PIVOT

€ 6.00

4

0831921065
ref: 4

NUT

€ 2.50

5

3720040A10
ref: 5

SWITCH ASSY, HANDLE RH

€ 0.00

5

3720040A20
ref: 5
E2,E15,E16,E21,E25,E

SWITCH ASSY, HANDLE RH

€ 121.00

6

0211205205
ref: 6

SCREW 5X20

€ 2.50

7

3729220A00
ref: 7

COVER

€ 20.50

8

5746049300
ref: 8

SWITCH ASSEMBLY

€ 40.00

9

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

10

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

11

0912503105
ref: 11

SCREW

€ 2.50
