WIRING HARNESS

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

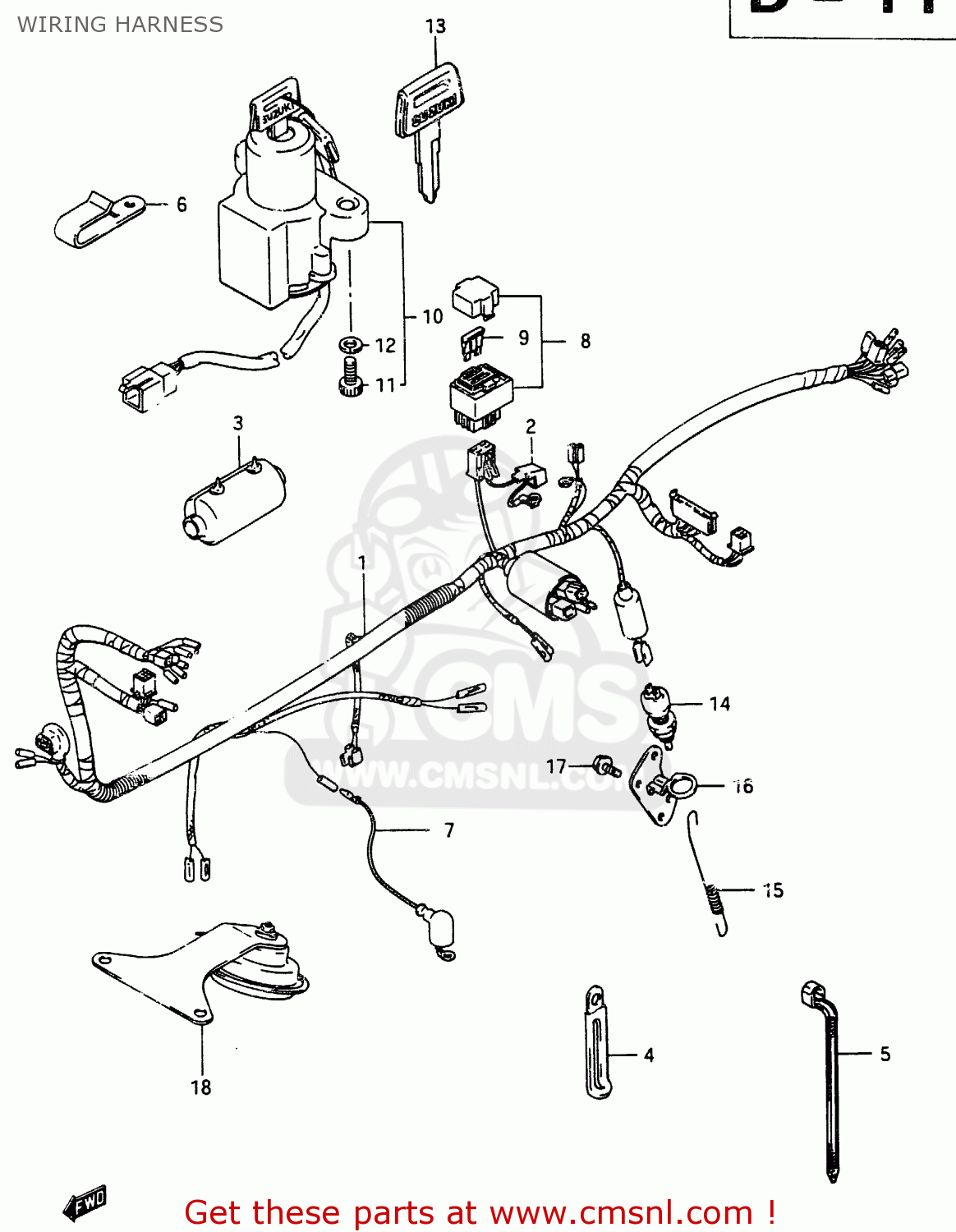

Wiring harness diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

WIRING HARNESS RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
WIRING HARNESS RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
WIRING HARNESS RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
prices are in EUR
ref
part #
description
quantity
1
3661040A20
ref: 1
HARNESS, WIRING
€ 162.00
2
3362440A01
ref: 2
CAP, BATTERY (+) TERMINAL
€ 7.50
3
3661830610
ref: 3
BOOT,WIRING HARNESS
3661830610
€ 9.50
4
0940406401
ref: 4
CLAMP L:35
0940406401
€ 2.50
4
0940406404
ref: 4
CLAMP
0940406404
€ 3.00
5
0940711401
ref: 5
CLAMP(L:95)
0940711401
€ 2.50
5
0940714403
ref: 5
CLAMP(L:125)
0940714403
€ 2.50
5
0940718402
ref: 5
CLAMP(L:165)
0940718402
€ 2.50
6
3661904A00
ref: 6
CLAMP,HANDLE SWITCH
3661904A00
€ 5.50
7
3685138401
ref: 7
WIRE,WATER TEMPERATURE GAUGE
3685138401
€ 4.50
8
3674009301
ref: 8
BOX ASSEMBLY,FUSE
€ 18.00
9
0948120101
ref: 9
FUSE(20A)
0948120101
€ 2.00
10
3710016710
ref: 10
LOCK ASSY
3710016710
€ 159.00
10
3711016710
ref: 10
E15,E22
SWITCH ASSY, IGNITION
€ 0.00
11
3715247011
ref: 11
BOLT
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
0832121067
€ 2.50
13
3714516700
ref: 13
OPT
KEY,BLANK
3714516700
€ 11.00
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306059
ref: 15
SPRING
€ 3.50
16
4325040A00
ref: 16
PLATE, STOP LAMP SWITCH
€ 0.00
17
0151706105
ref: 17
BOLT
€ 2.50
18
3850040A00
ref: 18
HORN ASSY
3850040A00
€ 62.50
18
3850040A10
ref: 18
MODEL G E21,E34
HORN ASSY
€ 0.00
18
3850040A20
ref: 18
MODEL H E4,E34,E39
HORN ASSY
€ 62.50
