FRAME COVER (MODEL H)

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

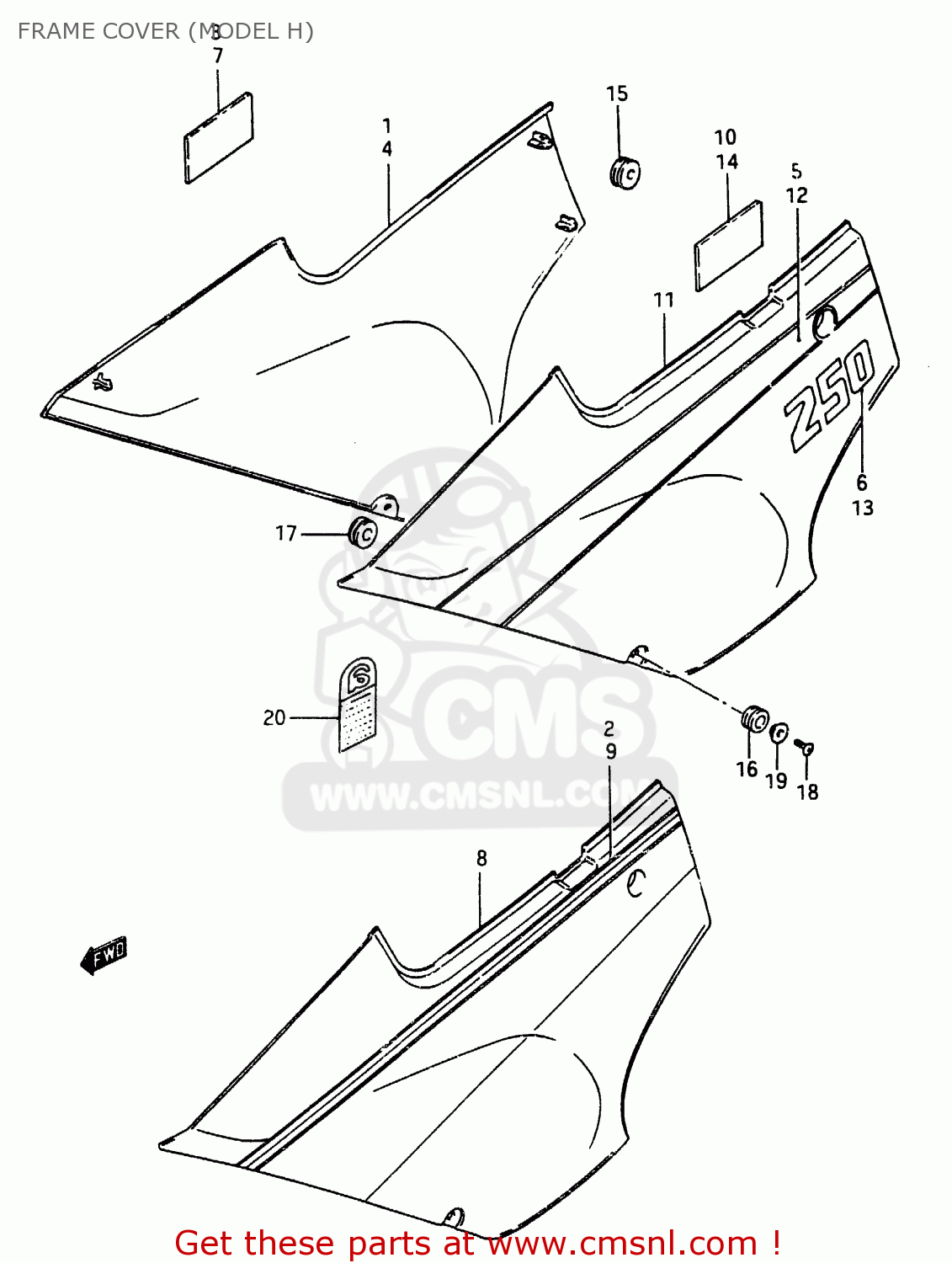

Frame cover (model h) diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

FRAME COVER (MODEL H) RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
FRAME COVER (MODEL H) RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
FRAME COVER (MODEL H) RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)
prices are in EUR
ref
part #
description
quantity
1
4711040A907PD
ref: 1
RG250H
COVER, FRAME RH
€ 111.50
1
4711040A807PD
ref: 1
RG250FH
COVER, FRAME RH
€ 111.50
2
6813040A408WE
ref: 2
RG250H/FH
TAPE SET, FRAME COVER RH
€ 0.00
3
3365137000
ref: 3
RG250H/FH
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
4
4762040A1085K
ref: 4
RG250CH
COVER, FRAME RH
€ 111.50
4
4762040A109EG
ref: 4
RG250CH
COVER, FRAME RH
€ 111.50
4
4762040A0085K
ref: 4
RG250FCH
COVER, FRAME RH
€ 111.50
4
4762040A009EG
ref: 4
RG250FCH
COVER, FRAME RH
€ 111.50
4
4762040A3085K
ref: 4
RG250CH E22
COVER, FRAME RH
€ 0.00
4
4762040A309EG
ref: 4
RG250CH E22
COVER, FRAME RH
€ 0.00
4
4762040A2085K
ref: 4
RG250FCH E22
COVER, FRAME RH
€ 0.00
4
4762040A209EG
ref: 4
RG250FCH E22
COVER, FRAME RH
€ 0.00
5
6813040A308WY
ref: 5
RG250CH/FCH,FOR 85K
TAPE SET, FRAME COVER RH
€ 0.00
5
6813040A309EH
ref: 5
RG250CH/FCH,FOR 9EG
TAPE SET, FRAME COVER RH
€ 0.00
6
6813140A20064
ref: 6
RG250CH/FCH
EMBLEM (WHITE)
€ 8.50
7
3365137000
ref: 7
RG250CH/FCH
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
8
4721040A907PD
ref: 8
RG250H
COVER, FRAME LH
€ 111.50
8
4721040A807PD
ref: 8
RG250FH
COVER, FRAME LH
€ 111.50
9
6814040A408WE
ref: 9
RG250H/FH
TAPE SET, FRAME COVER LH
€ 0.00
10
3365201A00
ref: 10
RG250H/FH
PROTECTOR,BATTERY
3365201A00
€ 5.00
11
4772040A1085K
ref: 11
RG250CH
COVER, FRAME LH
€ 111.50
11
4772040A109EG
ref: 11
RG250CH
COVER, FRAME LH
€ 111.50
11
4772040A0085K
ref: 11
RG250FCH
COVER, FRAME LH
€ 111.50
11
4772040A009EG
ref: 11
RG250FCH
COVER, FRAME LH
€ 111.50
11
4772040A3085K
ref: 11
RG250CH E22
COVER, FRAME LH
€ 0.00
11
4772040A309EG
ref: 11
RG250CH E22
COVER, FRAME LH
€ 0.00
11
4772040A2085K
ref: 11
RG250FCH E22
COVER, FRAME LH
€ 0.00
11
4772040A209EG
ref: 11
RG250FCH E22
COVER, FRAME LH
€ 0.00
12
6814040A308WY
ref: 12
RG250CH/FCH,FOR 85K
TAPE SET, FRAME COVER LH
€ 0.00
12
6814040A309EH
ref: 12
RG250CH/FCH,FOR 9EG
TAPE SET, FRAME COVER LH
€ 0.00
13
6813140A20064
ref: 13
RG250CH/FCH
EMBLEM (WHITE)
€ 8.50
14
3365137000
ref: 14
RG250CH/FCH
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
15
0932008028
ref: 15
CUSHION
0932008028
€ 2.50
16
0932008018
ref: 16
CUSHION
0932008018
€ 4.00
17
4716934A00
ref: 17
CUSHION,COVER HEAD
4716934A00
€ 5.00
18
0214205127
ref: 18
SCREW
0214205127
€ 1.50
18
0912505054
ref: 18
E22
SCREW
0912505054
€ 2.50
19
0916905010
ref: 19
WASHER
0916905010
€ 3.00
20
1196782000
ref: 20
E2
LABEL,ASBESTOS WARNING
€ 2.00
