REAR SHOCK ABSORBER

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

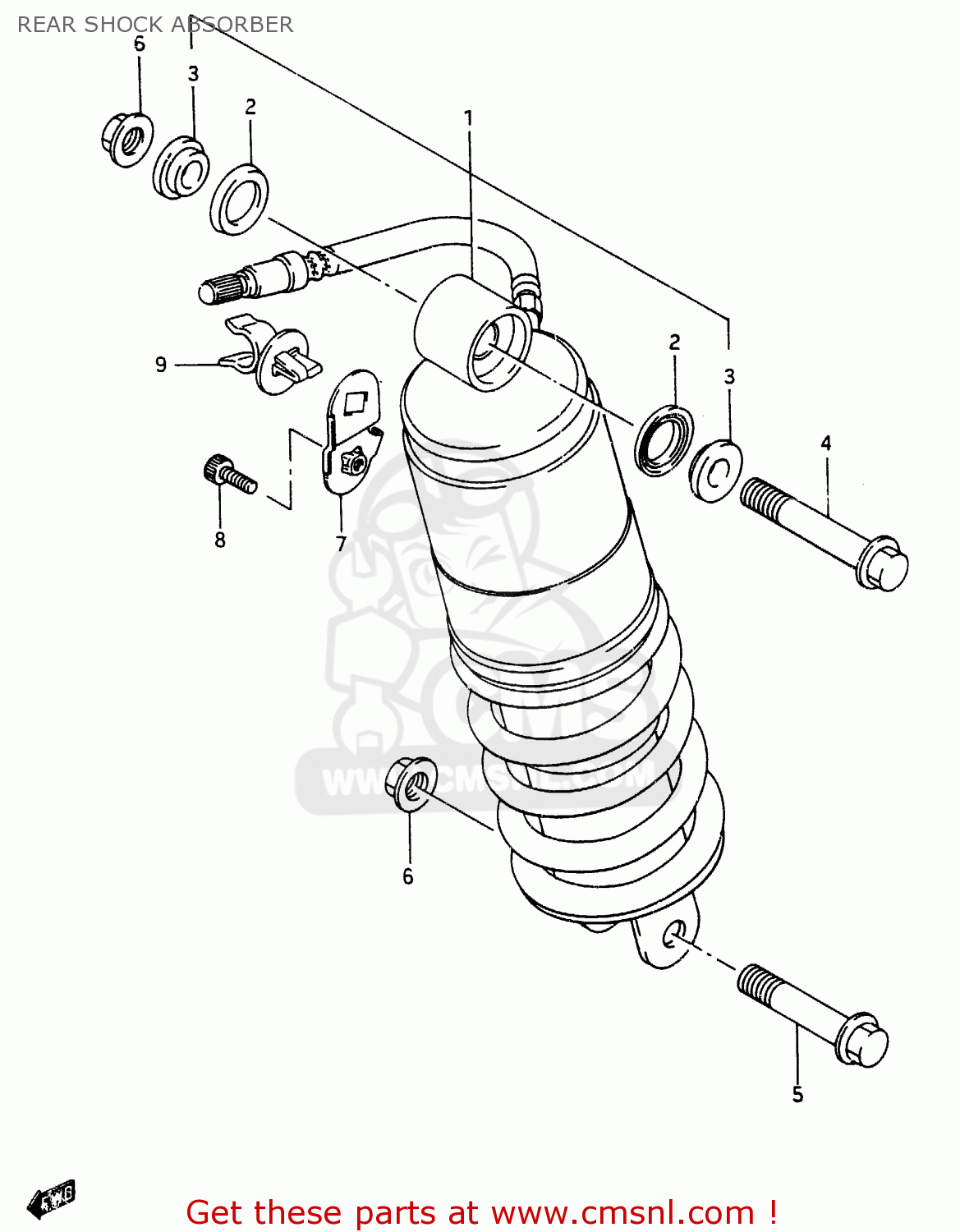

Rear shock absorber diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

REAR SHOCK ABSORBER RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

REAR SHOCK ABSORBER RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

1

6210040A00
ref: 1

ABSORBER ASSY, REAR SHOCK

€ 720.50

2

6222620900
ref: 2

DUST SEAL

€ 8.00

3

6268420900
ref: 3

SPACER

€ 8.00

4

0910310027
ref: 4

BOLT(10X58)

€ 3.00

5

0910310045
ref: 5

BOLT(10X50)

€ 3.50

6

0915910058
ref: 6

NUT

€ 4.00

7

6241040A01
ref: 7

BRACKET, ABSORBER HOSE

€ 0.00

8

0711006166
ref: 8

BOLT

€ 2.50

9

0940312306
ref: 9

CLAMP

€ 0.00
