FRAME

RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

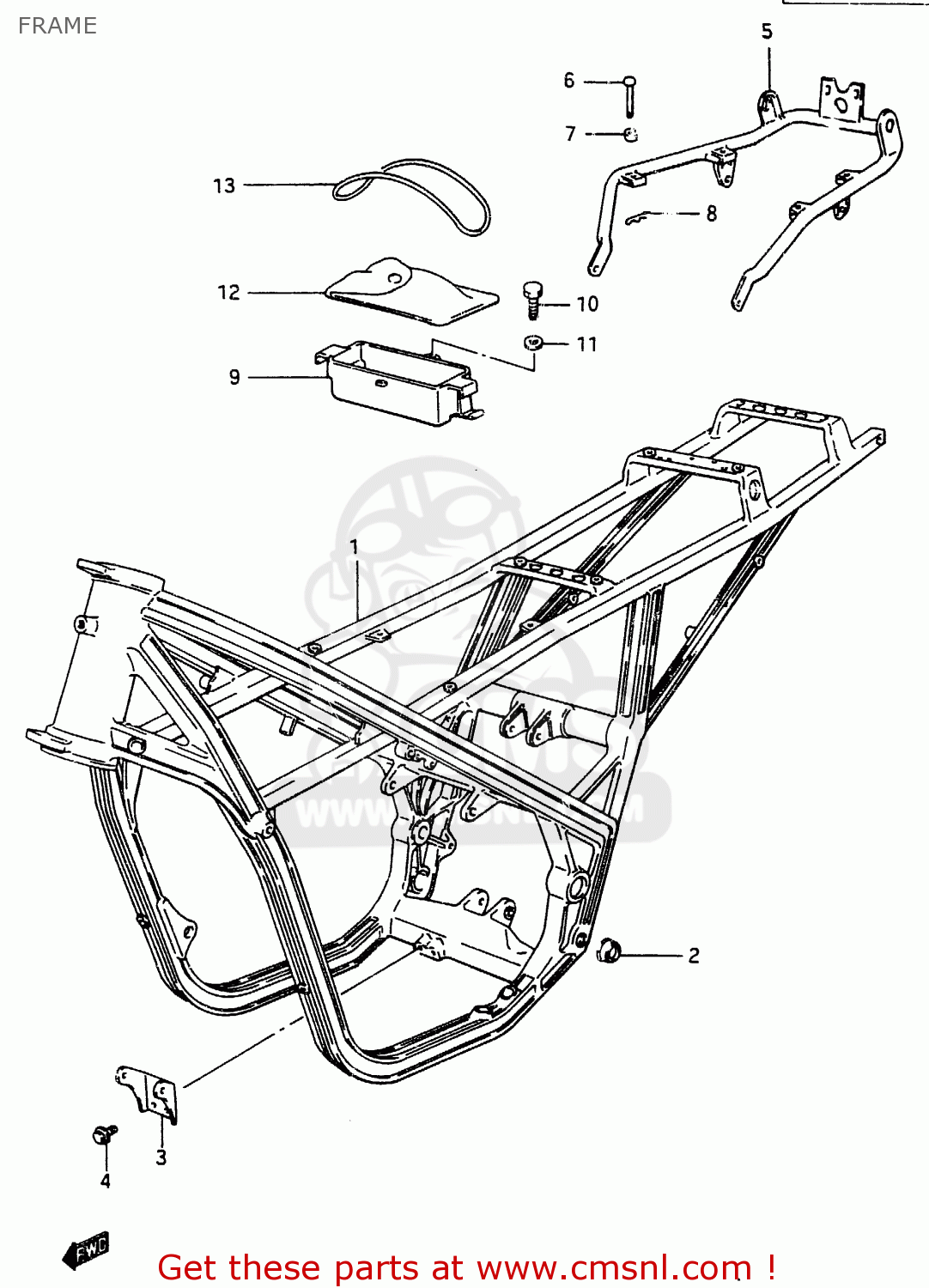

Frame diagram RG250C 1987 (H) (E01 E02 E04 E15 E16 E21 E22 E25 E39 E53)

prices are in EUR

ref

part #

description

quantity

4110040A00
ref: 1
MODEL G

FRAME

€ 2,216.50

4110040A01
ref: 1
MODEL H

FRAME

€ 2,157.50

4110040A10
ref: 1
E15, MODEL G E22

FRAME

€ 0.00

4110040A20
ref: 1
MODEL H E22

FRAME

€ 0.00

4358540A01
ref: 2

CAP, FRAME SIDE

€ 2.00

4191140A01
ref: 3

PLATE, ENGINE MOUNTING

€ 10.00

0151706125
ref: 4

BOLT 6X12

€ 2.50

4398040A01
ref: 5

GRIP, REAR

€ 78.00

4162533400
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

4162633400
ref: 7

SPACER,GRIP ROD

€ 2.50

0938506001
ref: 8

CLIP

€ 11.00

4155116701
ref: 9

HOLDER, TOOL

€ 8.00

0910006067
ref: 10

BOLT(6X14)

€ 2.50

0916006007
ref: 11

WASHER

€ 2.00

0980000262
ref: 12

TOOL ASSY

€ 53.00

0928076005
ref: 13

O RING(D:3.5,ID:76)

€ 3.50
