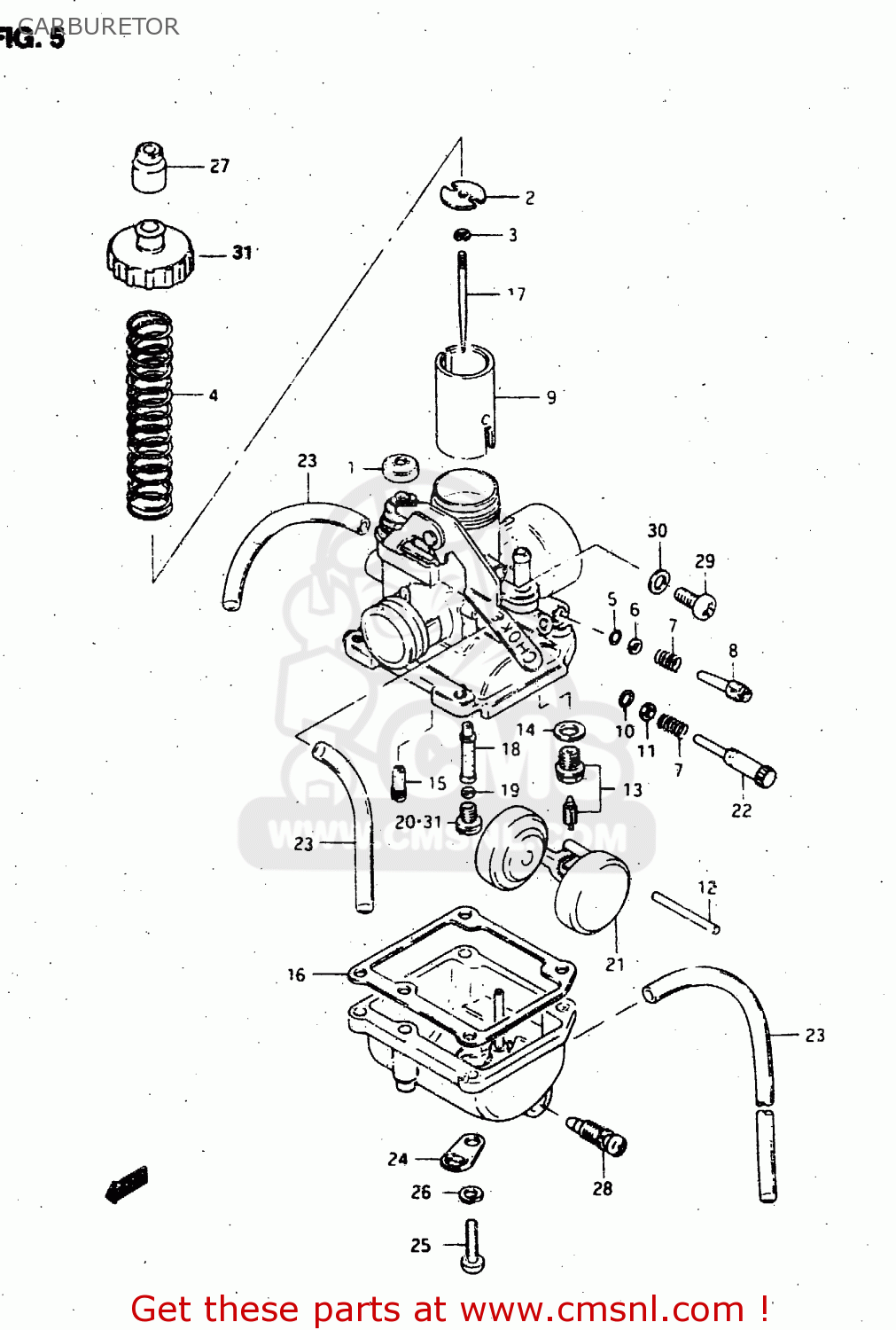

CARBURETOR

ref

part #

description

quantity

0

13200136A0
ref: 0
P29, P53

CARBURETOR ASSY

€ 179.50

0

13200136B0
ref: 0
P4

CARBURETOR ASSY

€ 150.00

1

1368209210
ref: 1
P29, P53

CAP,PLUNGER

€ 3.00

1

1368298010
ref: 1
P4

RUBBER,THROTTLE VALVE CAP

€ 3.00

2

1358136212
ref: 2

STOPPER,NEEDLE CLIP

€ 4.50

3

1339440D00
ref: 3

CLIP,NEEDLE

€ 3.00

4

1357304700
ref: 4

SPRING,THROTTLE VALVE

€ 5.50

5

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

6

1329129900
ref: 6

WASHER

€ 2.00

7

1326835010
ref: 7

SPRING

€ 3.00

8

1326929900
ref: 8

SCREW,PILOT AIR

€ 11.50

9

1355104700
ref: 9
P29, P53

VALVE,THROTTLE(CA:2.5)

€ 30.50

9

13551136B0
ref: 9
P4

VALVE,THROTTLE(CA:2.5)

€ 19.50

10

1329533010
ref: 10

O RING

€ 4.50

11

1329135010
ref: 11

WASHER

€ 2.50

12

1325401010
ref: 12

PIN,FLOAT

€ 3.00

13

1337043011
ref: 13

VALVE ASSY,NEEDLE

€ 43.00

14

1339201010
ref: 14

GASKET,NEEDLE VALVE (NAS)

€ 2.50

15

0949220008
ref: 15
P29, P53

JET,PILOT 20

€ 10.00

15

0949212007
ref: 15
P4

JET,PILOT(12.5)

€ 9.00

16

1325123010
ref: 16

GASKET,FLOAT CHAMBER (NAS)

€ 4.50

17

13383136A0
ref: 17

NEEDLE,JET(3CV1)

€ 13.50

18

0949400419
ref: 18
P29, P53

JET,NEEDLE

€ 12.00

18

0949400460
ref: 18
P4

JET,NEEDLE(F-1)

€ 12.50

19

1338604700
ref: 19

PACKING,MAIN JET (NAS)

€ 2.50

20

0949177005
ref: 20
P29, P53

JET,MAIN(77.5)

€ 16.50

20

0949170010
ref: 20
P4

JET,MAIN(70)

€ 9.00

21

1325004700
ref: 21

FLOAT

€ 21.50

22

1326729A00
ref: 22

ADJUSTER

€ 10.00

23

0935230503600
ref: 23
L:600->200

HOSE(3X5X600)

€ 8.00

24

1369330010
ref: 24

PLATE

€ 4.00

25

0211204163
ref: 25

SCREW 4X16

€ 1.00

26

0832101043
ref: 26

WASHER,LOCK

€ 2.00

27

1368104010
ref: 27

CAP

€ 3.00

28

1324713A00
ref: 28

SCREW,DRAIN

€ 5.50

29

0211205063
ref: 29

SCREW

€ 2.00

30

1352346110
ref: 30

GASKET,DRAIN PLUG (NAS)

€ 3.00

31

1326104700
ref: 31

CAP

€ 17.50

all assemblies
