WIRING HARNESS

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

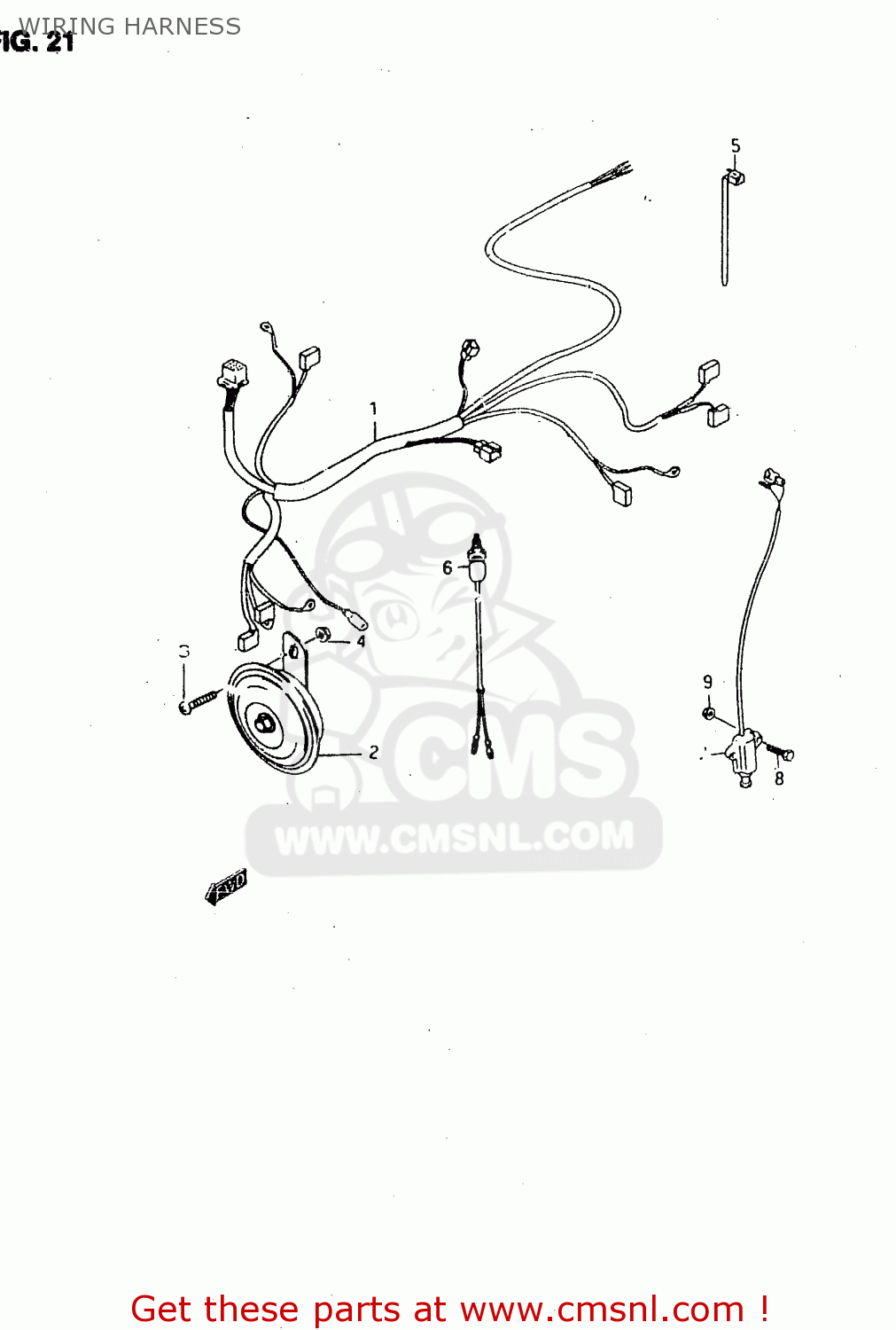

Wiring harness diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

prices are in EUR

ref

part #

description

quantity

3661003E10
ref: 1
MODEL T; MODEL V:, P

HARNESS, WIRING

€ 0.00

3661003E20
ref: 1
MODEL V:P29 ~F.NO.VT

HARNESS, WIRING

€ 85.50

3661003E30
ref: 1
P4

HARNESS, WIRING

€ 113.00

3661003E40
ref: 1
MODEL V:P53 F.NO.VTT

HARNESS, WIRING

€ 108.50

3661003E50
ref: 1
MODEL V:P29 F.NO.VTT

HARNESS, WIRING

€ 71.00

3850010E00
ref: 2

HORN ASSY

€ 17.50

0211206163
ref: 3

SCREW 6X16

€ 2.00

0831931063
ref: 4

NUT

€ 2.50

0940714403
ref: 5
MODEL T; MODEL V:P4,

CLAMP(L:125)

€ 2.50

0940714403
ref: 5
MODEL V:P29

CLAMP(L:125)

€ 2.50

0940725401
ref: 5

CLAMP(L:235)

€ 4.00

3685001E00
ref: 6
P4

SWITCH ASSY, STOP

€ 14.00

3784012D00
ref: 7
P4

SWITCH ASSEMBLY,SIDE STAND

€ 76.00

0150006203
ref: 8
P4

BOLT

€ 2.00

0831931063
ref: 9
P4

NUT

€ 2.50
