Buy Suzuki RMX Parts Online


RADIATOR

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

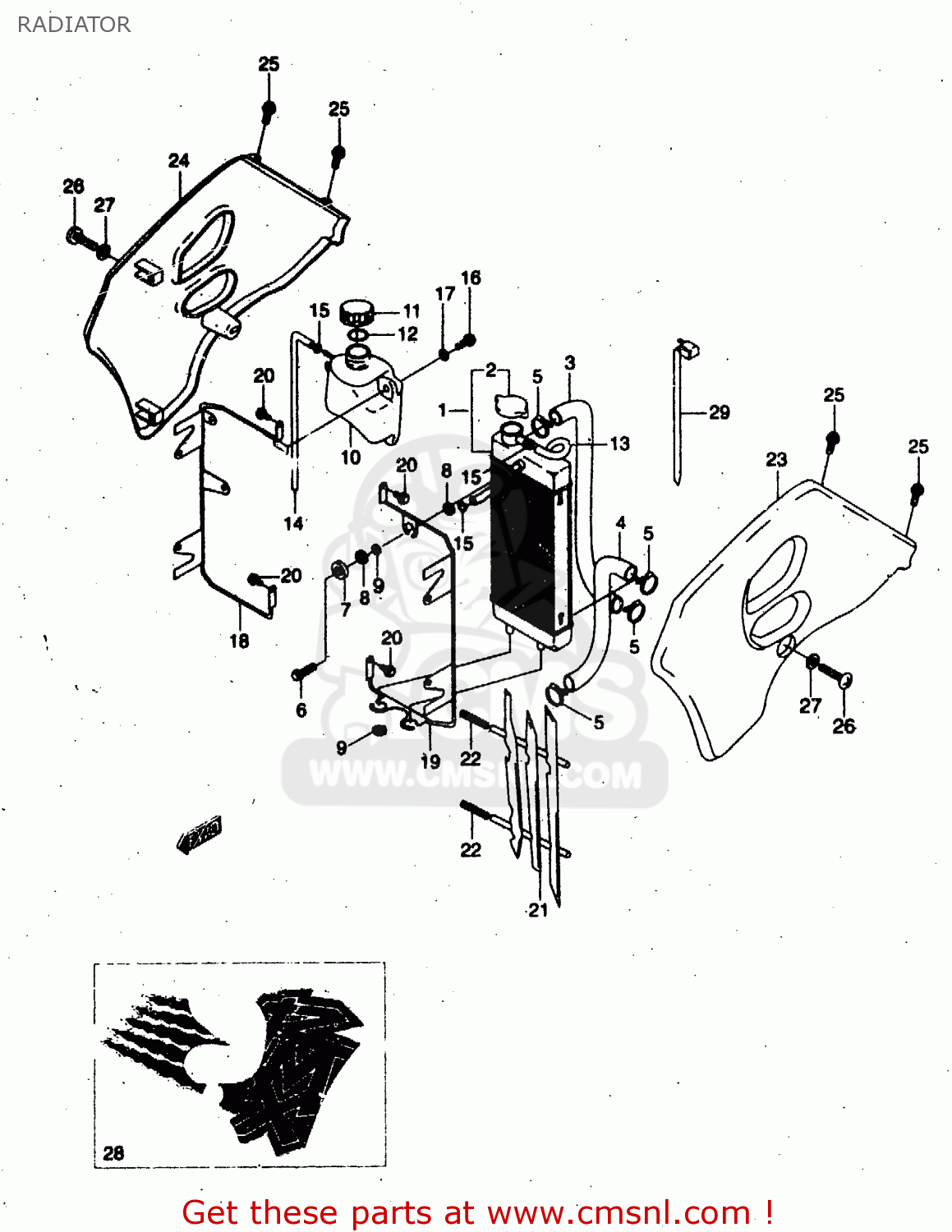

Radiator diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

RADIATOR RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)
RADIATOR RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)
RADIATOR RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)
prices are in EUR
ref
part #
description
quantity
1
1771000E00
ref: 1
RADIATOR, WATER
1771000E00
€ 180.50
2
1773000E00
ref: 2
CAP, RADIATOR
1773000E00
€ 20.50
3
1785103E00
ref: 3
HOSE, RADIATOR, INLET
1785103E00
€ 10.50
4
1785203E00
ref: 4
HOSE, RADIATOR, OUTLET
1785203E00
€ 51.00
5
0940228511
ref: 5
CLAMP
0940228511
€ 8.50
6
150006123
ref: 6
BOLT
€ 0.00
7
0916006109
ref: 7
WASHER(6.5X18X1.6)
0916006109
€ 2.00
8
0832201103
ref: 8
WASHER
0832201103
€ 2.50
9
0930810E01
ref: 9
CUSHION
€ 3.00
10
1791003D01
ref: 10
TANK ASSY,RESERVOIR
1791003D01
€ 39.50
11
1784513700
ref: 11
CAP,RESERVOIR TANK
1784513700
€ 11.50
12
1784413700
ref: 12
GASKET,RESERVOIR TANK CAP (NAS)
1784413700
€ 2.50
13
0935250823X
ref: 13
HOSE (L=360)
€ 13.00
14
0935250823600
ref: 14
HOSE(5X8.2X600)
0935250823600
€ 13.00
15
0940109401
ref: 15
CLAMP
€ 2.50
16
0211206163
ref: 16
SCREW 6X16
0211206163
€ 2.00
17
0916006109
ref: 17
WASHER(6.5X18X1.6)
0916006109
€ 2.00
18
1792003E00EE3
ref: 18
BRACKET
1792003E00EE3
€ 16.00
19
1793003E00EE3
ref: 19
HOLDER, RADIATOR
1793003E00EE3
€ 22.50
20
0157006123
ref: 20
BOLT
0157006123
€ 1.50
21
1782103D00
ref: 21
LOUVER,RADIATOR
1782103D00
€ 21.00
22
0944611002
ref: 22
SPRING
€ 2.50
23
1776203E0025Y
ref: 23
COVER, RADIATOR, LH
1776203E0025Y
€ 43.00
23
1776203E0034S
ref: 23
COVER, RADIATOR, LH
1776203E0034S
€ 37.50
23
1776203E00VE1
ref: 23
COVER, RADIATOR, LH
1776203E00VE1
€ 36.50
24
1776103E0025Y
ref: 24
COVER, RADIATOR, RH
1776103E0025Y
€ 48.00
24
1776103E0034S
ref: 24
COVER, RADIATOR, RH
1776103E0034S
€ 37.50
24
1776103E00VE1
ref: 24
COVER, RADIATOR, RH
1776103E00VE1
€ 36.50
25
0214205103
ref: 25
SCREW
0214205103
€ 2.50
26
0211206103
ref: 26
SCREW
0211206103
€ 1.50
27
0916006109
ref: 27
WASHER(6.5X18X1.6)
0916006109
€ 2.00
28
6813003E0025Y
ref: 28
MODEL T; MODEL V:P4
EMBLEM SET (YELLOW)
6813003E0025Y
€ 68.00
28
6813003E1025Y
ref: 28
MODEL V:P29, P53
EMBLEM SET (YELLOW)
€ 41.50
28
6813003E10VE1
ref: 28
MODEL V:P29, P53
EMBLEM SET (VIOLET)
6813003E10VE1
€ 44.00
28
6813003E0034S
ref: 28
MODEL T; MODEL V:P4
EMBLEM SET (BLUE)
6813003E0034S
€ 64.50
29
0940714403
ref: 29
CLAMP(L:125)
0940714403
€ 2.50
