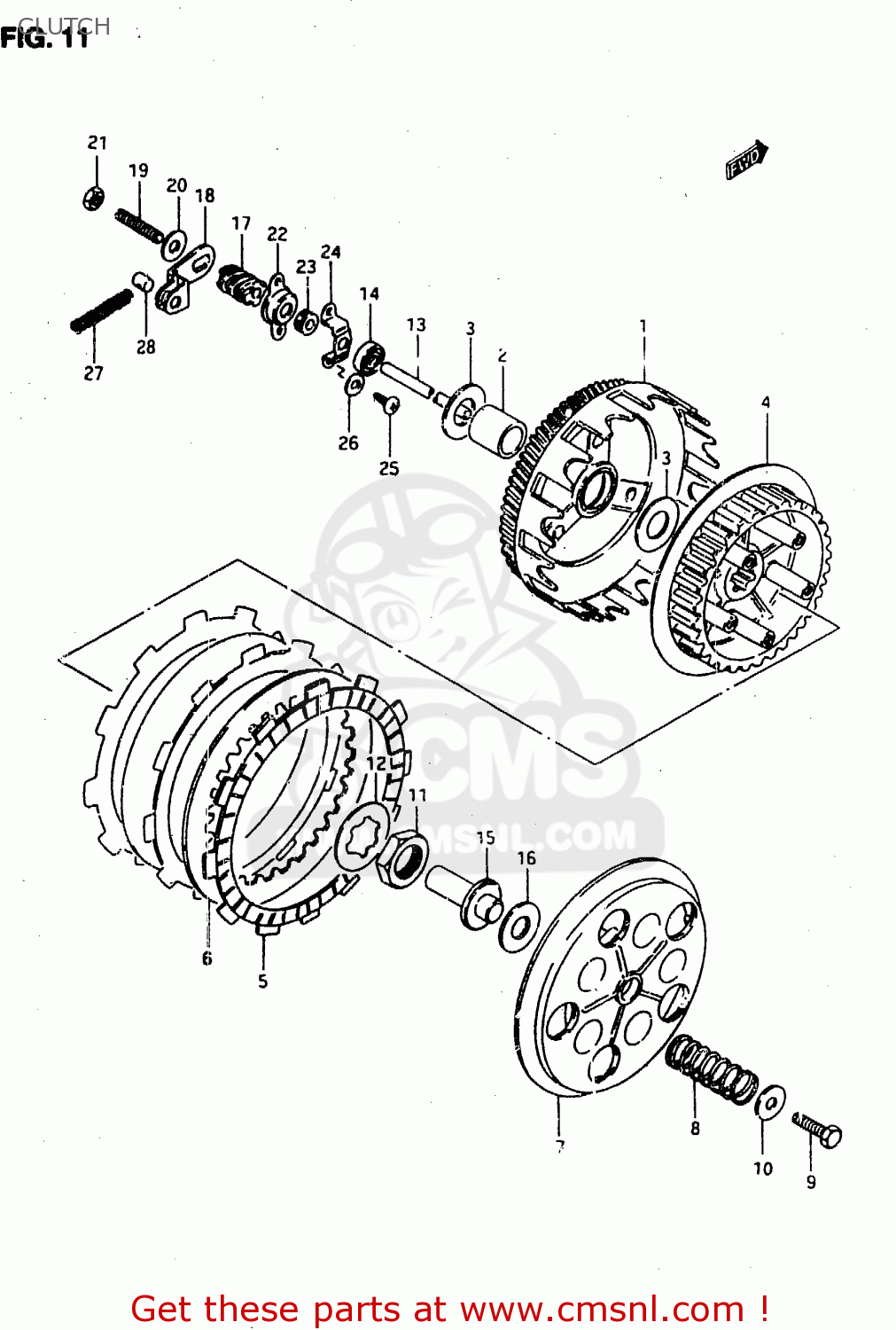

CLUTCH

ref

part #

description

quantity

1

2120004701
ref: 1

GEAR ASSY,PRI DRIVEN(NT:17/73)

€ 173.00

2

0918017049
ref: 2

SPACER(17X22X28.5)

€ 20.50

3

0821117282
ref: 3

WASHER

€ 3.00

4

2141146000
ref: 4

HUB,CLUTCH SLEEVE

€ 41.00

5

2144104710
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 10.00

6

2145119A00
ref: 6

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

7

2146206C00
ref: 7

DISC,CLUTCH PRESSURE

€ 19.50

8

0944015008
ref: 8

SPRING

€ 2.00

9

0910005002
ref: 9

BOLT(5X16)

€ 2.00

10

0916005003
ref: 10

WASHER (5.5X18X1)

€ 2.00

11

0914016014
ref: 11

NUT

€ 4.50

12

0916717002
ref: 12

WASHER,LOCK

€ 2.00

13

2311114101
ref: 13

ROD,CLUTCH PUSH

€ 9.00

14

0928505004
ref: 14

SEAL,OIL(5.5X16X8)

€ 12.00

15

2312139101
ref: 15

PIECE,CLUTCH PUSH

€ 14.00

16

0926310002
ref: 16

BEARING(10X22X2.8)

€ 8.50

17

2321136200
ref: 17

SCREW,CLUTCH RELEASE

€ 20.50

18

2321246A00
ref: 18

ARM,CLUTCH RELEASE

€ 13.50

19

0913406010
ref: 19

SCREW(6X25)

€ 3.00

20

0916006060
ref: 20

WASHER

€ 2.00

21

0914006023
ref: 21

NUT

€ 2.00

22

2324136201
ref: 22

COVER,CLUTCH RELEASE SCREW

€ 4.50

23

0928105001
ref: 23

SEAL,DUST(5.3X13X5)

€ 2.50

24

2324536200
ref: 24

HOLDER,DUST SEAL

€ 5.50

25

0311105123
ref: 25

TAPPING SCREW

€ 1.50

26

0832201057
ref: 26

WASHER

€ 2.50

27

0944008026
ref: 27

SPRING

€ 2.00

28

2322236A00
ref: 28

HOOK,CLUTCH RELEASE SCREW ARM

€ 5.50
