TAIL LAMP

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

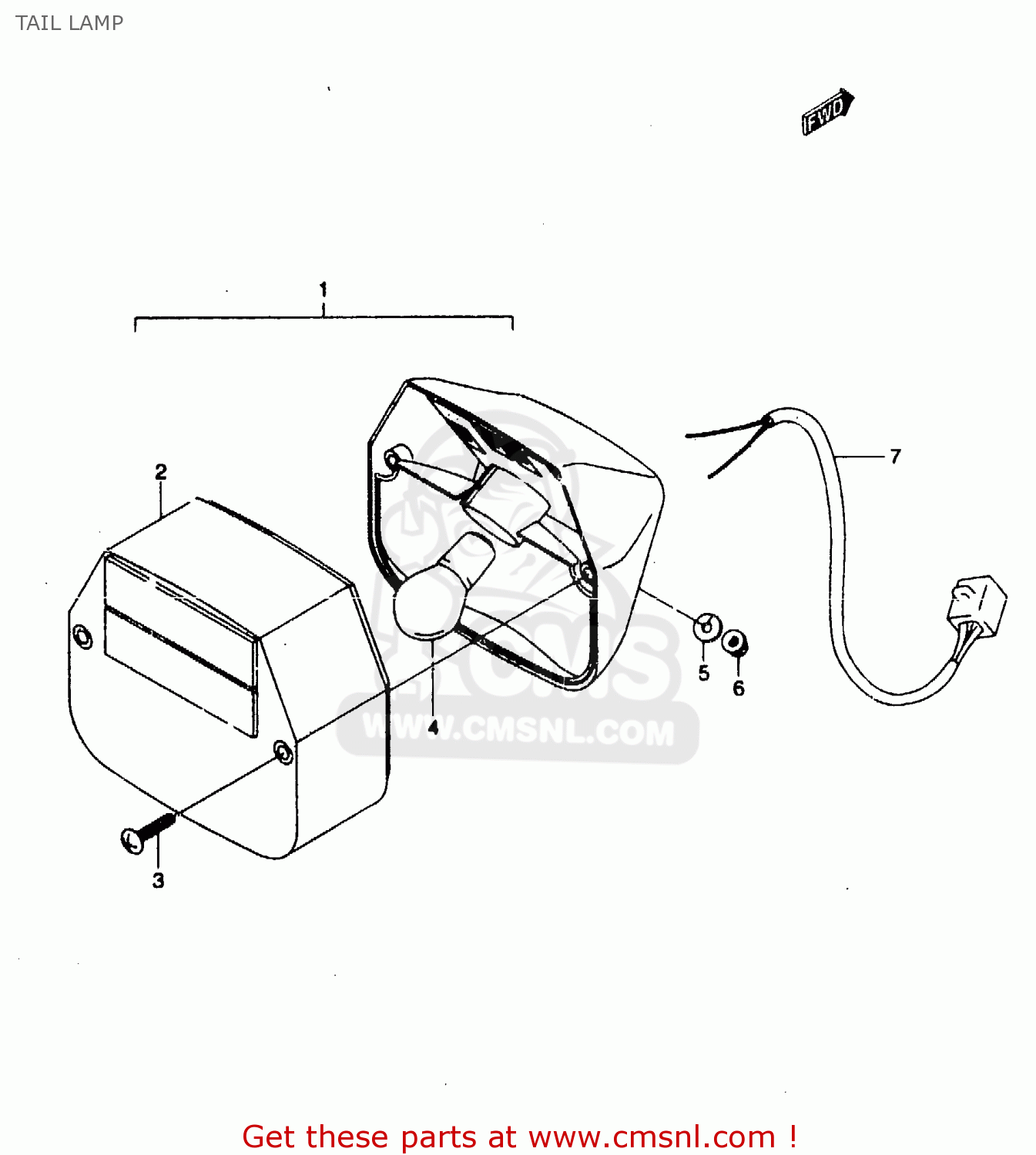

Tail lamp diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

TAIL LAMP RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

TAIL LAMP RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

prices are in EUR

ref

part #

description

quantity

1

3571003E00
ref: 1

LAMP ASSY, TAIL

€ 29.00

2

3571203E00
ref: 2

LENS

€ 10.50

3

3572503E00
ref: 3

SCREW

€ 1.50

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

D832291045
ref: 5

WASHER

€ 1.00

6

D831960045
ref: 6

NUT

€ 1.00

7

3662003E00
ref: 7

WIRE, TAIL LAMP

€ 6.50
