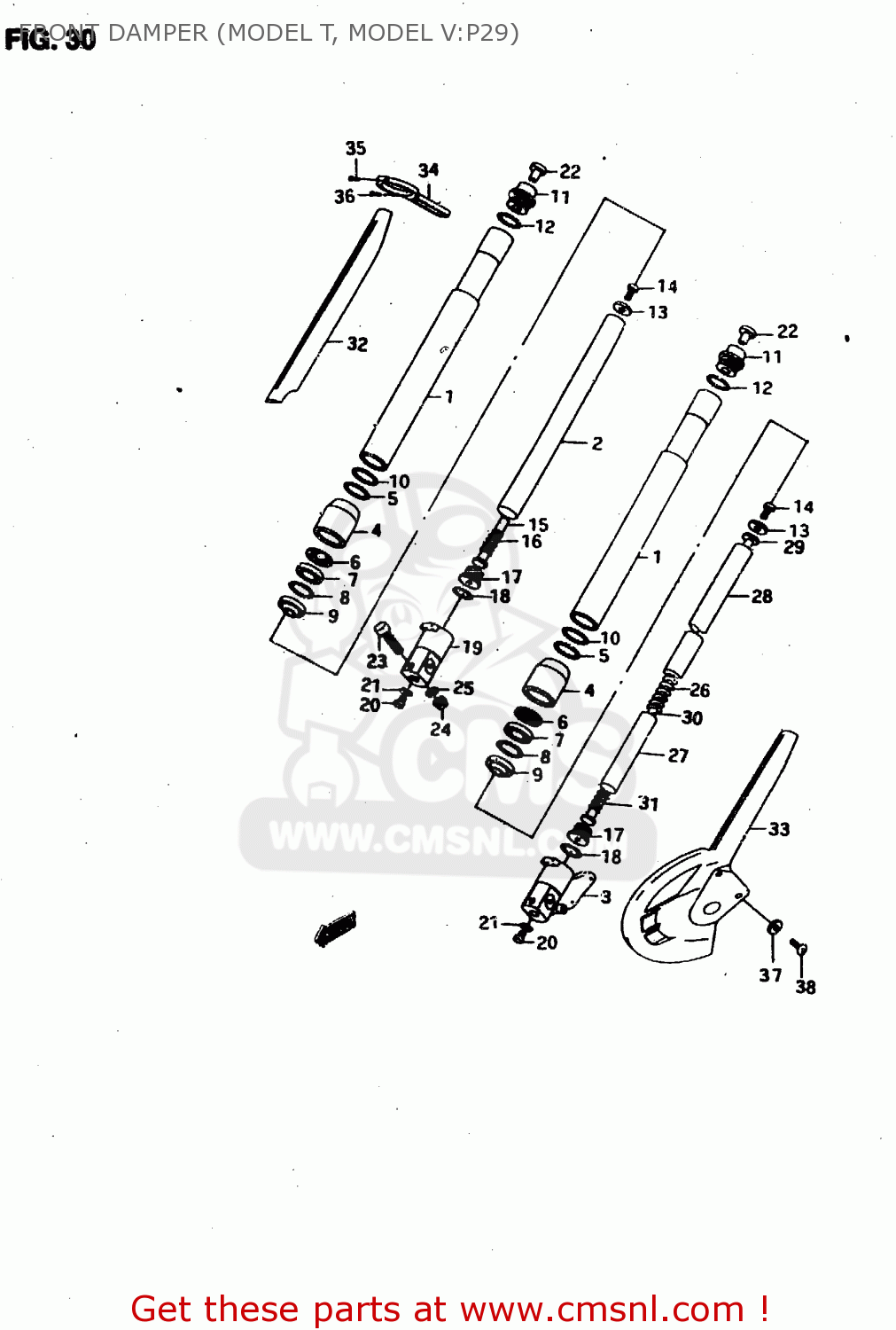

FRONT DAMPER (MODEL T, MODEL V:P29)

ref

part #

description

quantity

0

5110403E00
ref: 0

DAMPER ASSY LH/RH

€ 260.00

0

5110303E00
ref: 0

DAMPER ASSY, RH

€ 0.00

1

5121003E00
ref: 1

TUBE, OUTER

€ 119.50

2

5121100E20
ref: 2

TUBE, INNER RH

€ 97.00

3

5110400E20
ref: 3

BRACKET, AXLE LH

€ 110.00

4

5121200E20
ref: 4

CASE, SEAL

€ 18.50

5

5121300E20
ref: 5

O RING

€ 3.00

6

5121400E20
ref: 6

BUSH, GUIDE

€ 3.00

7

5115300E20
ref: 7

OIL SEAL

€ 8.00

8

5121500E20
ref: 8

O RING

€ 2.00

9

5121600E20
ref: 9

PLATE

€ 10.00

10

5121700E20
ref: 10

O RING

€ 1.50

11

5117900E20
ref: 11

RING

€ 24.50

12

5118100E20
ref: 12

O RING

€ 3.00

13

5131300E20
ref: 13

WASHER

€ 2.00

14

D710010258
ref: 14

BOLT

€ 1.50

15

5111003E00
ref: 15

CYLINDER

€ 10.00

16

5117700E20
ref: 16

SPRING

€ 0.00

17

5117800E20
ref: 17

BOLT

€ 18.00

18

5117900E20
ref: 18

RING

€ 24.50

19

5110300E20
ref: 19

BRACKET, AXLE RH

€ 76.00

20

D710708255
ref: 20

BOLT

€ 1.00

21

5110500E20
ref: 21

GASKET (NAS)

€ 1.00

22

5118900E20
ref: 22

CAP, FORK

€ 0.00

23

0910008E18
ref: 23

BOLT

€ 3.00

24

D831160088
ref: 24

NUT

€ 0.50

25

D832211088
ref: 25

WASHER

€ 3.00

26

5117103E00
ref: 26

SPRING, MAIN

€ 20.00

27

5111003E00
ref: 27

CYLINDER

€ 10.00

28

5131000E20
ref: 28

TUBE, INNER

€ 82.50

29

5131200E20
ref: 29

GUIDE, SPRING

€ 5.00

30

5111603E00
ref: 30

CYLINDER

€ 0.00

31

5117703E00
ref: 31

SPRING, REBOUND

€ 20.50

32

5120103E0030H
ref: 32

PROTECTOR, RH

€ 12.50

33

5120203E0030H
ref: 33

PROTECTOR, LH

€ 20.00

34

5162903E00
ref: 34

GUIDE, HOSE

€ 6.00

35

D31110E165
ref: 35

SCREW

€ 1.00

36

D31110E195
ref: 36

SCREW

€ 3.00

37

0832201063
ref: 37

WASHER

€ 2.00

38

0211206123
ref: 38

SCREW

€ 1.50

all assemblies
