MAGNETO

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

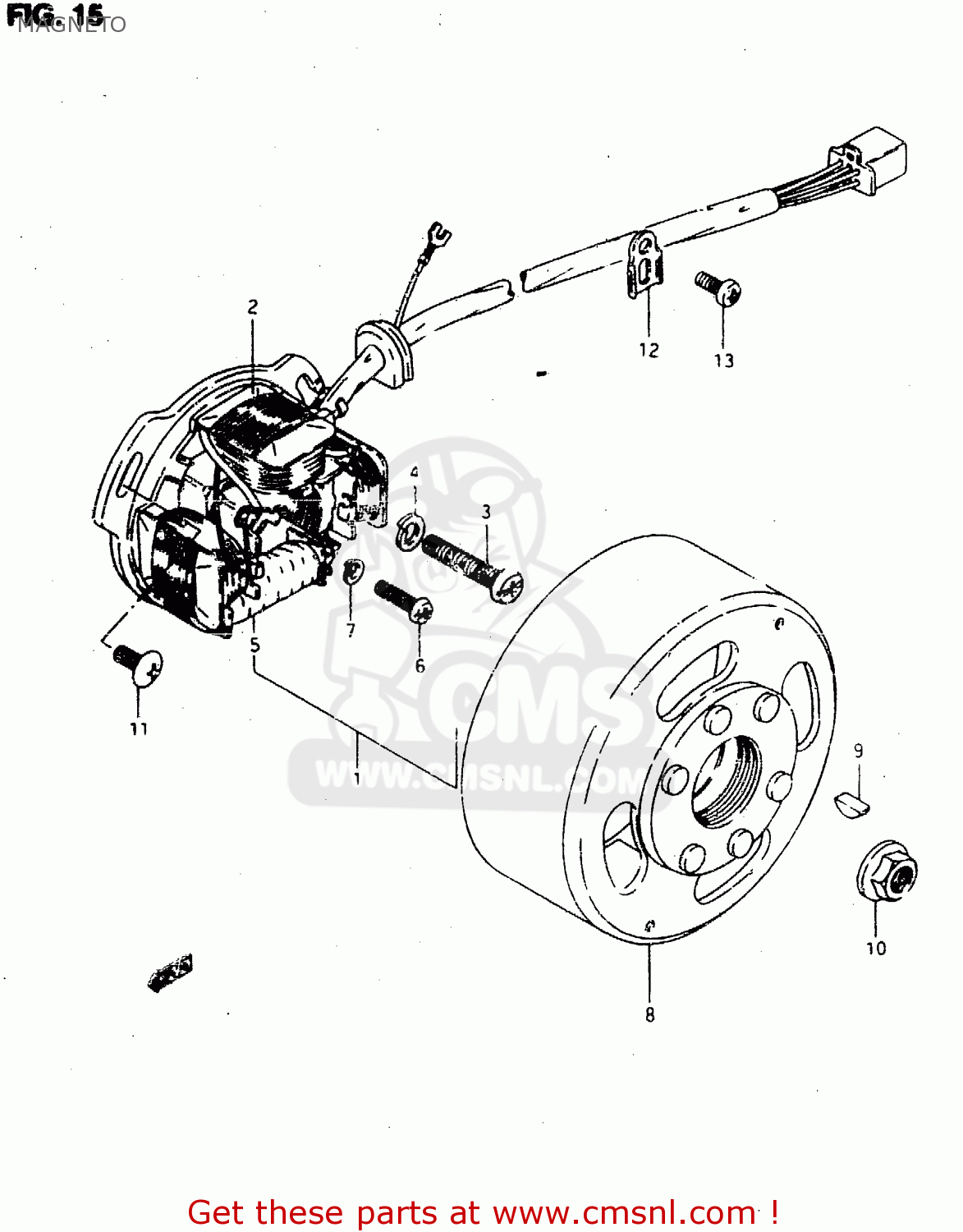

Magneto diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

prices are in EUR

ref

part #

description

quantity

3210113610
ref: 1

STATOR ASSY

€ 275.50

3212048720
ref: 2

COIL,STARTER

€ 132.50

0211206307
ref: 3

SCREW

€ 2.50

0832101067
ref: 4

WASHER,LOCK

€ 2.50

3214035410
ref: 5

COIL,PRIMARY

€ 58.50

0211204163
ref: 6

SCREW 4X16

€ 1.00

0832101043
ref: 7

WASHER,LOCK

€ 2.00

3210213610
ref: 8

ROTOR

€ 202.50

0834131039
ref: 9

KEY

€ 2.00

0831610103
ref: 10

NUT

€ 2.00

0211205123
ref: 11

SCREW

€ 1.50

3149745000
ref: 12

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205083
ref: 13

SCREW

€ 2.00

all assemblies
