HEADLAMP

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

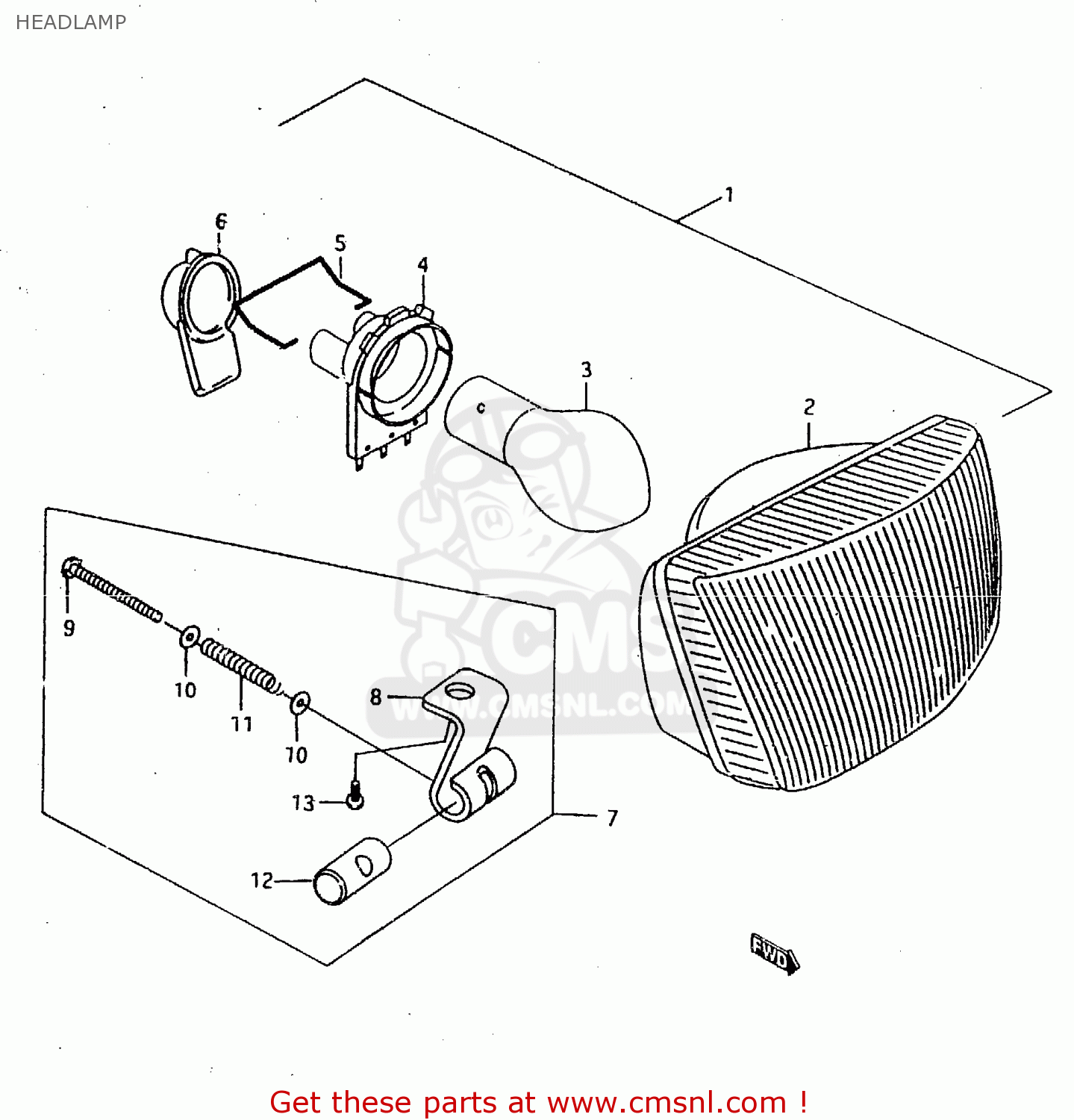

Headlamp diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

prices are in EUR

ref

part #

description

quantity

3510003E00
ref: 1
P29, P53

HEADLAMP ASSY

€ 60.00

3510003E10
ref: 1
P4

HEADLAMP

€ 24.00

3512003E00
ref: 2
P29, P53

UNIT

€ 56.50

3512003E10
ref: 2
P4

UNIT

€ 29.50

0947100E01
ref: 3
P29, P53

BULB (12V, 25/25W)

€ 0.00

0947100E10
ref: 3
P4

BULB (12V, 15W)

€ 2.50

3517100E10
ref: 4
P29, P53

SOCKET

€ 9.00

3517100E20
ref: 4
P4

SOCKET

€ 7.50

3517400E10
ref: 5

SOCKET SPRING

€ 3.00

3517200E10
ref: 6

COVER, SOCKET

€ 8.00

3515003E00
ref: 7

BRACKET SET

€ 5.50

3515503E00
ref: 8

BRACKET

€ 2.50

D211404405
ref: 9

BOLT

€ 0.00

D832211048
ref: 10

WASHER

€ 1.00

3515400E00
ref: 11

SPRING

€ 5.50

3515200E10
ref: 12

NUT

€ 2.50

0211205083
ref: 13

SCREW

€ 2.00
