OIL TANK

RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

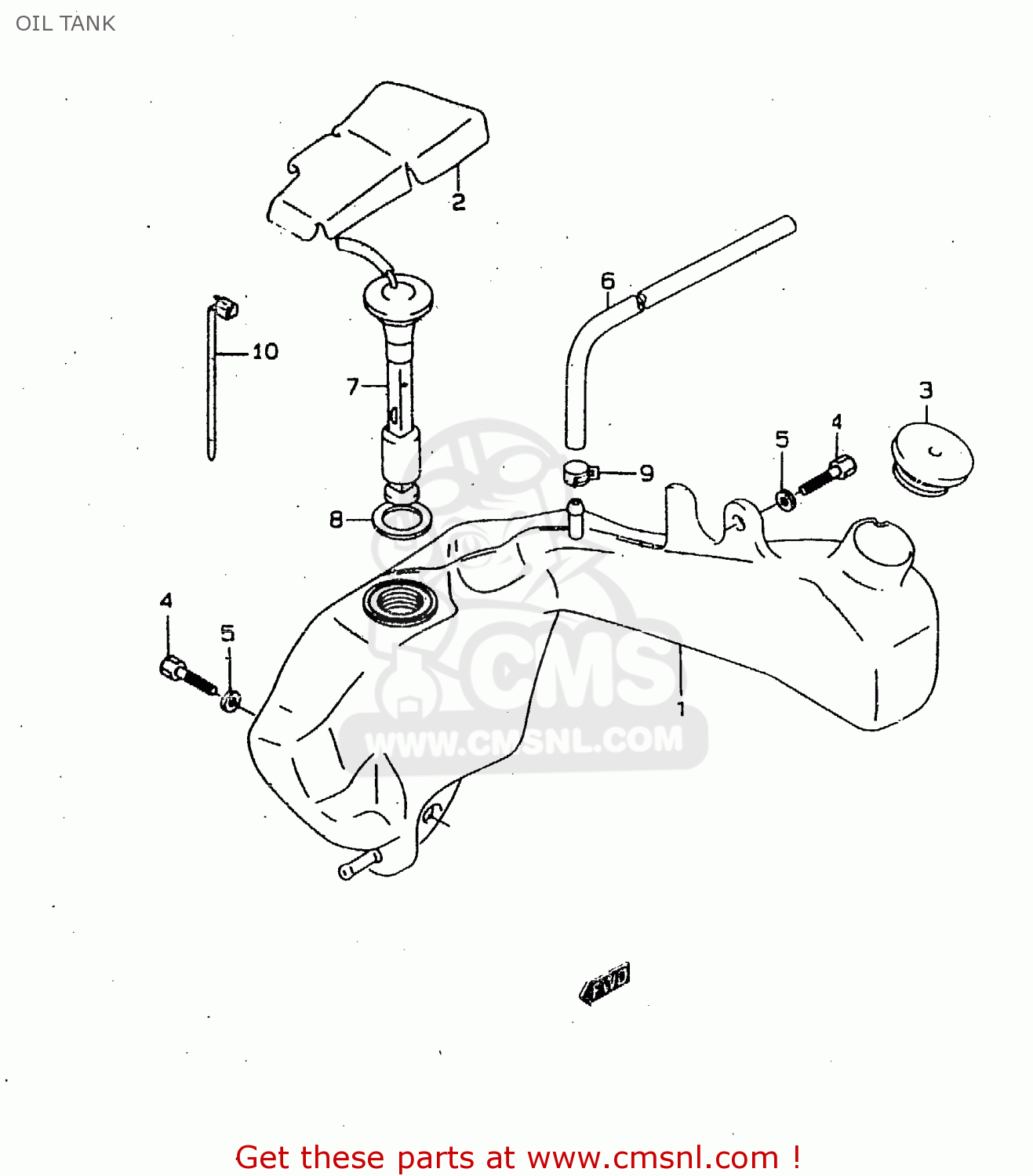

Oil tank diagram RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

OIL TANK RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

OIL TANK RMX50 1997 (V) FRANCE PORTUGAL SPAIN (E04 E29 E53)

prices are in EUR

ref

part #

description

quantity

1

4461103D02
ref: 1

TANK,OIL

€ 52.00

2

4469303E00
ref: 2

SHIELD, OIL TANK

€ 17.50

3

4465120A00
ref: 3

CAP,OIL TANK

€ 4.00

4

0713006163
ref: 4

BOLT,OIL FILLE

€ 3.00

5

0916006109
ref: 5

WASHER(6.5X18X1.6)

€ 2.00

6

0935270103600
ref: 6

HOSE(7X10.2X600)

€ 8.00

7

3788003D00
ref: 7

SWITCH ASSY,OIL LEVEL

€ 38.50

8

4464331000
ref: 8

GASKET (NAS)

€ 2.50

9

0940109401
ref: 9

CLAMP

€ 2.50

10

0940714403
ref: 10

CLAMP(L:125)

€ 2.50
