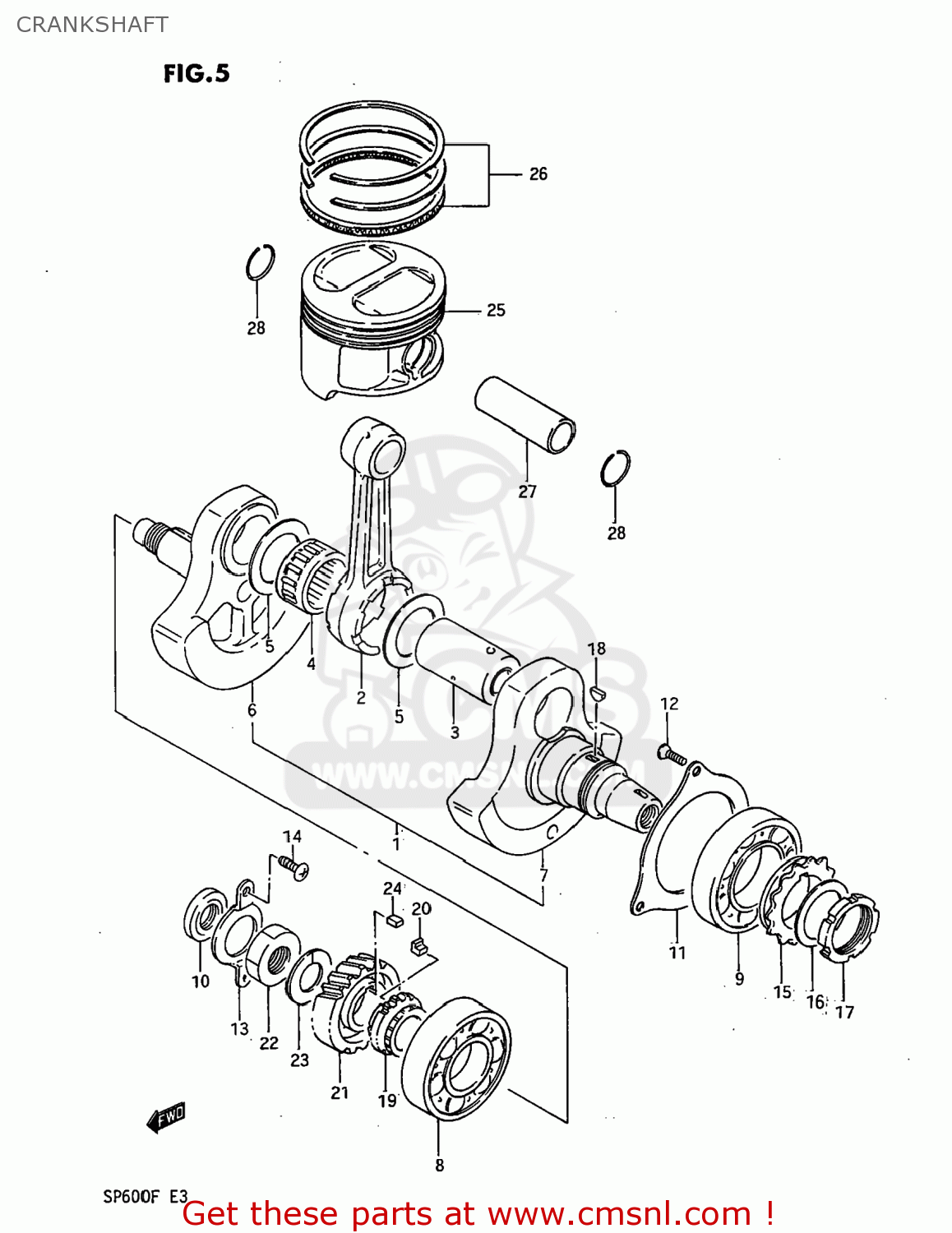

CRANKSHAFT

ref

part #

description

quantity

1

1220014A02
ref: 1
12200-14A03

CRANKSHAFT ASSEMBLY

€ 669.50

2

1216114A10
ref: 2
12161-14A12

CONNECTING ROD

€ 165.00

3

1221014A01
ref: 3

PIN,CRANK

€ 48.00

4

0926337002
ref: 4
09263-37004-0B0

BEARING

€ 33.00

5

0916037006
ref: 5

WASHER(37X55X1)

€ 8.50

6

1222114A01
ref: 6

CRANKSHAFT,RIGHT

€ 39.50

7

1226114A02
ref: 7

CRANKSHAFT,LEFT

€ 0.00

8

0926235009
ref: 8

BEARING(35X80X21)

€ 68.50

9

0926245003
ref: 9
09262-45011

BEARING

€ 50.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

1254137400
ref: 11

RETAINER,CRANKSHAFT BEARING,L

€ 13.50

12

0212206168
ref: 12
02122-06167

SCREW

€ 2.00

13

1254837400
ref: 13

RETAINER,CRANKSHAFT BEARING,R

€ 6.50

14

0211205088
ref: 14
02112-05087

SCREW

€ 2.00

15

1266214A10
ref: 15

SPROCKET,BALANCER DRIVE

€ 30.50

16

0916440003
ref: 16

WASHER

€ 3.50

17

1266437400
ref: 17
12664-44B00

NUT,FLYWHEEL

€ 26.00

18

0834131039
ref: 18

KEY

€ 2.00

19

1273137400
ref: 19

SPROCKET,CAM CHAIN DRIVE

€ 91.00

20

1274932400
ref: 20

KEY,SPROCKET

€ 13.50

21

2111114A00
ref: 21

GEAR,PRIMARY DRIVE

€ 49.50

22

0914020008
ref: 22
09140-20013

NUT (20MM)

€ 4.00

23

0916420003
ref: 23

WASHER

€ 2.50

24

0942107002
ref: 24

KEY

€ 4.00

25-1

1211114A01
ref: 25-1
12111-15A00

PISTON

€ 113.00

25-2

1211114A01050
ref: 25-2
12103-15810-050

PISTON (OS:0.5)

€ 164.50

25-3

1211114A01100
ref: 25-3
12103-15810-100

PISTON (OS:1.0)

€ 152.50

26-1

1214014A31
ref: 26-1
12140-14A32

RING SET,PISTON

€ 51.00

26-2

1214014A31050
ref: 26-2

RING SET,PISTON (OS:0.5)

€ 61.00

26-3

1214014A31100
ref: 26-3

RING SET,PISTON

€ 33.00

27

1215114A01
ref: 27

PIN,PISTON

€ 18.00

28

0938123003
ref: 28

CIRCLIP

€ 1.50
