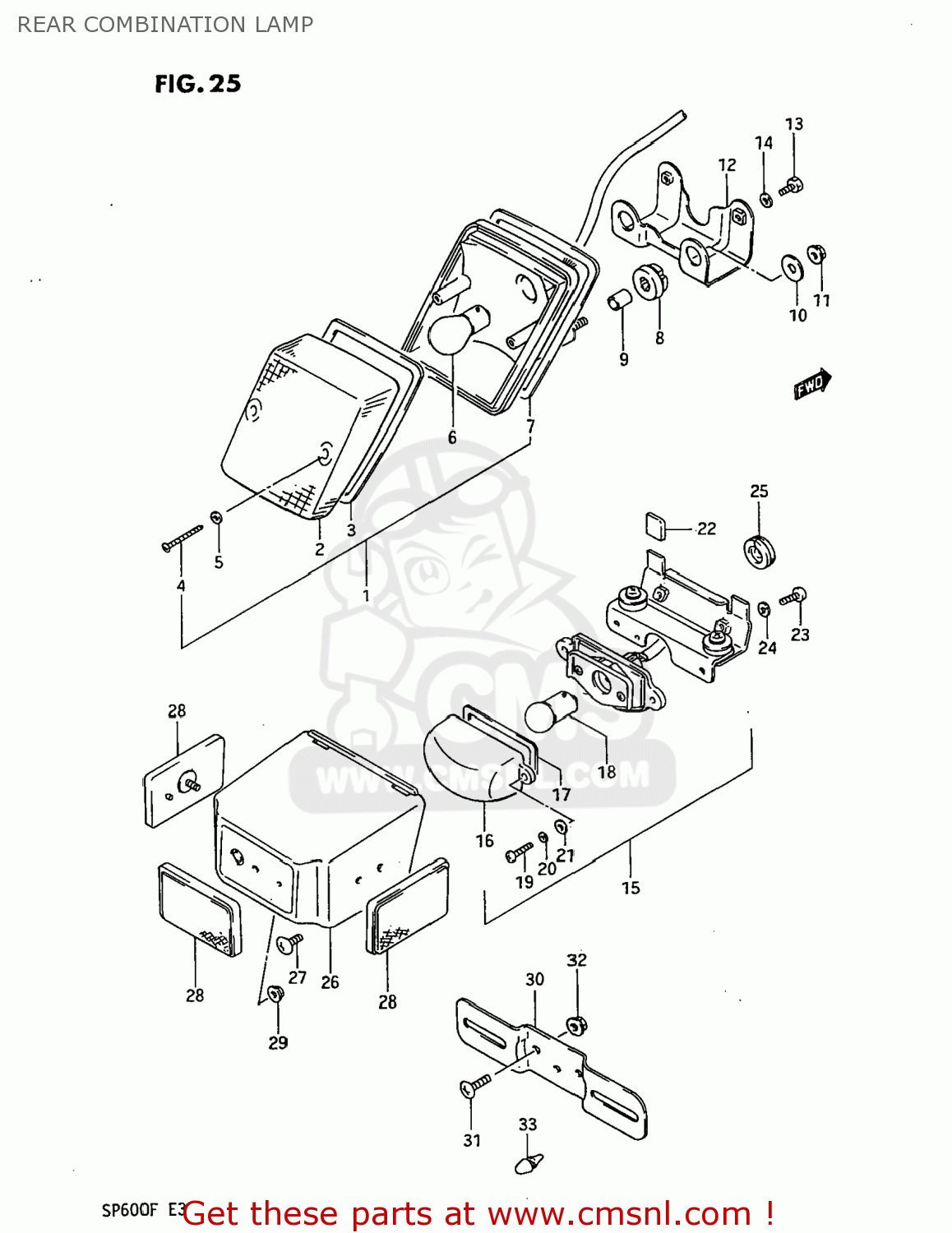

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571014A30
ref: 1
35710-28A20-999

LAMP ASSEMBLY,REAR COMBINATION

€ 159.00

2

3571214A00
ref: 2

LENS,RR COMBI

€ 48.00

3

3571314A00
ref: 3
35713-31D00

GASKET,REAR COMBINATION LAMP

€ 9.50

4

0321104258
ref: 4
03211-0425B

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112084
ref: 6

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

7

3573314A00
ref: 7

GASKET

€ 0.00

8

0932009018
ref: 8

CUSHION

€ 2.00

9

0918006030
ref: 9
09180-06310

SPACER (6.8X10X10)

€ 2.00

10

0916006027
ref: 10
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

11

0831011066
ref: 11
08310-0006A

NUT

€ 2.00

12

3572614A00
ref: 12

BRACKET,REAR COMBINATION LAMP

€ 7.00

13

0110706126
ref: 13
01500-0612A

BOLT

€ 2.00

14

0832121066
ref: 14
08321-0106A

WASHER,LOCK

€ 2.00

15

3591014A00
ref: 15

LAMP ASSEMBLY,LICENSE

€ 71.00

16

3591200A10
ref: 16

LENS,LICENSE LAMP

€ 16.00

17

3591304A00
ref: 17

GASKET,LICESE LAMP (NAS)

€ 4.00

18

0947112037
ref: 18
09471-12141

BULB

€ 7.00

19

0211204168
ref: 19
02112-0416A

SCREW

€ 1.00

20

0832121048
ref: 20
08321-0104A

LOCK WASHER

€ 2.00

21

0832221048
ref: 21
08322-01047

WASHER

€ 2.00

22

3593614A00
ref: 22

CAP,LICENSE

€ 0.00

23

0211206206
ref: 23
02112-0620A

SCREW

€ 2.00

24

0832121066
ref: 24
08321-0106A

WASHER,LOCK

€ 2.00

25

0930807011
ref: 25

GROMMET

€ 3.50

26

3591714A30
ref: 26

COVER,LICENSE LAMP

€ 33.50

27

0214205165
ref: 27
02142-0516A

SCREW

€ 2.50

28

3597017300
ref: 28

REFLEX REFLECTOR,RR

€ 16.50

29

0831626055
ref: 29
08316-2005A

NUT

€ 2.00

30

3592744430
ref: 30

BRACKET,REAR LICENSE

€ 0.00

31

0214206165
ref: 31
02142-0616A

SCREW

€ 2.50

32

0831616066
ref: 32
08316-1006B

NUT

€ 2.50

33

0932106023
ref: 33

CUSHION

€ 2.00

all assemblies
